BluePot

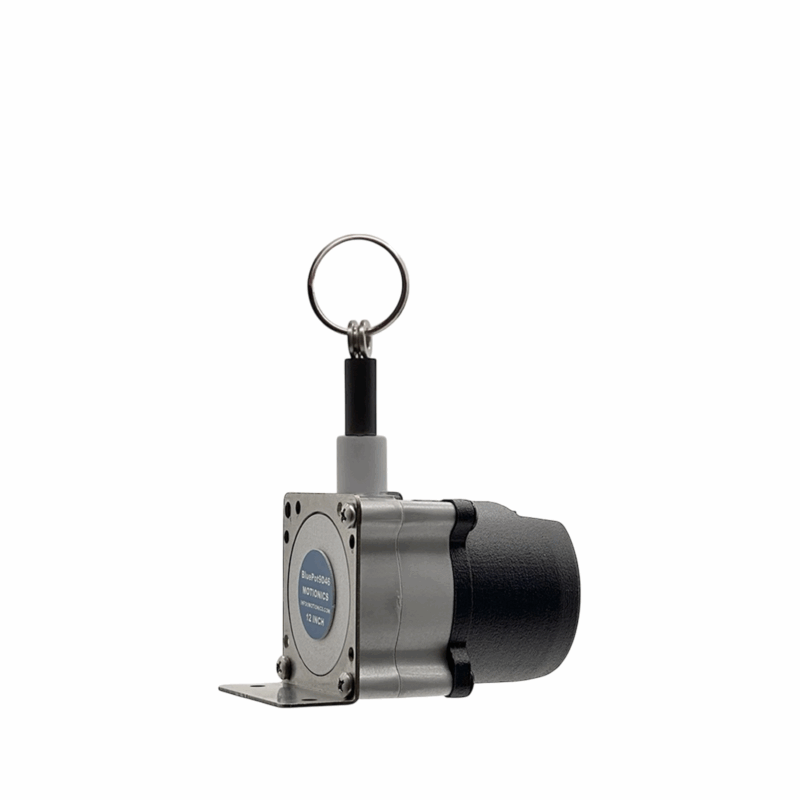

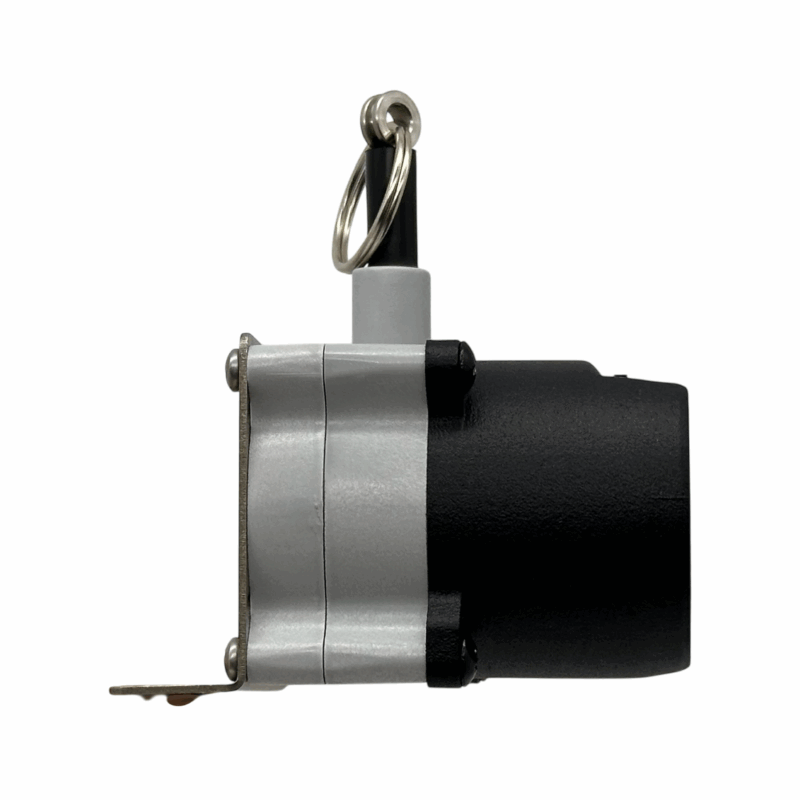

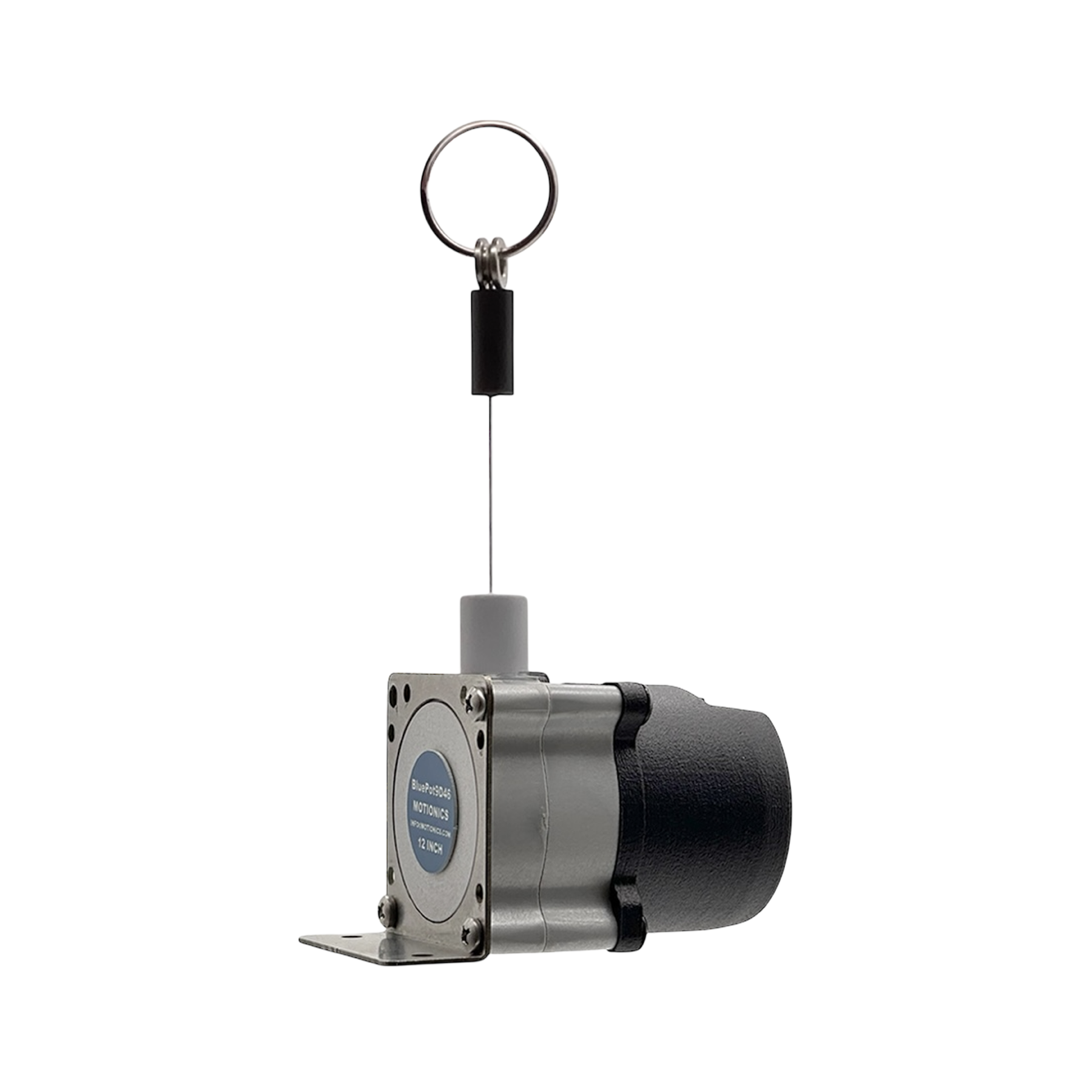

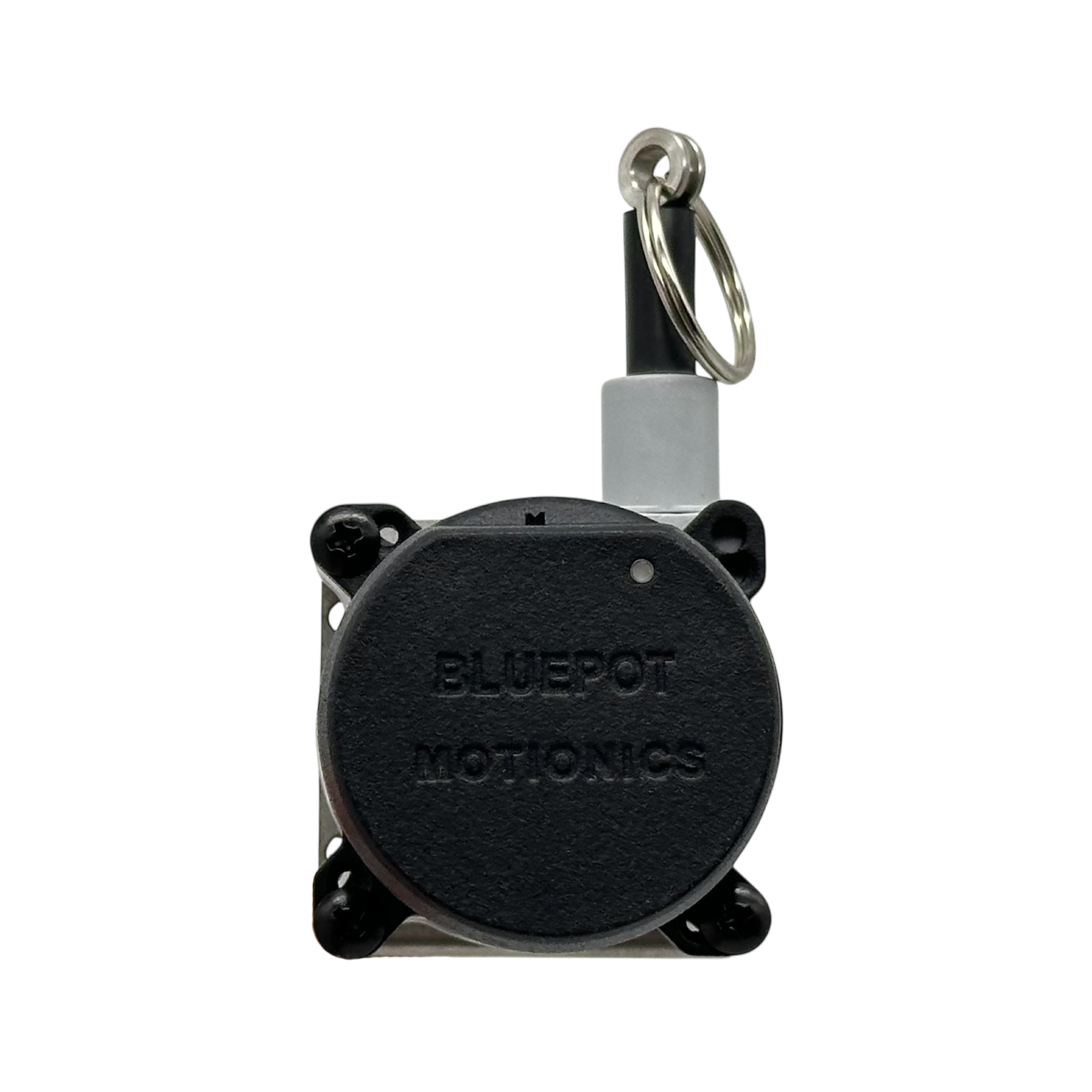

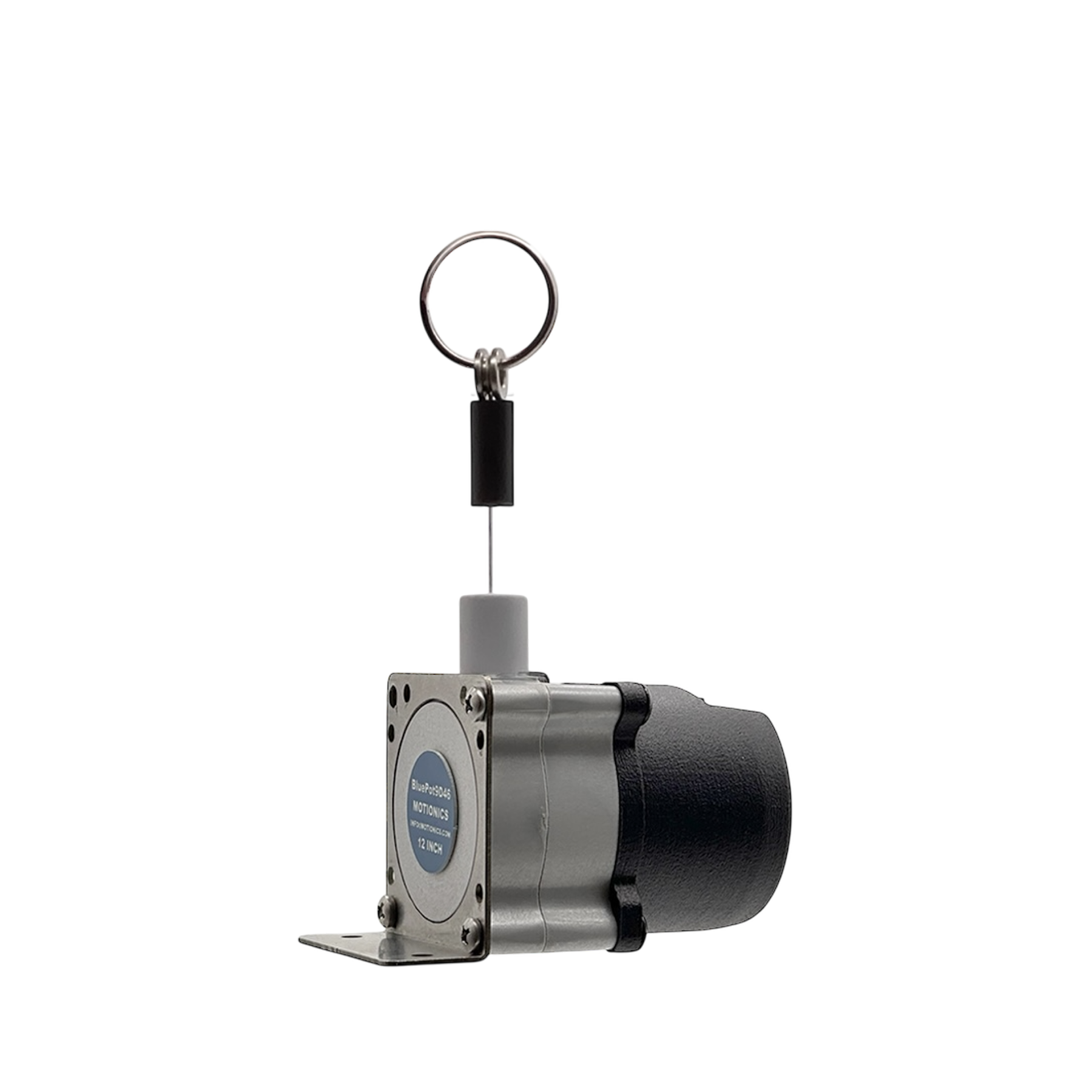

BluePot is a cable actuated position sensor with integrated Bluetooth transmitter at the back. It integrates a high-accuracy position sensor with Bluetooth Low Energy data transmitter. It operates on a rechargeable Li-Po battery and comes in four models to cover different measurement ranges.

BluePot sends readings to iPhone/iPad/Android without the hassle of data cables, making data reading fast, safe, and error-free, especially in hard-to-reach places. Data can be remotely viewed in a large digital readout or an analog probe meter on a mobile device.

With a more affordable price, users can still benefit from the convenience of Bluetooth data transmission.

Description

BluePot is a cable actuated position sensor with integrated Bluetooth transmitter at the back. It integrates a high-accuracy position sensor with Bluetooth Low Energy data transmitter. It operates on a rechargeable Li-Po battery and comes in four models to cover different measurement ranges.

BluePot sends readings to iPhone/iPad/Android without the hassle of data cables, making data reading fast, safe, and error-free, especially in hard-to-reach places. Data can be remotely viewed in a large digital readout or an analog probe meter on a mobile device.

With a more affordable price, users can still benefit from the convenience of Bluetooth data transmission.

BluePot works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.

Cloud Remote Reading Option

></a></p>
<p><a href=

BluePot also works with our MultiGage Cloud application, a browser-based IoT (Internet of Things) platform for real-world data tracking from anywhere.

By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser.

MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with different analytic tools such as tree maps, map view, and summary view. MultiGage Cloud is a subscription-based platform.


Specifications

Model BPT-SP-4 BPT-SP-12 BPT-SP-25 BPT-SP-50
Measurement Range 4.75" / 120mm 12.5" / 317mm 25" / 635mm 50" / 1270mm
Accuracy ±1% ±0.25% ±0.25% ±0.25%
Max Acceleration 15g
Repeatability Repeatability ±0.05%
Wireless Data Rate Wireless Data Rate 10Hz
Transmisson Range 66ft / 20m (indoors) / 100ft / 30m (outdoors)
Battery life Battery life 60hrs
Working temprature -0.4° to 122°F
Charging Charging 5 VDC USB

Software

iOS

MultiGage for iOS allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone.

MultiGage Reader App

Rotor Runout is an app that works with a wireless dial indicator and a wireless angle sensor for rotor runout testing.

Runout App

Pile Load Test is an app that works with wireless dial indicators and wireless load gauges for wireless pile load testing.

Apple Watch Compatible

  • Companion Apple Watch app for MultiGage Reader on iPhone
  • View wireless measurement device readings on your wrist.
  • Start/stop continuous data recording or capture single reading by tapping on Apple Watch


Android

MultiGage Android offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.


Windows

MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.


MultiGage Cloud

MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.


LabVIEW

LabVIEW is also in the list of compatible platforms. We provide Dial Reading VI covering device scanning, connection and data collection, and you can build your application on top of it.


Included

What’s in the box:

  • Bluetooth string BluePot x1
  • USB Charging Cable x1
  • USB Power Adapter x1
  • User Manual x1
  • BLE Dongle (Optional)
    *Required for PC use
  • Protective Case (Optional)
    *If you include a protective case, the case color will be sent randomly
  • Extended Warranty (Optional)

Documents

BlueDial-LT Brochure Brochure

BlueDial-LT User Manual User Manual

Full Product Catalog No.111 Full Product Catalog

MultiGage Brochure MultiGage Brochure

MultiGage BrochureBluePot Dimensions
