Wireless Laser Measure

The Bosch GLM50 / GLM165, Leica DISTO D2, and Leica DISTO E7100i are highly accurate laser distance measurement tools that are engineered for accuracy, durability, and ease of use. Our products offer cutting-edge features such as Bluetooth connectivity for seamless data transfer and compatibility with our exclusive MultiGage software. With us, you’re not just buying a measurement device; you’re gaining a partner in precision. Unlike the alternatives available through third-party stores, our tools come with the promise of unmatched precision, robust construction, comprehensive customer support, ensuring you invest in tools that last and perform; all at 1/4 of the price.

Description

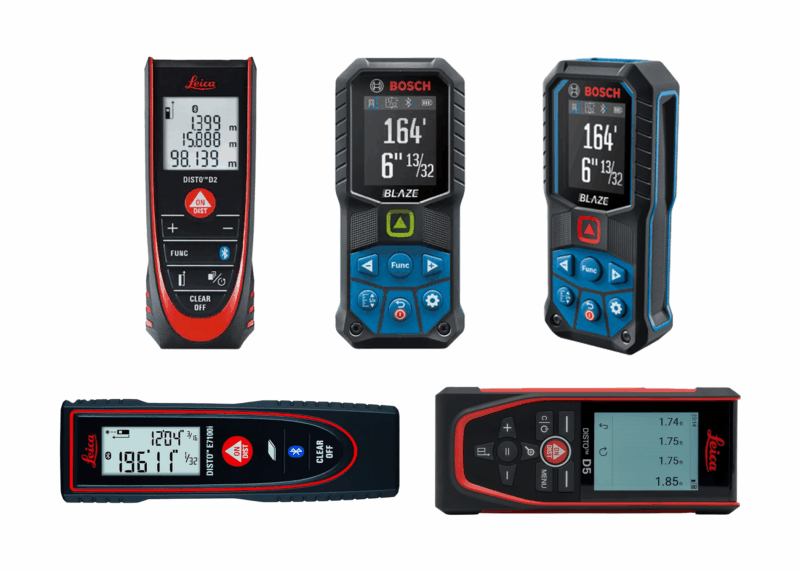

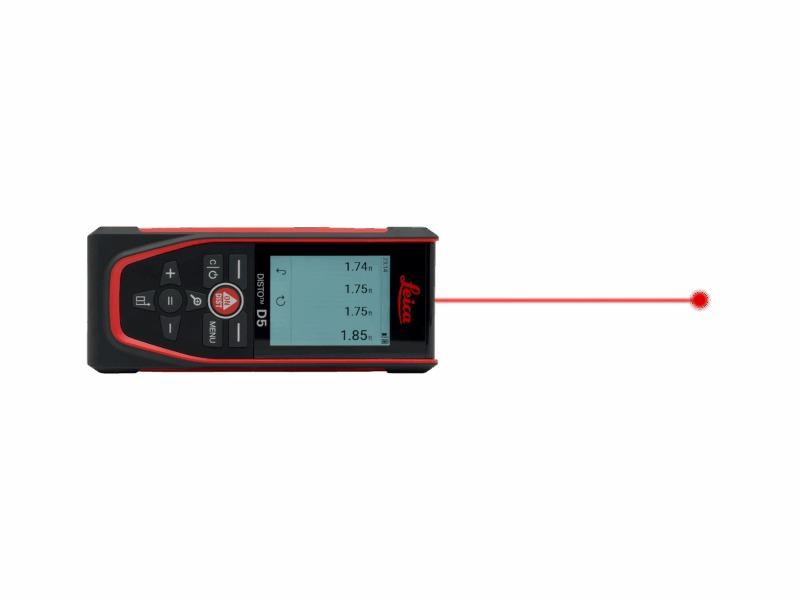

The Bosch GLM50 / GLM165, Leica DISTO D2, and Leica DISTO E7100i are compact pocket sized yet highly accurate laser distance measurers. They measure distances from up to 165ft to within 1/8". Thanks to its built-in Bluetooth Low Energy technology, laser measurement readings can be easily picked up wirelessly in Motionics apps/software on iPhone, iPad, Android, and Windows PC. When working together with other measurement devices in applications such as Benkelman tests, GLM50 provides accurate coordinate reference and greatly facilitates the test process.

Our powerful measurement reading software, MultiGage, makes this laser measure a more effective tool, allowing the user to read measurements from multiple devices at once, either continuously or in single capture mode with the press of a button. Additionally, there are many more innovative features in the app, such as an analog probe meter, cloud data streaming, a custom calculator, and so on, to make dimensional measurement faster and easier.

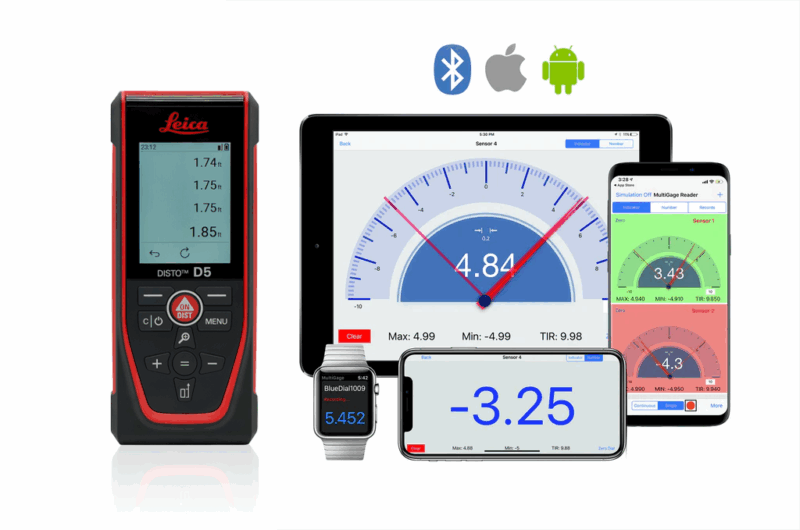

Our wireless laser measure works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.

Cloud Remote Reading Option

></a></p>
<p><a href=

The wireless laser measure also works with our MultiGage Cloud application, a browser-based IoT (Internet of Things) platform for real-world data tracking from anywhere.

By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser.

MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with different analytic tools such as treemaps, map view, and summary view. MultiGage Cloud is a subscription-based platform.


Specifications

Wireless Laser Measure DISTO D2 DISTO E7100i GLM165-27C GLM165-27CG
Measurement Range 330 ft 200 ft 6 – 197" / 0.15 – 5m
Resolution ±1/32" / 0.5mm
Accuracy ±1/16" / 1.5mm
Wireless Data Range 2Hz
Transmission Range 33ft / 10m 33 ft / 10m
Dimensions 4.57 x 1.73 x 1.02 in 4.72 x 1.46 x 0.91 in 4.2 x 1.8 x 0.9 in 4.2 x 1.8 x 0.9 in
Working Temperature 14 to 122°F 14 to 113°F
Battery 2x AAA 2x AAA
IP Rating IP54 IP64
Laser Beam Color Red Green (brighter than red)

Note: GLM165-27CGL is also a compatible laser device.


Software

iOS

MultiGage for iOS allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone.

MultiGage Reader App

Android

MultiGage Android offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.

Windows

MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.

MultiGage Cloud

MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.


Included

  • Bluetooth Laser Measure x1
  • User Manual x1
  • BLE Dongle (Optional)
    *Required for PC use

Documents

WLM Brochure Brochure

WLM Brochure User Guide

Full Product Catalog No.111 Full Product Catalog

MultiGage Brochure MultiGage Brochure

MultiGage Brochure MultiGage Cloud Brochure
