Description
Motionics Wireless Pile Load Test Kit measures pile deflection under different load conditions with BlueDial Bluetooth dial indicators, and either a BluePSI Bluetooth pressure sensor or a Bluetooth load gage on an iPad or Windows PC.
Multiple BlueDials (up to 6 on iPad, and more on a PC) are attached to the test pile to measure movements during load application and removal. The Bluetooth pressure sensor is mounted on the hydraulic pump to monitor load change, or a wireless force gauge is used. Using the iPad app or the PC software, the user then pairs with the BlueDials and the BluePSI. Readings from all wireless gages will be synced and updated in the software.
The user then opens the Pile Load Test app on an Apple iPad (or MultiGage Reader on a Windows PC) and pairs with the BlueDials and the BluePSI/Bluetooth load gage. Readings from all wireless gages will be synced and updated in the software in real time.
If you have a custom load measurement requirement for your application, be sure to contact us and we can create a custom solution for you.
Not only can you connect to the devices wirelessly through Bluetooth within the transmission range, but you can also use our IoT platform, MultiGage Cloud, to monitor real-world pressure readings from anywhere.
Bluetooth Dial Indicator BlueDial
- Measurement Range: 2" / 50mm
- Resolution: 0.0005" / 0.01mm
- Bluetooth Low Energy Wireless Connection
- Wireless Data Transmission Interval: 0.1s
- Wireless Data Transmission Range: up to 66ft / 20m (indoors) / 100ft / 30m (outdoors)
- Working Temperature: 32 to 122°F
- Indicator Battery: CR2032
- Bluetooth Transmitter Battery: 400mAh rechargeable

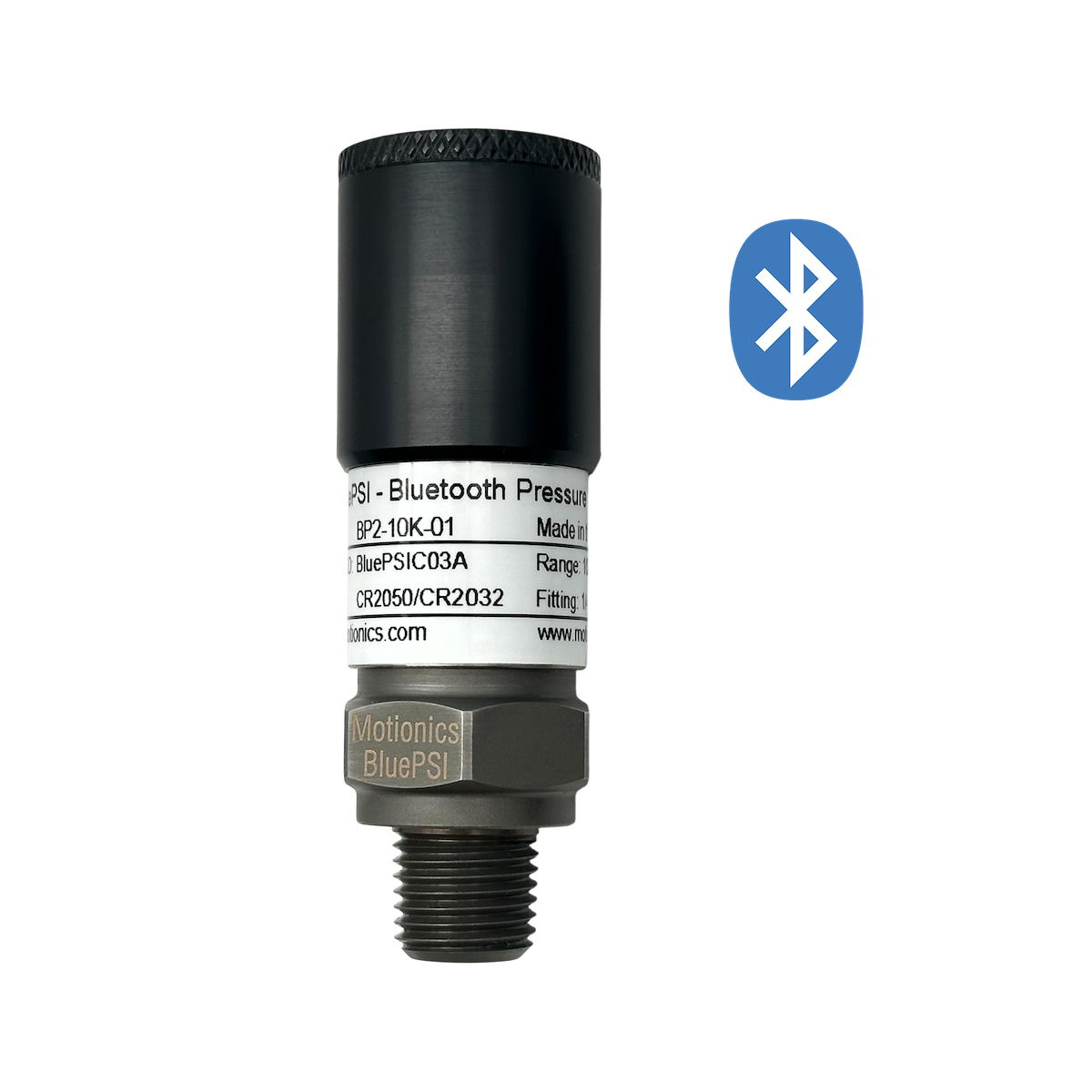

Bluetooth Pressure Sensor BluePSI
- Measurement Range: 0-5000psi (more options available)
- Accuracy: ±0.25%FS
- Bluetooth 4.0 Wireless Connection
- Wireless Data Transmission Interval: 5s (more options available)
- Wireless Transmission Range: up to 66ft / 20m
- Working Temperature: -4 to 185 °F
- Battery: CR2050
- Pressure Port: ¼-18 NPT (more options available)
Bluetooth Load Gages
- Capacity: 6.5te/14,300lb (dynamometer)/5-1,000te (depends on model, compression gage)/1000kg-500te (depends on model, tension gage) (more options available)
- Resolution: 0.001te/2lb (dynamometer)/0.001-0.5te (depends on model, compression gage)/0.5kg-0.1te (depends on model, tension gage) (more options available)
- Accuracy: +/- 0.2% of full scale (dynamometer)/±0.1% full scale (compression, tension gage)
- Wireless Data Rate: 10Hz
- Wireless Transmission Range: 100m/328ft
- Working Temperature: -10 – 50 °C
- IP Rating: IP67
- Battery: 4x AA
- Battery Life: 500hr
What’s in the box:
- Bluetooth Dial Indicator (up to 6)
- Bluetooth Pressure Sensor BluePSI
- USB Charging Cable
- USB Power Adapter

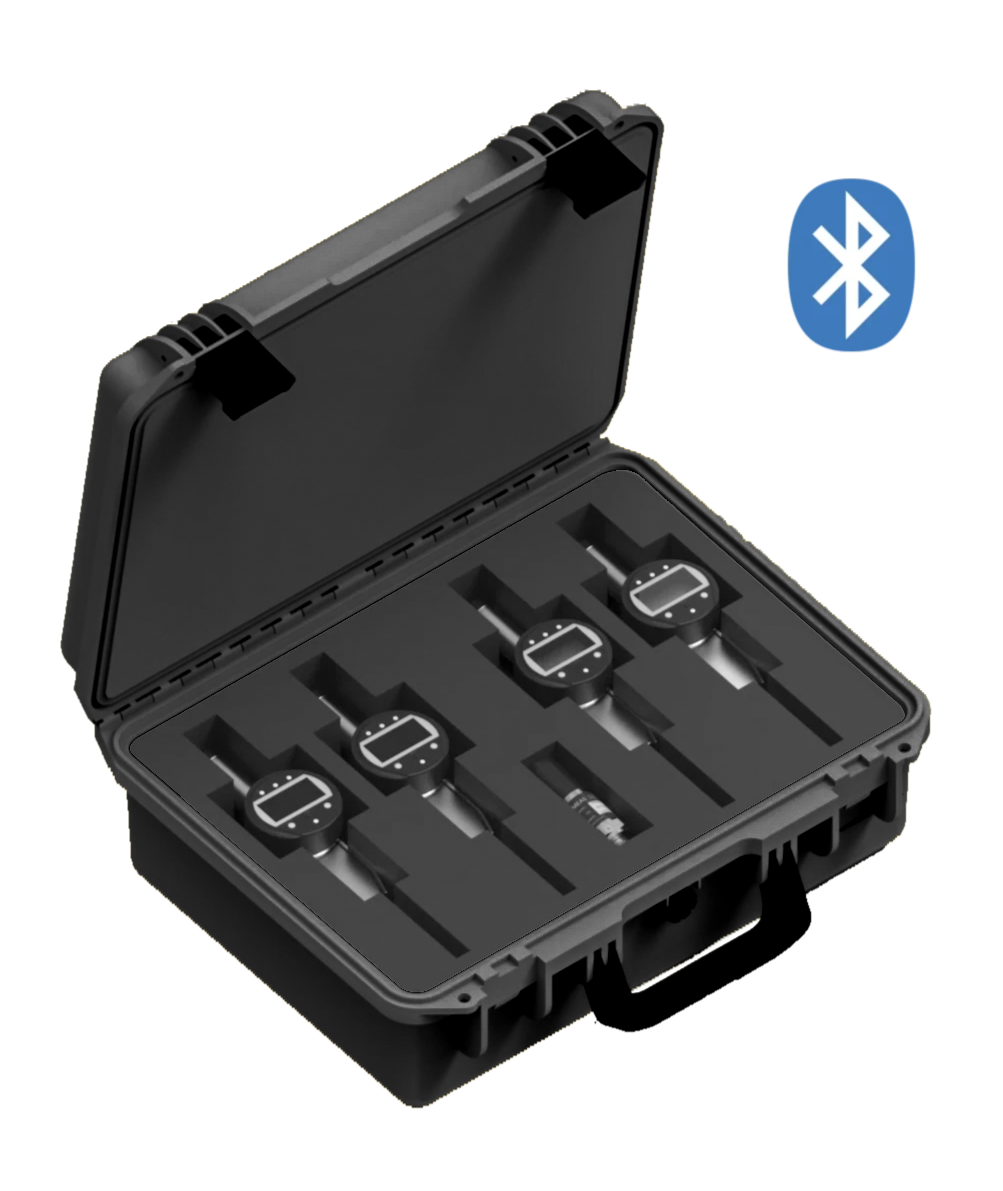

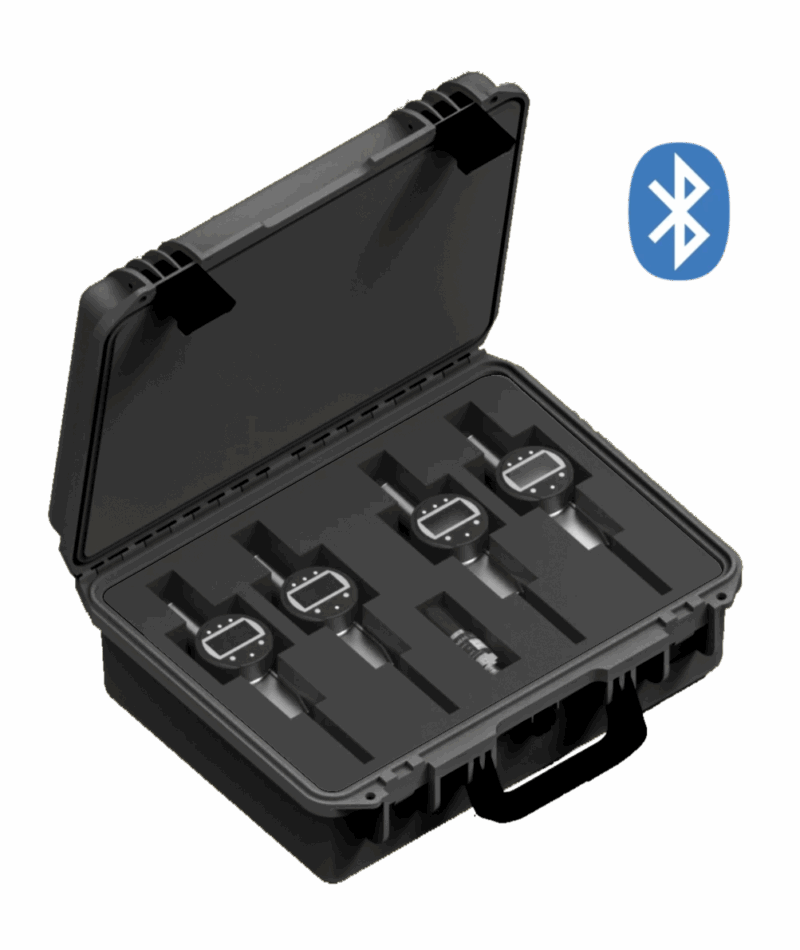

- Protective Carrying Case
- iPad Pile Load Test App
- iPad Mini 5 with Protective Case (Optional)
- Extended Warranty (Optional)
iOS
Pile Load Test is an app that works with wireless dial indicators and wireless load gauges for wireless pile load testing.
Windows
MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.
MultiGage Cloud
MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.
Brochure
User Manual
Full Product Catalog
Flyer
Case Study
Case Study Photos
A Wireless Solution for Pile Load Testing
Motionics’ wireless pile load test kit improves efciency and increases safety in pile load testing applications by allowing you to take readings wirelessly.
Wireless Connectivity
You can connect to wireless deflection and load gauges with your iPhone, iPad, Android device, or Windows PC via Bluetooth Low Energy, eliminating wires entirely.
Cross-Platform Capability
You can use either our dedicated Pile Load Test software for iPad, or our general wireless measurement software MultiGage for Windows to connect to your Bluetooth deflection and load gauges.
Cloud Capability
By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser. You can also set notifications that can alert you to a sensor disconnection, low sensor battery, or the reading falling out of a set threshold.
MultiGage Cloud Features
MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with diferent analytic tools such as treemaps, map view, and summary view. MultiGage Cloud is a subscription-based platform.
Simultaneous Reading
Connect to, read from, and record measurements from multiple gauges and multiple gauge types at once.
Wireless Deflection Gauges
The wireless pile load test kit integrates wireless deflection gauges, which come in a variety of types, ranges, and resolutions.
Wireless Load Gauges
There are a variety of wireless load gauges that can be integrated in the kit to take load readings alongside deflection readings wirelessly.
Wireless Pressure Sensors
Our Bluetooth pressure sensors, or BluePSI, can wirelessly monitor hydraulic pressure which can be converted to load in the app.
Custom Test Information Templates
The Pile Load Test app comes with custom templates made specifically to display information from pile load testing applications.
