Description

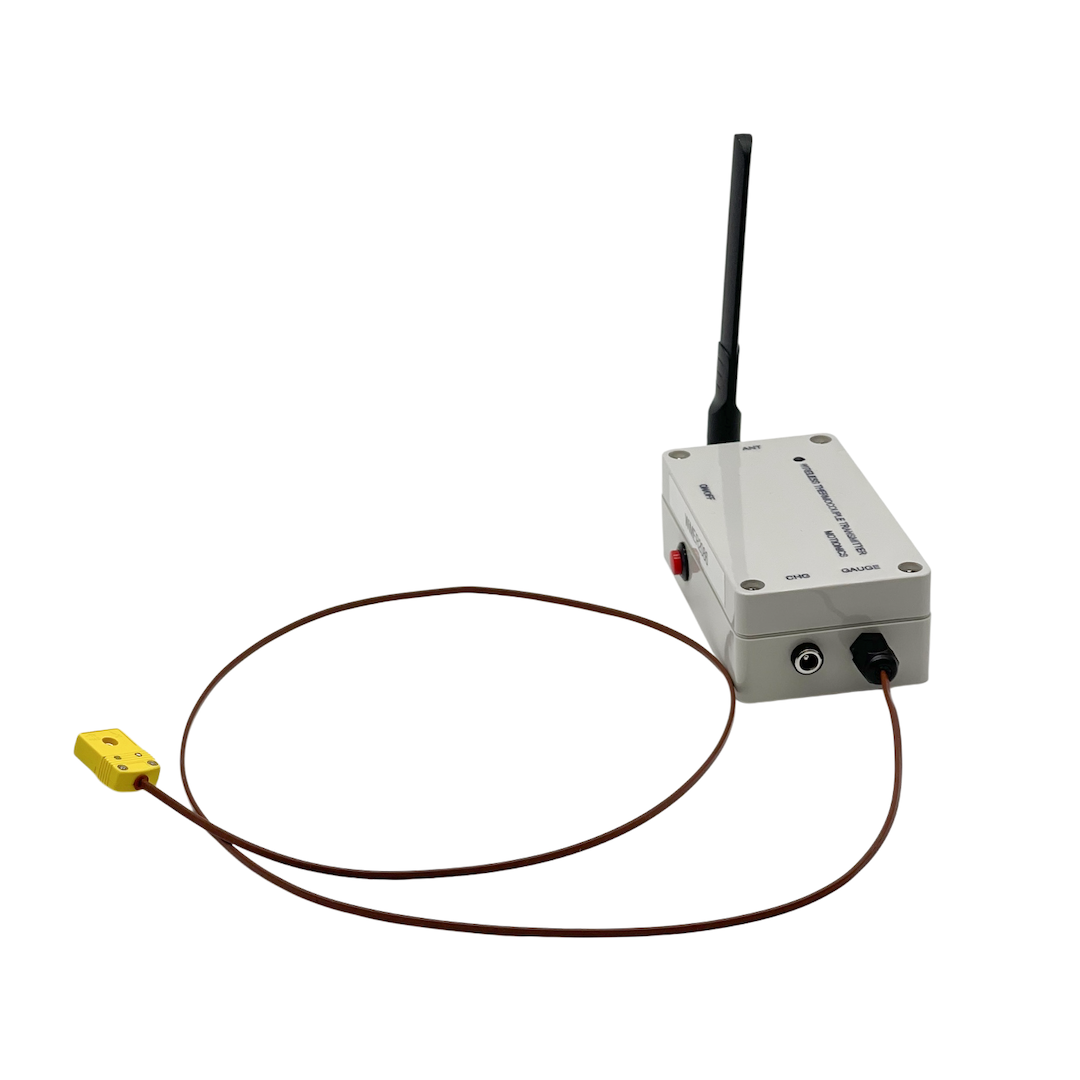

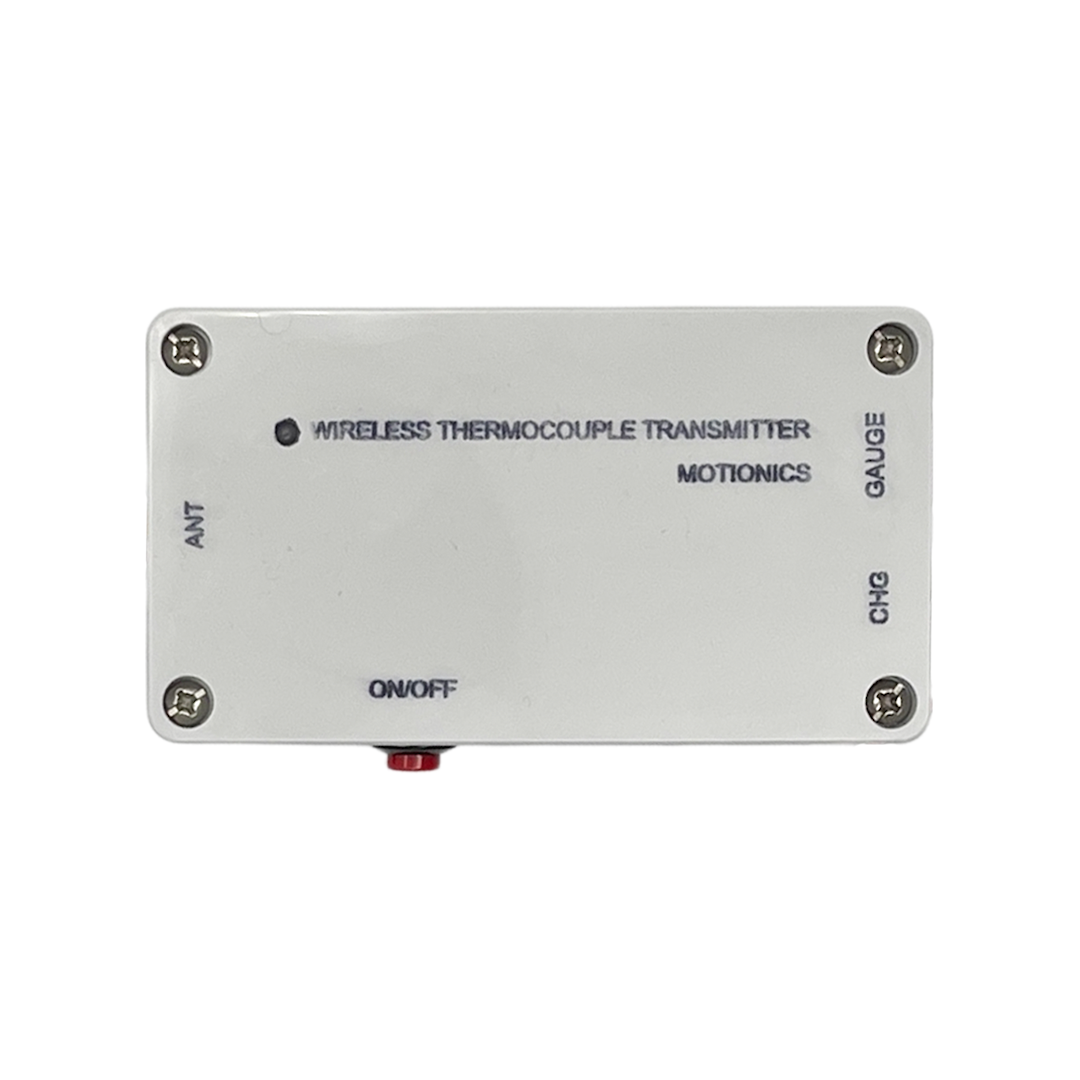

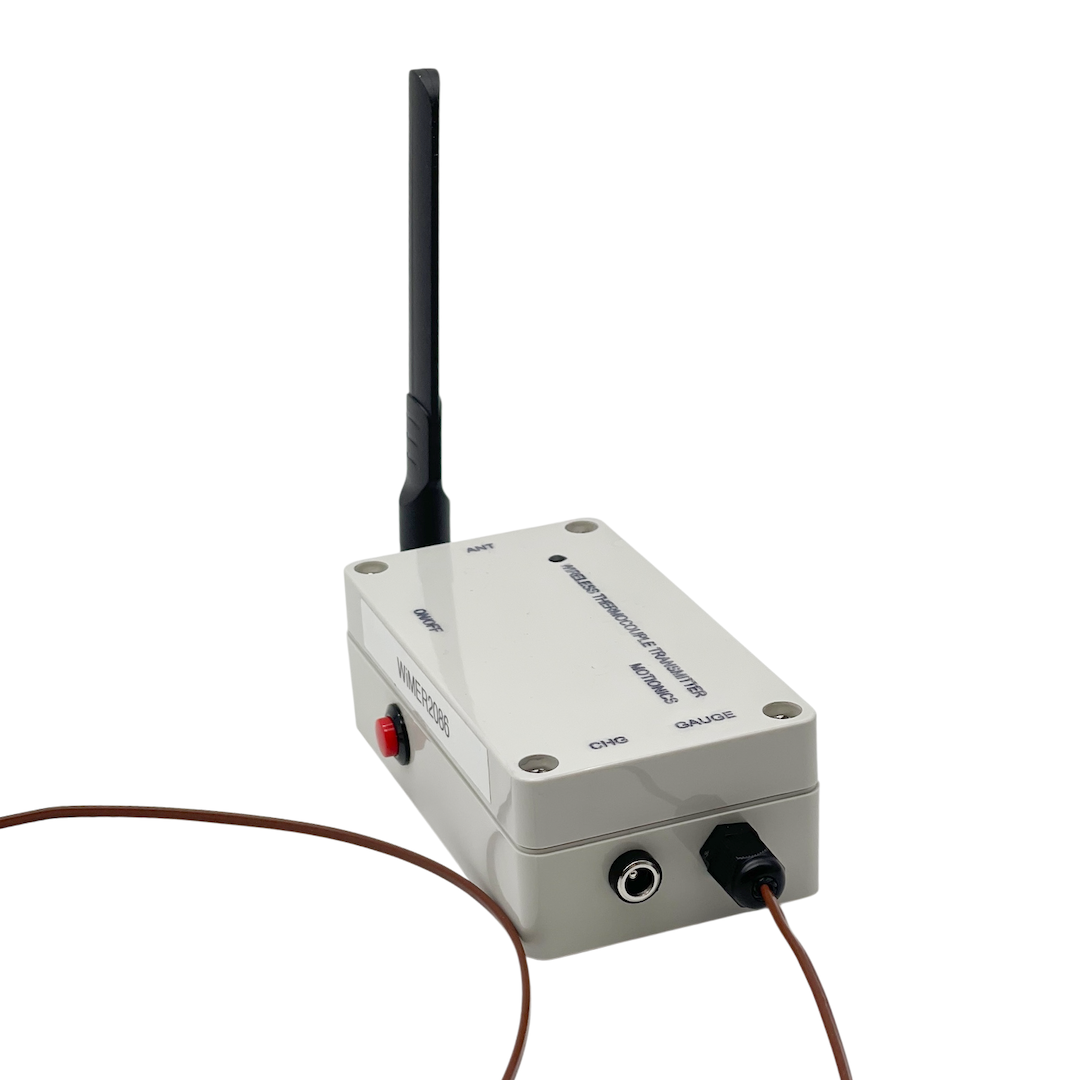

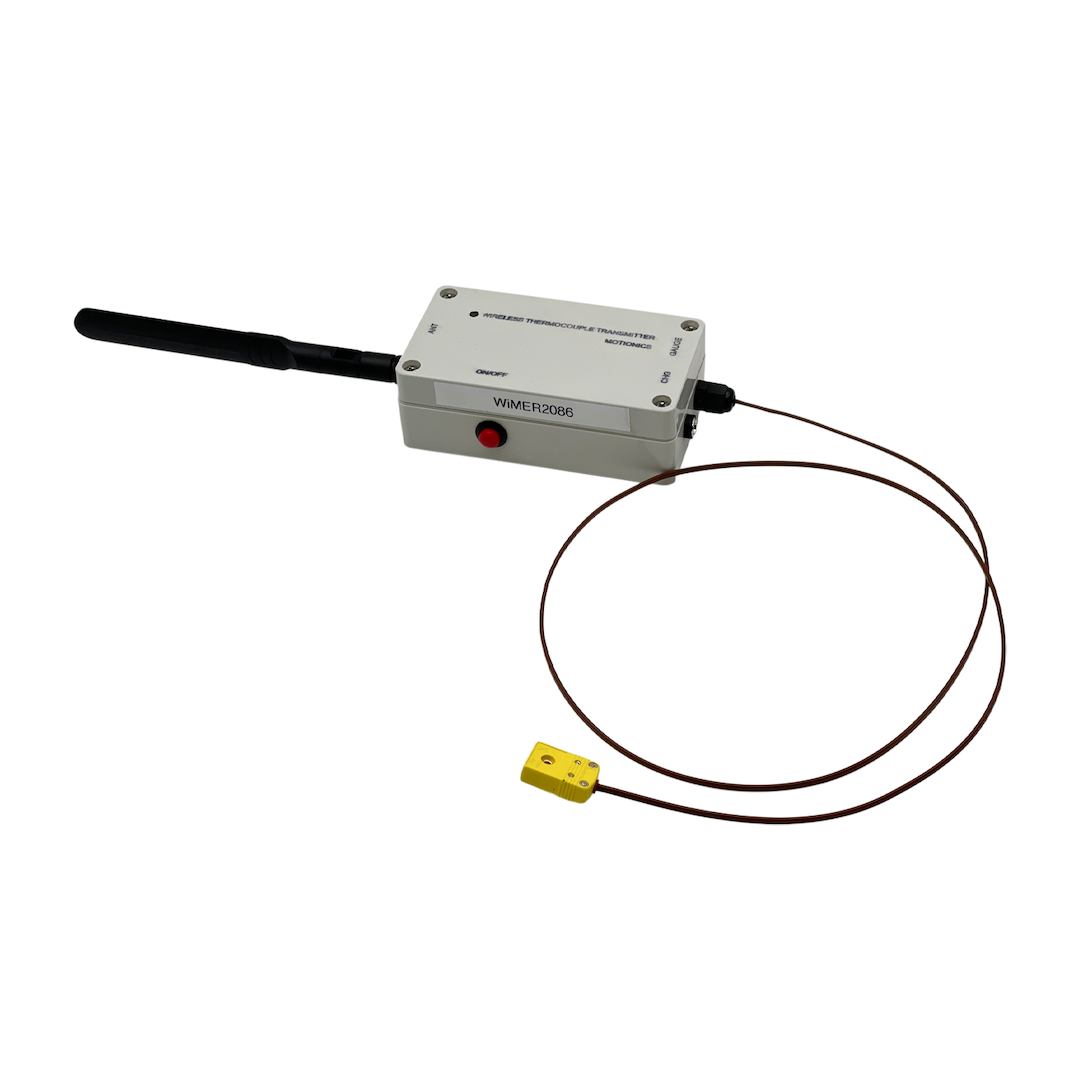

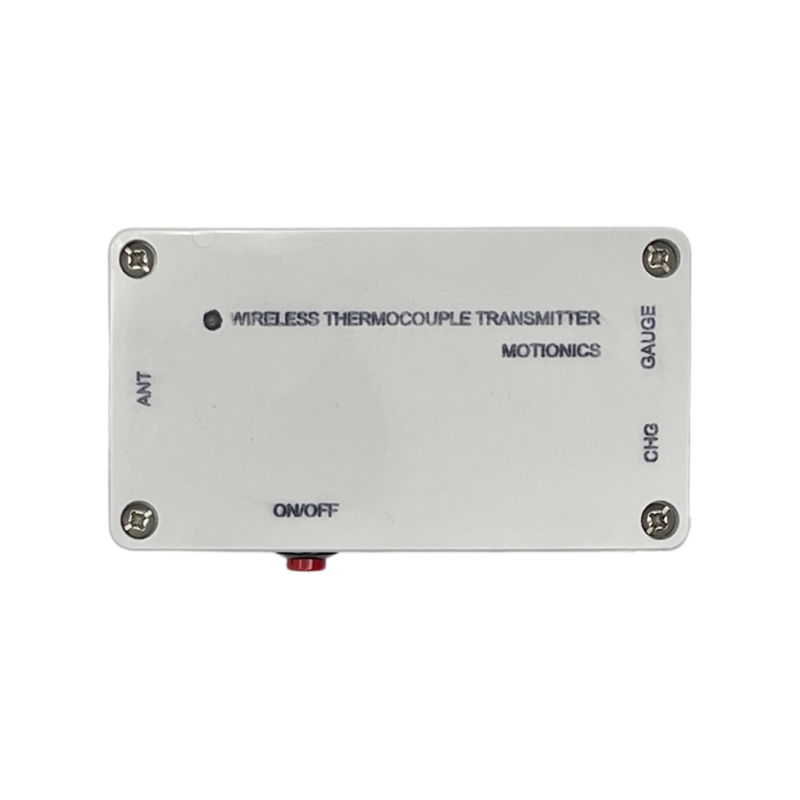

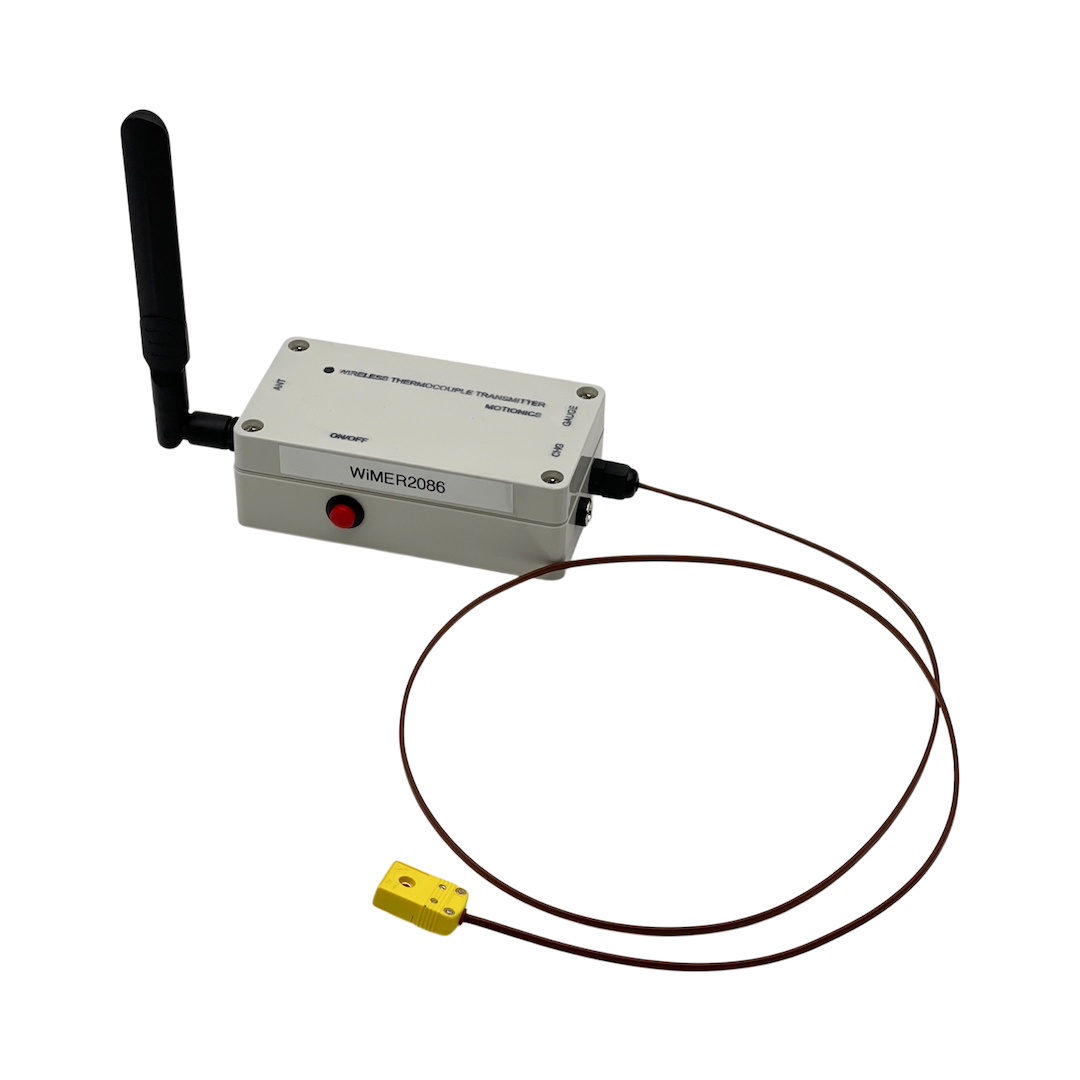

WiMER12 is a wireless transmitter for thermocouples. It can connect to different types of thermocouples and can be customized for your application to read any type of thermocouple wirelessly via Bluetooth Low Energy through our cross-platform MultiGage software. WiMER12 is rechargeable via USB, and the thermocouple connector and cable can be customized upon request.
WiMER12 works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.
Cloud Remote Reading Option
WiMER12 also works with our MultiGage Cloud application, a browser-based IoT (Internet of Things) platform for real-world data tracking from anywhere.
By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser.
MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with different analytic tools such as treemaps, map view, and summary view. MultiGage Cloud is a subscription-based platform.
Specifications
| Specification | WiMER12 |
|---|---|
| Dimensions | 4.7 x 2.6 x 1.6” |
| Input Type | K, J, T, N, S, E, B and R type Thermocouple |
| Measurement Range | • K Type: -200°C to +1372°C • J Type: -150°C to +1200°C • T Type: -200°C to +400°C • N Type: -150°C to +1300°C • E Type: -200°C to +1000°C • S Type: +250°C to +1664°C • B Type: +1000°C to +1800°C • R Type: +250°C to +1664°C |
| Resolution | 0.0625°C |
| Accuracy | ±0.5°C/±1.5°C (typ./max.) |
| Wireless Data Rate | 10Hz |
| Transmission Range | 100ft (30m) |
| Working Temperature | 32 to 122°F |
| Rechargeable Battery | 3000mAh |
| Battery Life | 30hrs |
| Charging | 5VDC USB |
| Thermocouple Included | No* |
* WiMER12 comes with a thermocouple connector and cable. The cable length and the connector can be customized.
Contact us for more details.
Software
iOS
MultiGage for iOS allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone.
Apple Watch Compatible
- Companion Apple Watch app for MultiGage Reader on iPhone
- View wireless measurement device readings on your wrist.
- Start/stop continuous data recording or capture single reading by tapping on Apple Watch
Android
MultiGage Android offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.
Windows
MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.
MultiGage Cloud
MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.
Included

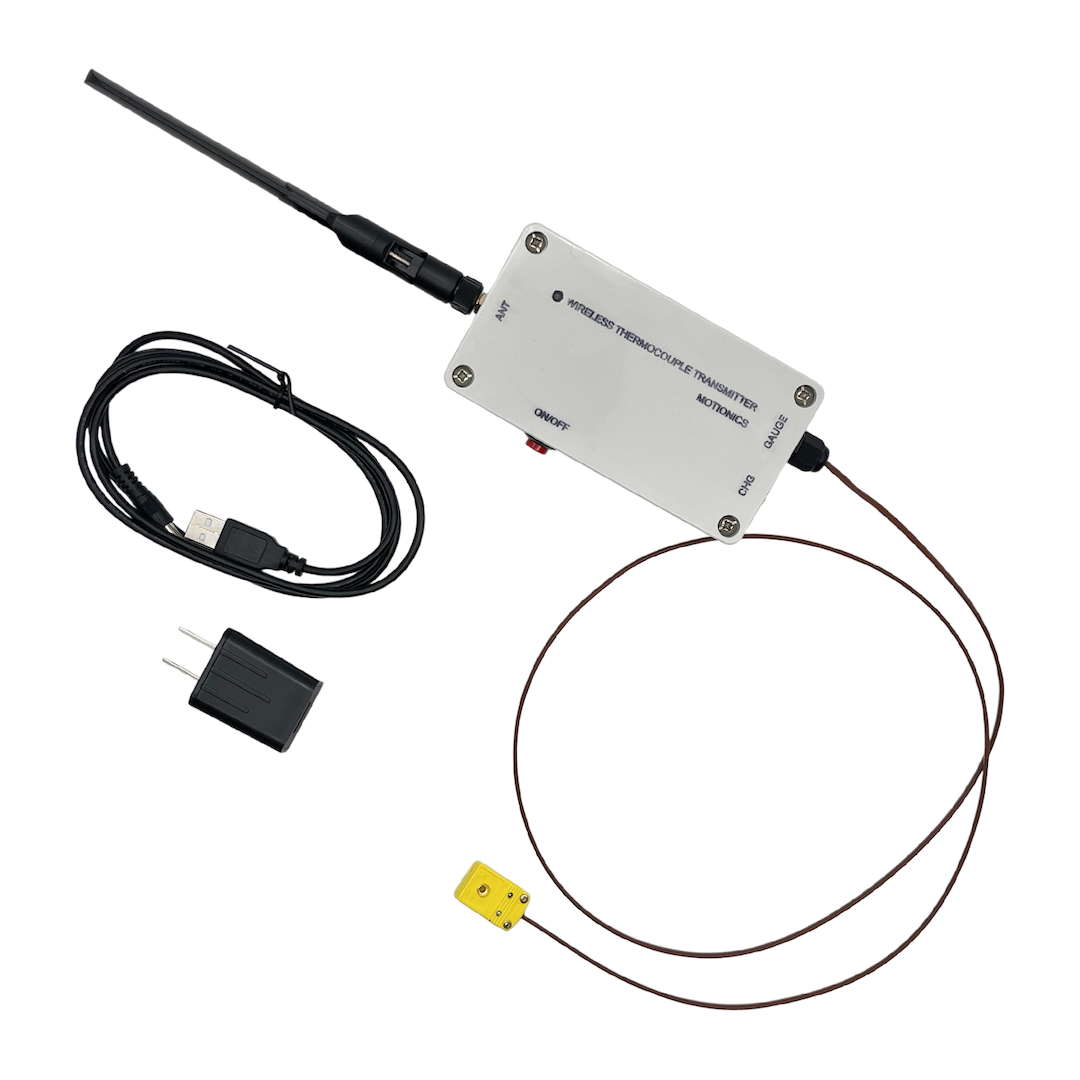

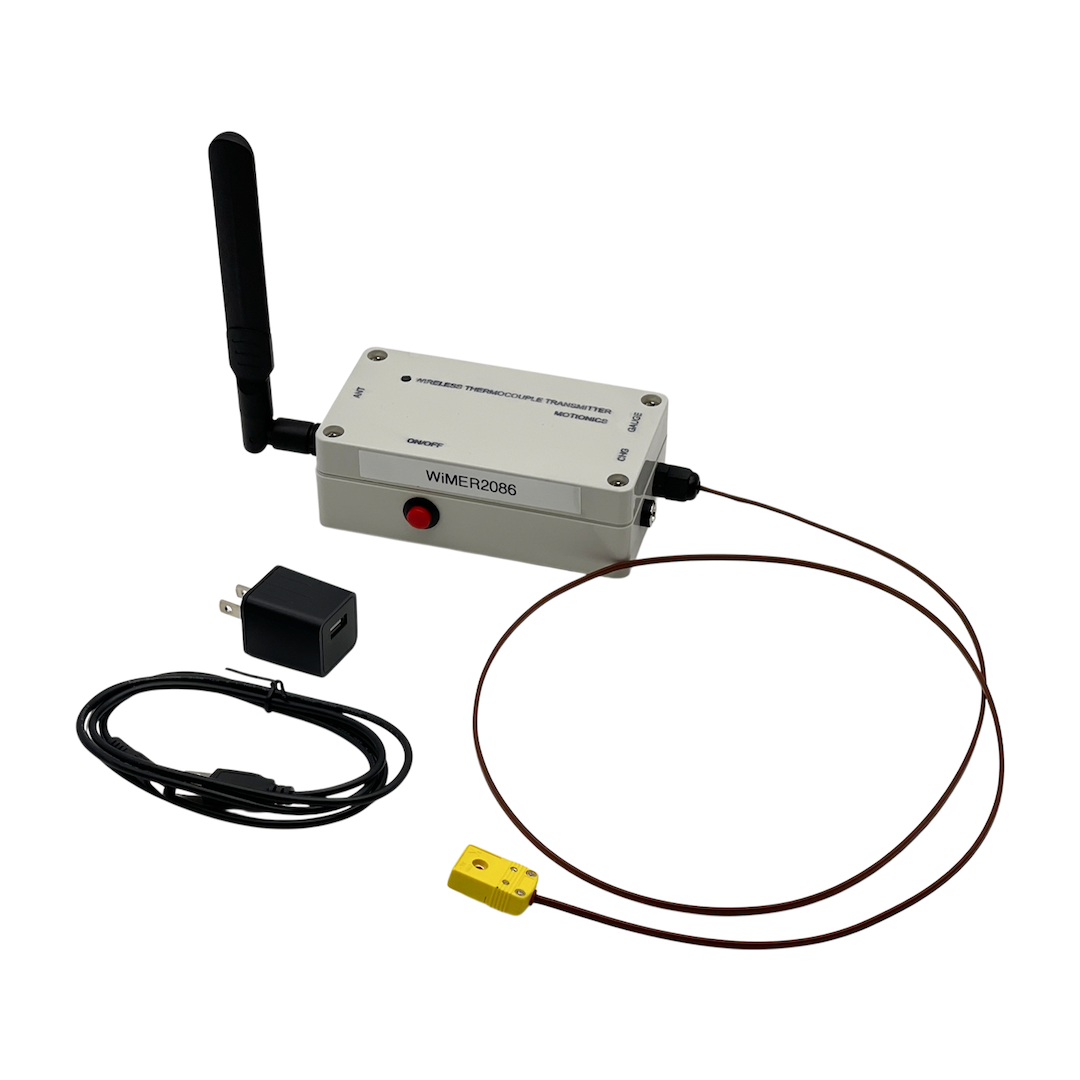

What’s in the box:
- WiMER12 Transmitter x1
- USB Charging Cable x1
- USB Power Adapter (US orders only) x1
- User Manual x1
- BLE Dongle* (Optional)
*Required for PC use - Extended Warranty (Optional)
Documents
User Guide
Full Product Catalog
MultiGage Brochure
