Description

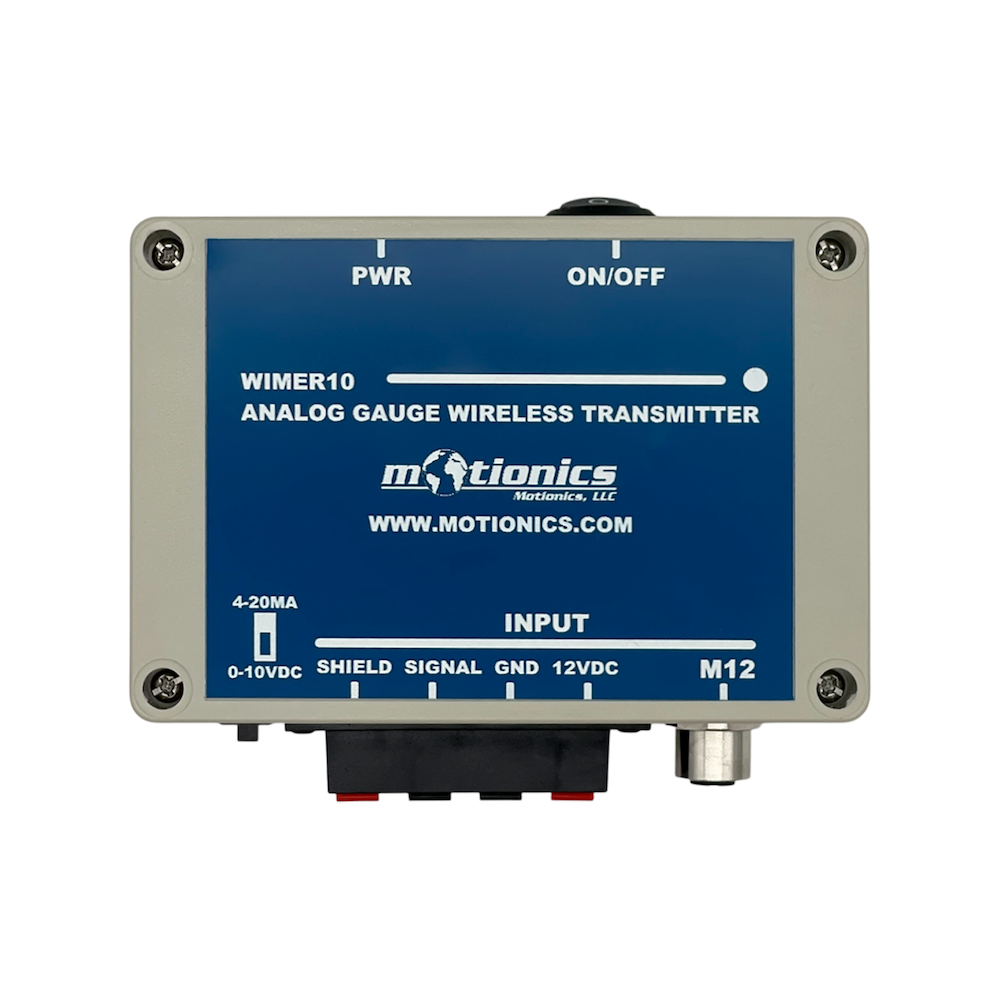

WiMER10 is a universal transmitter for reading analog signal from a sensor with either 0-10VDC output or 4-20mA output. WiMER10 ensures accurate results with a 16-bit high-precision ADC and offers convenient wireless data collection via Bluetooth Low Energy.
WiMER5 sends readings to iPhone, iPad, Android and Windows PC (USB Bluetooth Dongle needed for PC).
Note: Hardware and software can be customized for various other engineering applications on request. Contact us for more information.
WiMER10 works with MultiGage, our free cross-platform software that lets you read and record measurements wirelessly on your iPad, iPhone, Android device, or Windows PC.
Cloud Remote Reading Option
WiMER10 also works with our MultiGage Cloud application, a browser-based IoT (Internet of Things) platform for real-world data tracking from anywhere.
By connecting Bluetooth gages to a MultiGage Cloud Gateway, you can view real-time readings and reading history from anywhere by logging onto the MultiGage Cloud portal on any web browser.
MultiGage Cloud provides a variety of features to make remote monitoring easier, including multiple sensor connectivity, customizable dashboards, smart alerts and notifications, reading history access, remote sensor controls, and easy overall asset monitoring with different analytic tools such as treemaps, map view, and summary view. MultiGage Cloud is a subscription-based platform.
| WiMER10 | |
|---|---|
| Input Type | 4-20mA / 0-10VDC |
| Wireless Transmission Range | 66ft / 20m (indoor) / 100ft / 30m (outdoor) |
| Resolution | 16-Bit |
| Wireless Data Rate | 30Hz |
| Working Temperature | 32 to 122°F |
| Battery | 3000mAH rechargeable |
| Battery Life | 30hrs (depends on gauge) |
| Charging | 5VDC USB |
iOS
MultiGage for iOS allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone.
Apple Watch Compatible
- Companion Apple Watch app for MultiGage Reader on iPhone
- View wireless measurement device readings on your wrist.
- Start/stop continuous data recording or capture single reading by tapping on Apple Watch
Android
MultiGage Android offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.
Windows
MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.
MultiGage Cloud
MultiGage Cloud connects Bluetooth wireless sensors to the Internet, allowing real-world data tracking from anywhere. MultiGage Cloud is the ultimate industrial remote monitoring solution.

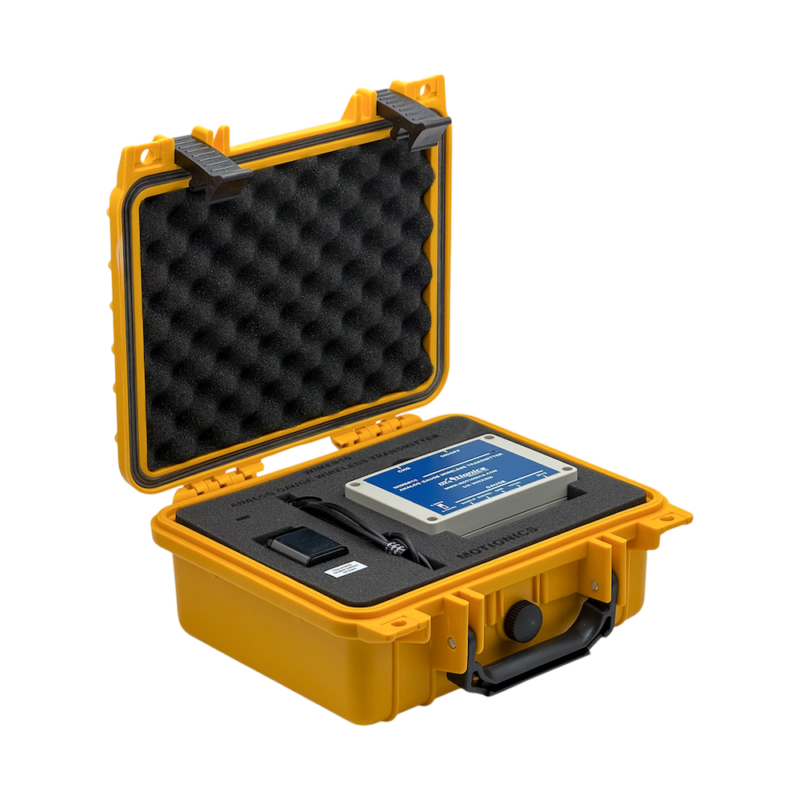

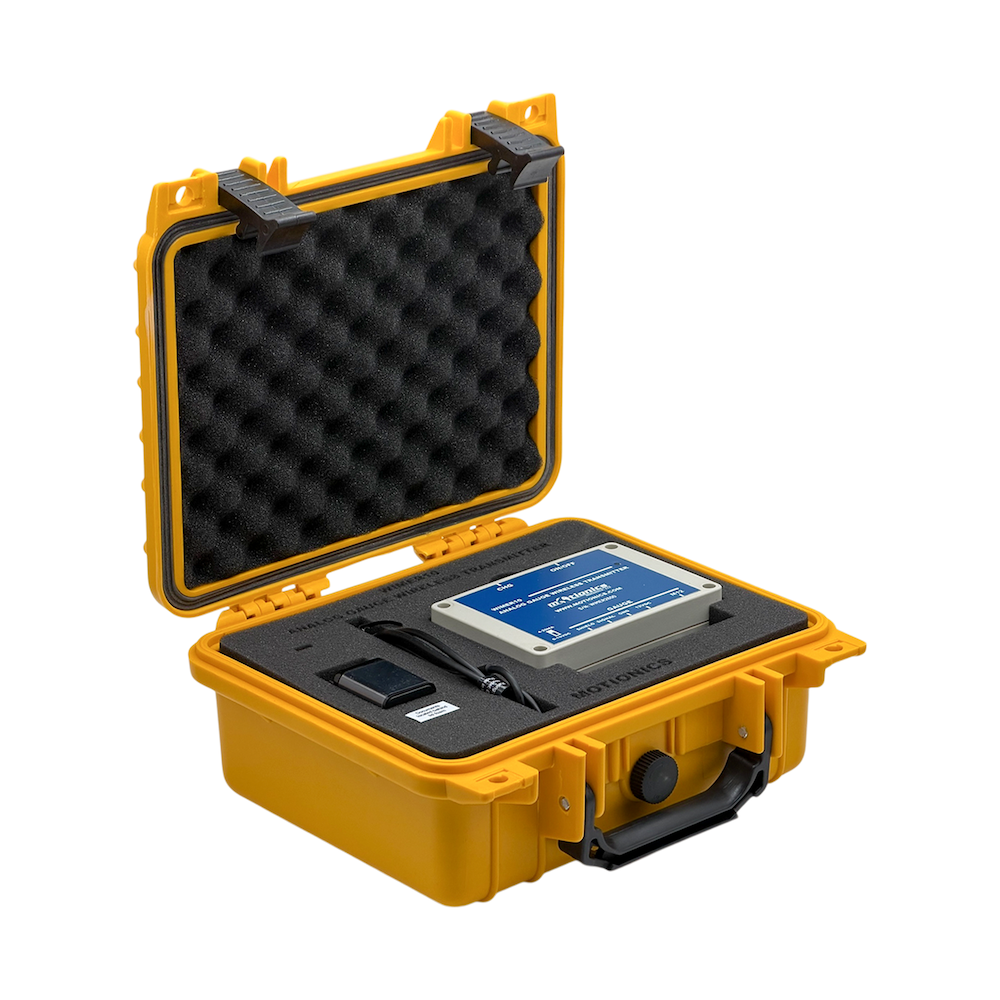

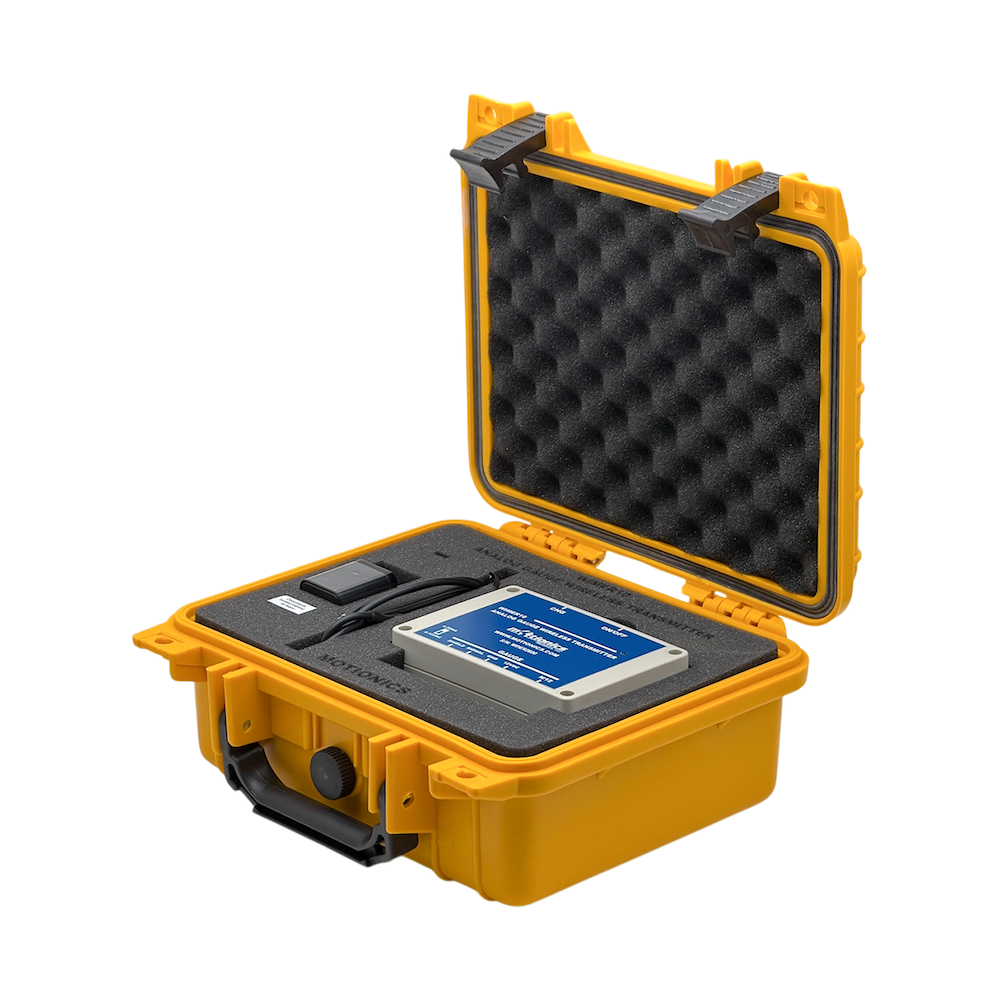

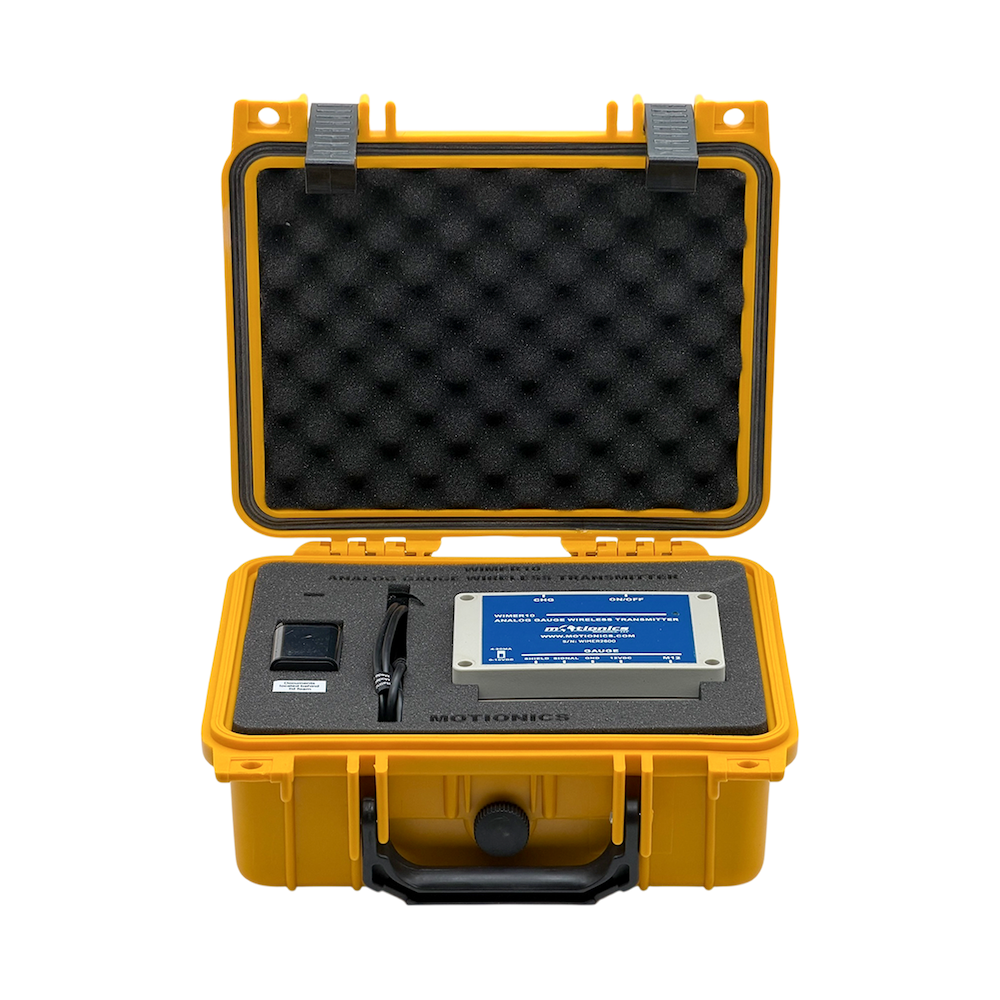

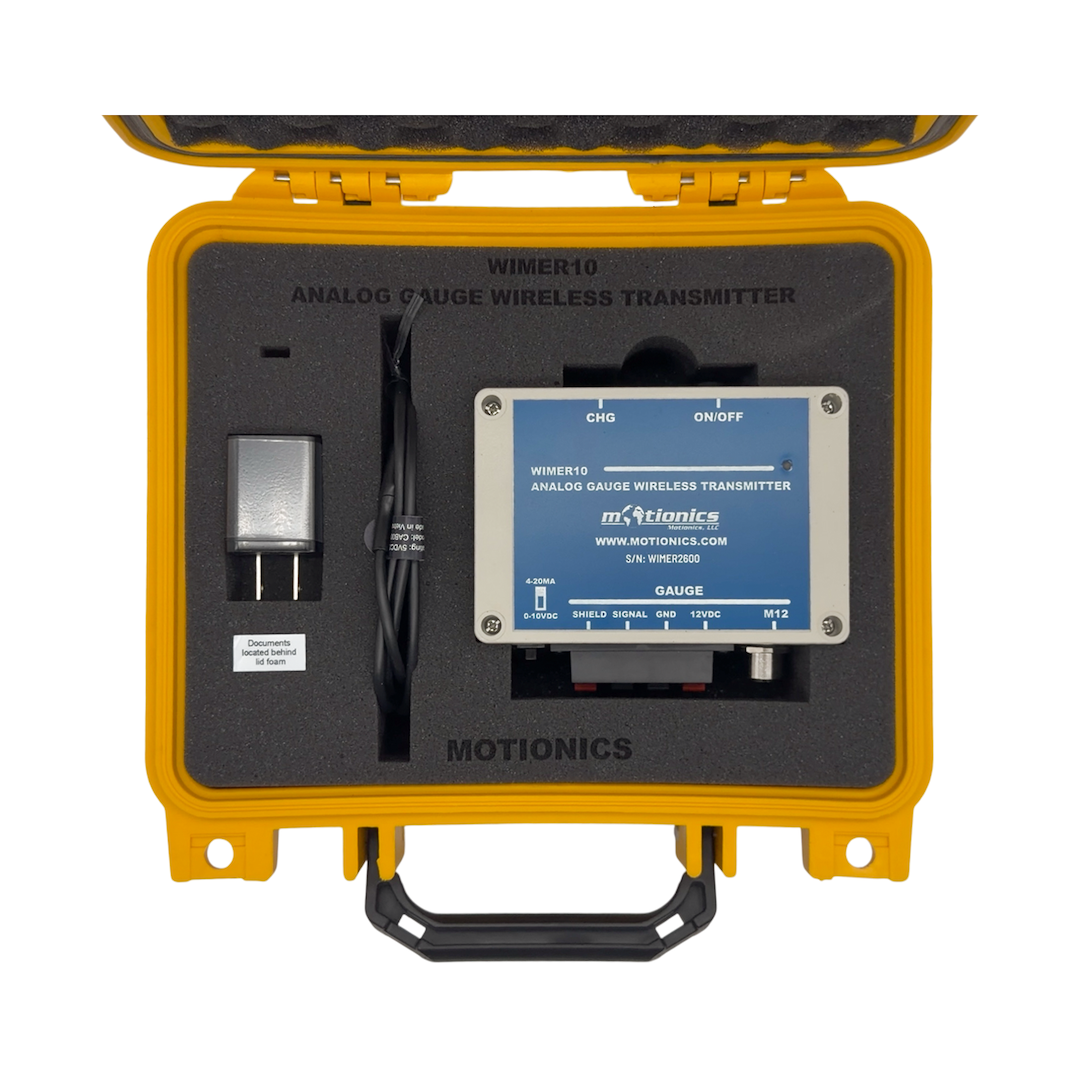

What’s in the box:
- WiMER10 Base x1
- USB Charging Cable x1
- USB Power Adapter x1
- User Manual x1
- BLE Dongle* (Optional)
*Required for PC use - Extended Warranty (Optional)
