ShakerWatch: Wireless Vibration Analyzer for Shakers

The Motionics ShakerWatch is an advanced iPad-based vibration analysis tool for vibratory screens and shale shakers, featuring a tri-axial accelerometer for easy attachment and measurement. It offers wireless communication for efficient and safe testing, with an intuitive app that supports various tests and auto-generates PDF reports, enhancing safety, usability, and speed in vibration analysis.

Description

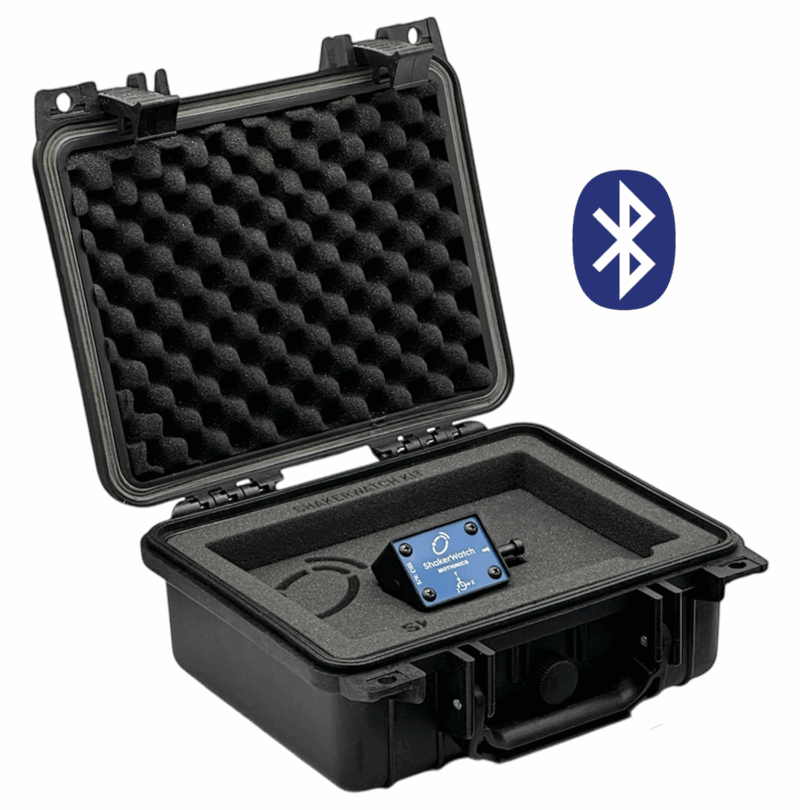

Motionics ShakerWatch is an iPad-based vibration analyzer specialized for vibratory screen equipment and shale shakers. This kit includes a ShakerWatch tri-axial accelerometer with magnetic base that can be attached to any test point on a shaker to measure and analyze vibration motion in three directions.

It packs a precise accelerometer, a powerful onboard processor, and a Bluetooth Low Energy radio module. It communicates with iPad wirelessly allowing motion and vibration test of a vibratory screen shaker in a very quick and safe way. The innovation of ShakerWatch brings more safety and accuracy to the industry. Tests can be done much faster without the need for a deep knowledge of vibration. The wireless technology eliminates wiring, connectors and other complexities to increase safety, ease of use, and durability.

The ShakerWatch iPad App performs X-Y orbit test with auto-calculated RPM, G force, stroke and angle. Bump test, side displacement and support structure vibration tests can be also be performed within the app. The App generates PDF reports automatically with a simple button tap


Specifications

  • Accelerometer Type: Tri-axial
  • Weight: 0.380lb (172g)
  • Dimensions: 3.2 x 3.0 x 1.5 in (81 x 76 x 38 mm)
  • Measurement Range: ±40g
  • Frequency Range (±3dB): 1 – 1000Hz
  • Resonant Frequency: 5500Hz
  • ADC: 16bits
  • Sampling Rate: 500 to 4000Hz
  • Data Block Size: 256 to 4096 samples
  • Data Transmission Range: 98ft (30 meters)
  • Operating Temperature: -4° to 140°F (-20° to 60°C)
  • Dust/Water Protection: IP66
  • Battery: Lithium CR2477 3VDC
  • Battery Life: 500 hours
  • Wireless: Bluetooth Low Energy Technology

Software

  • ShakerWatch is an iPad application that can connect to the ShakerWatch wireless accelerometer and perform various tests for shale shaker vibration analysis.
    • Wireless tri-axial vibration signal acquisition
    • Orbit test with auto RPM, G force, stroke, and angle calculations.
    • Interactive vibration waveform, wide range FFT spectrum, X-Y orbit plot (G Motion Plot)
    • Bump test with auto major frequency detection
    • Side displacement test with color-coded out-of-tolerance judgement and user-configurable thresholds
    • Support structure movement test with x, y, z and overall velocities
    • Attach test photos to test records
    • Auto PDF test report generation
    • Local database and test record manager
    • Export test data in Excel file and PDF test report
