Description

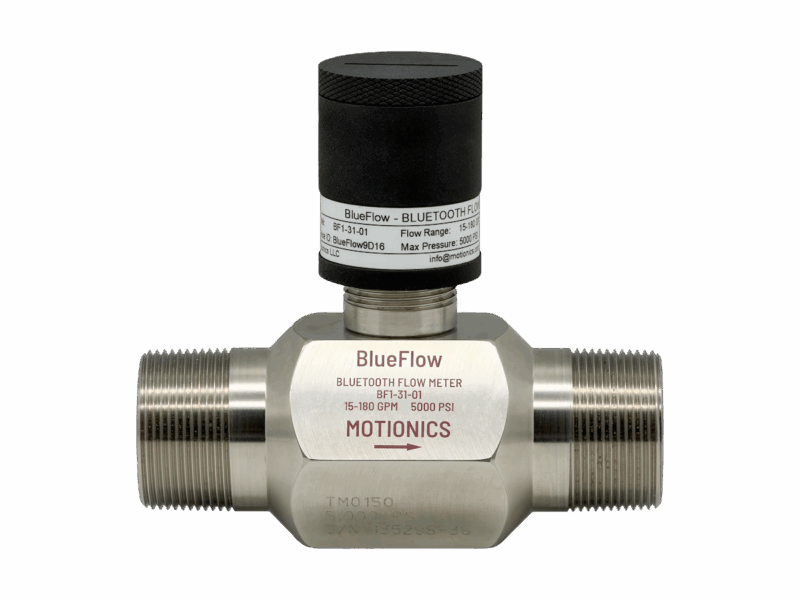

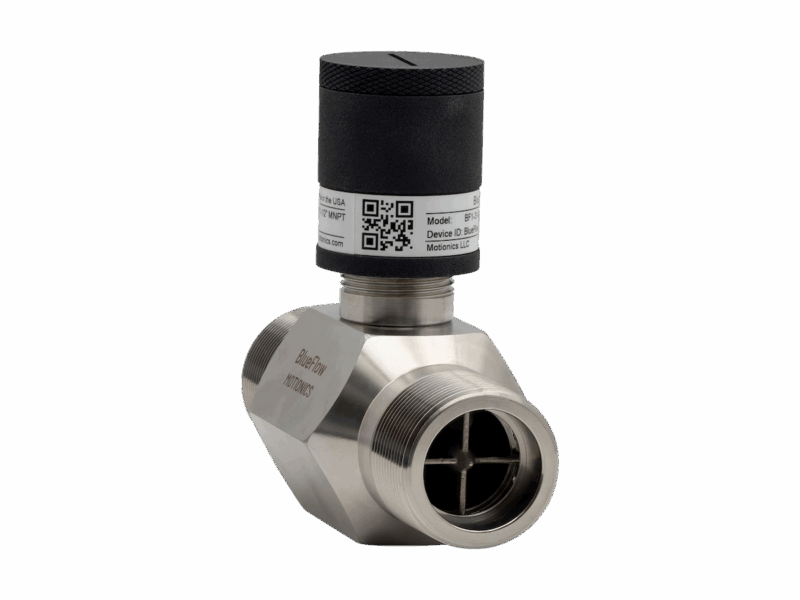

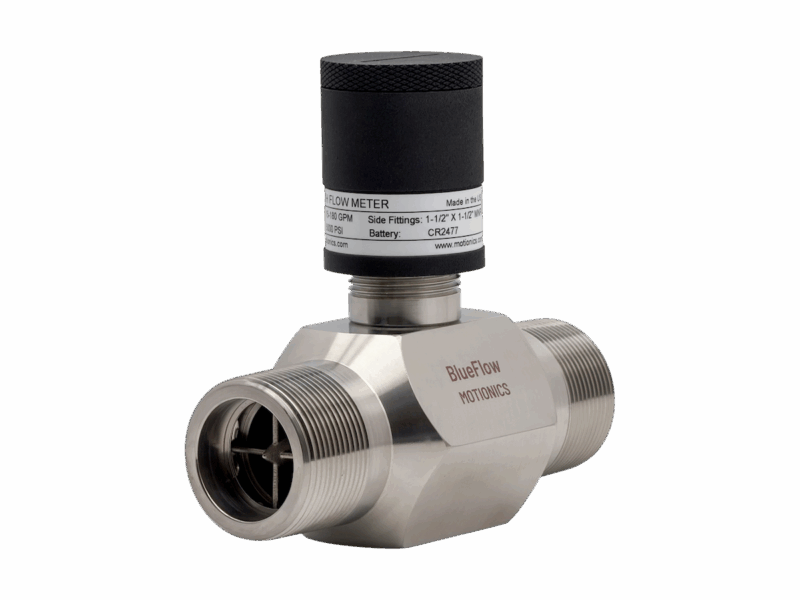

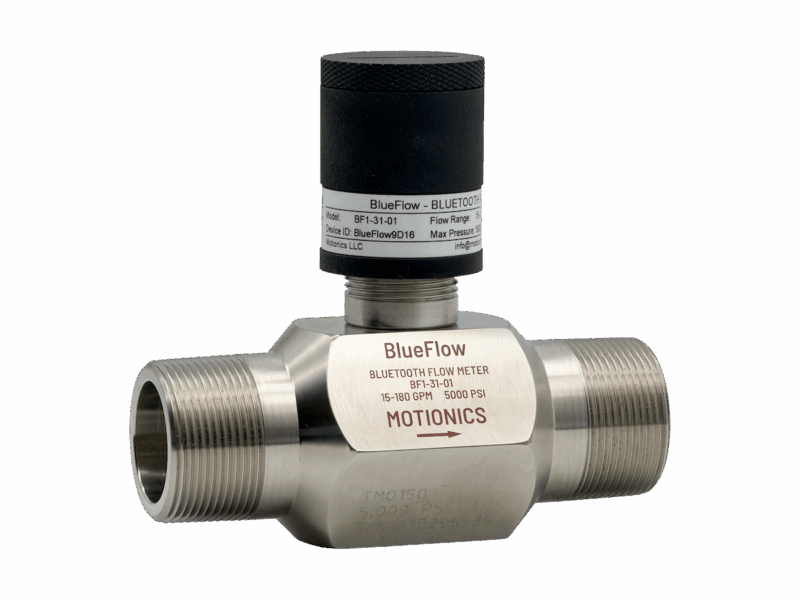

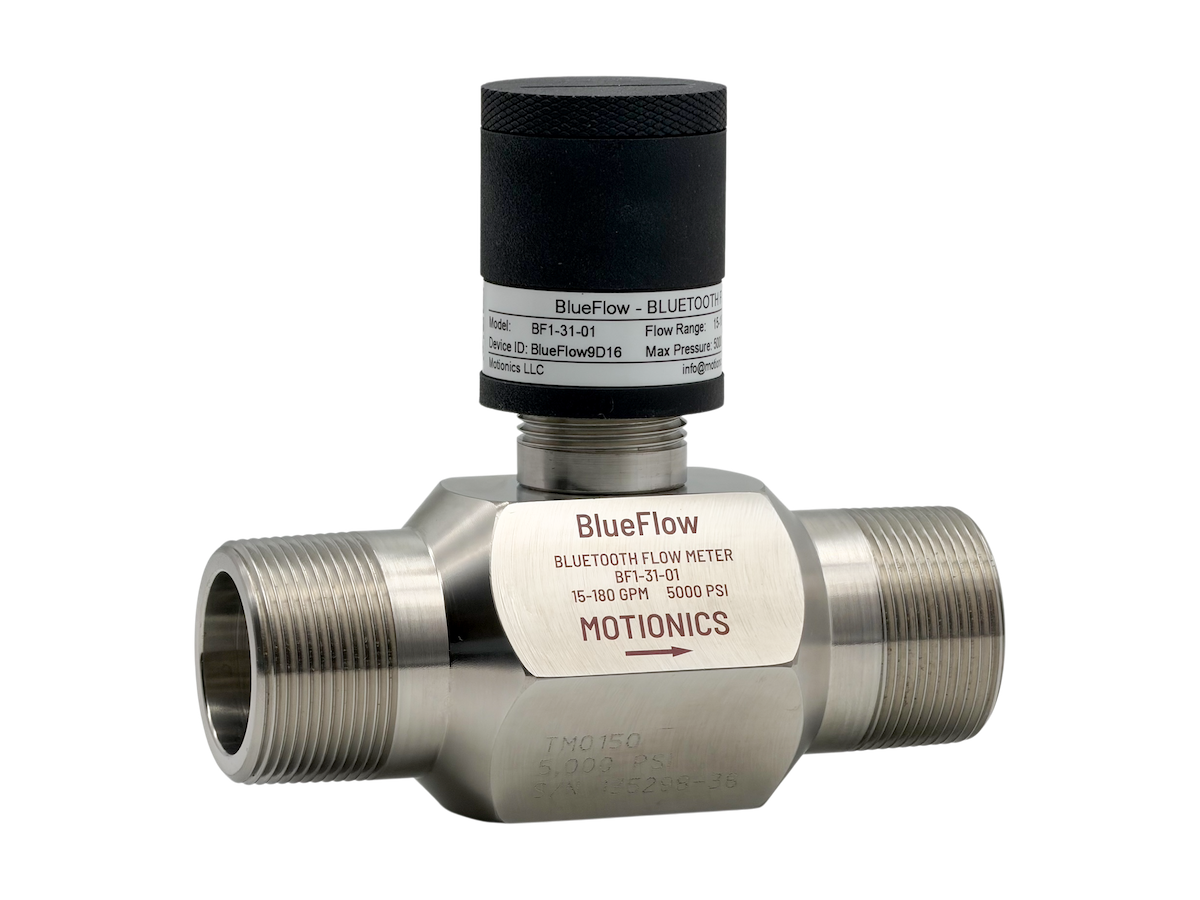

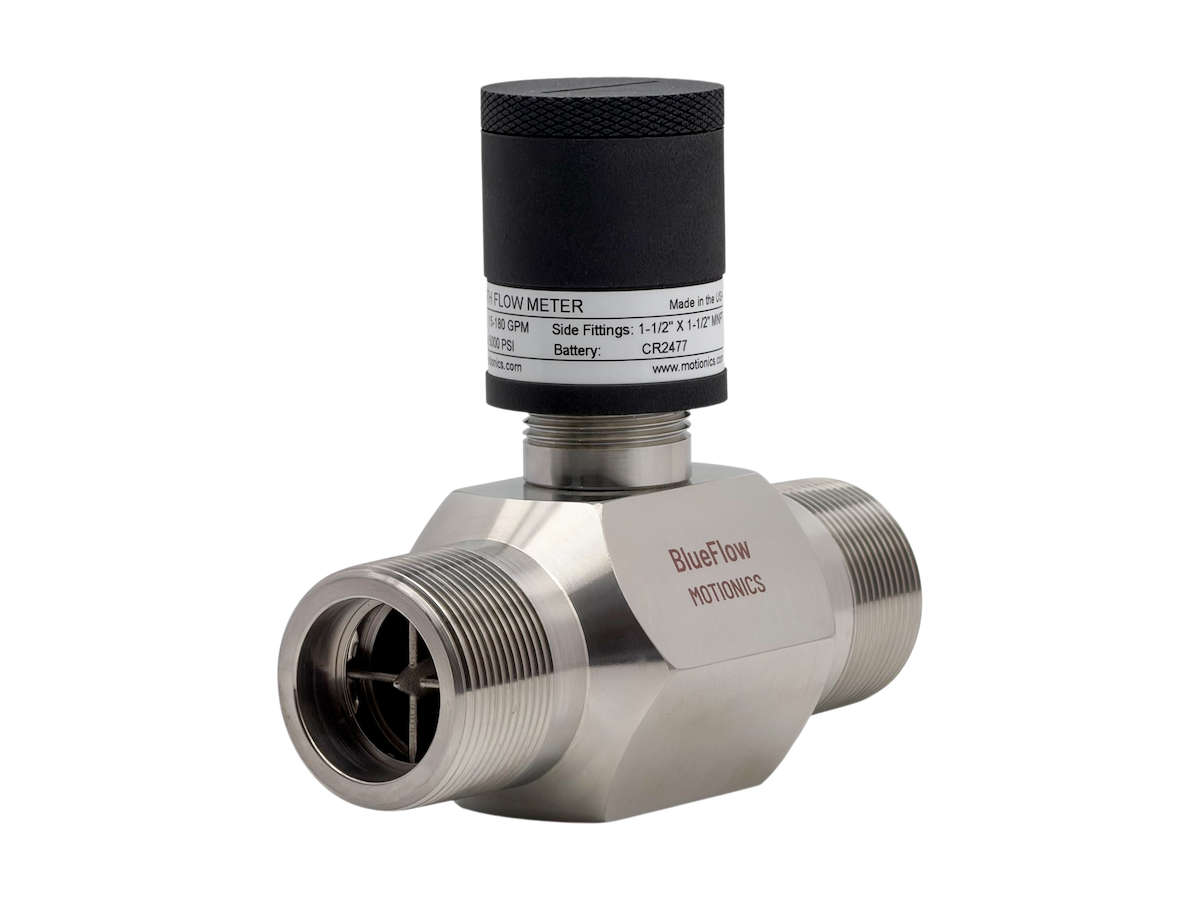

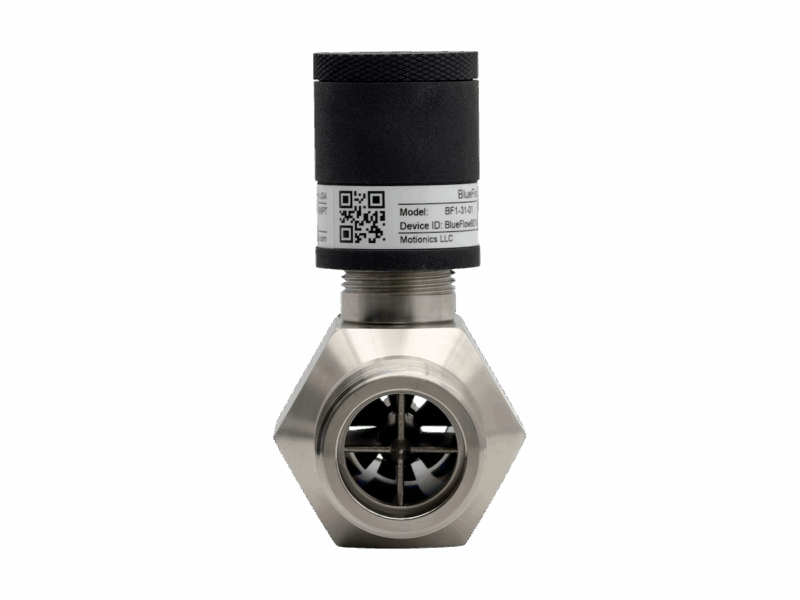

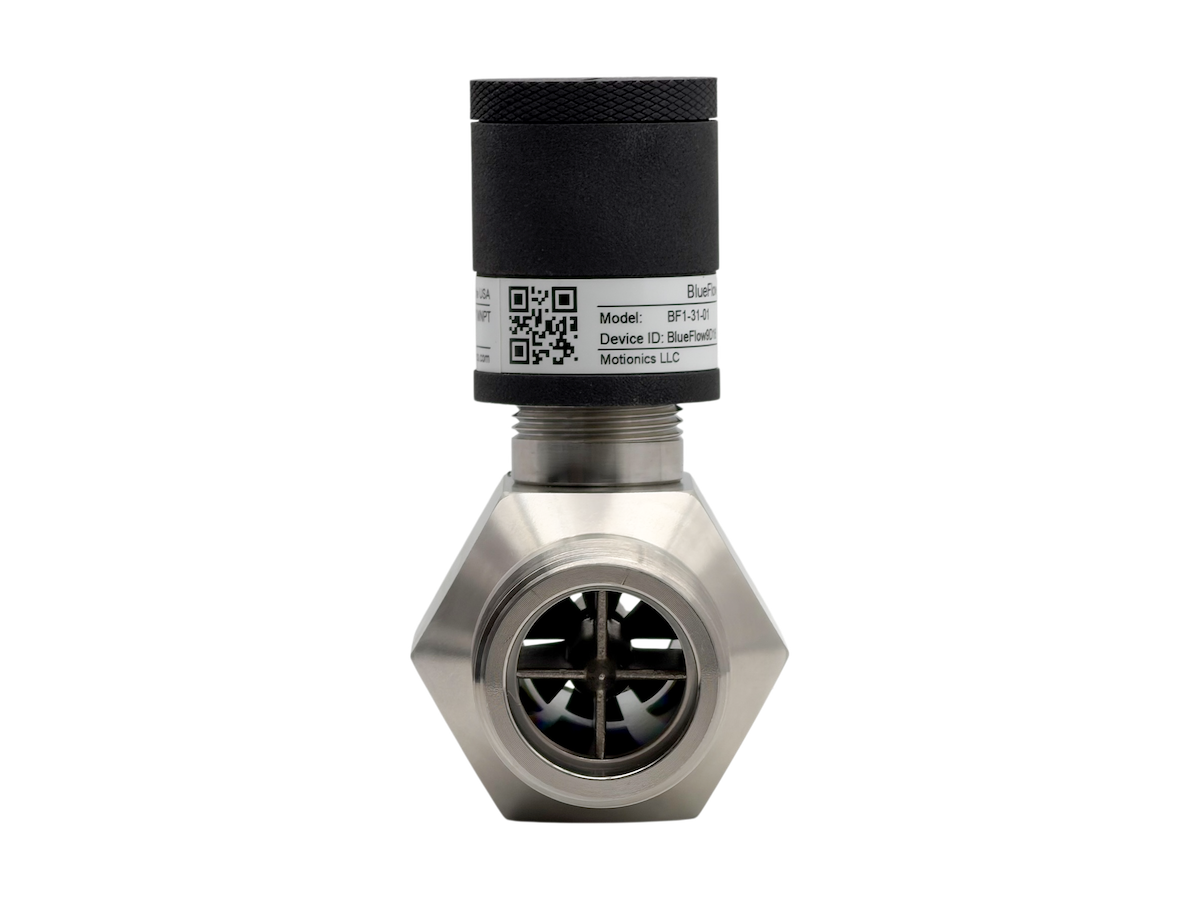

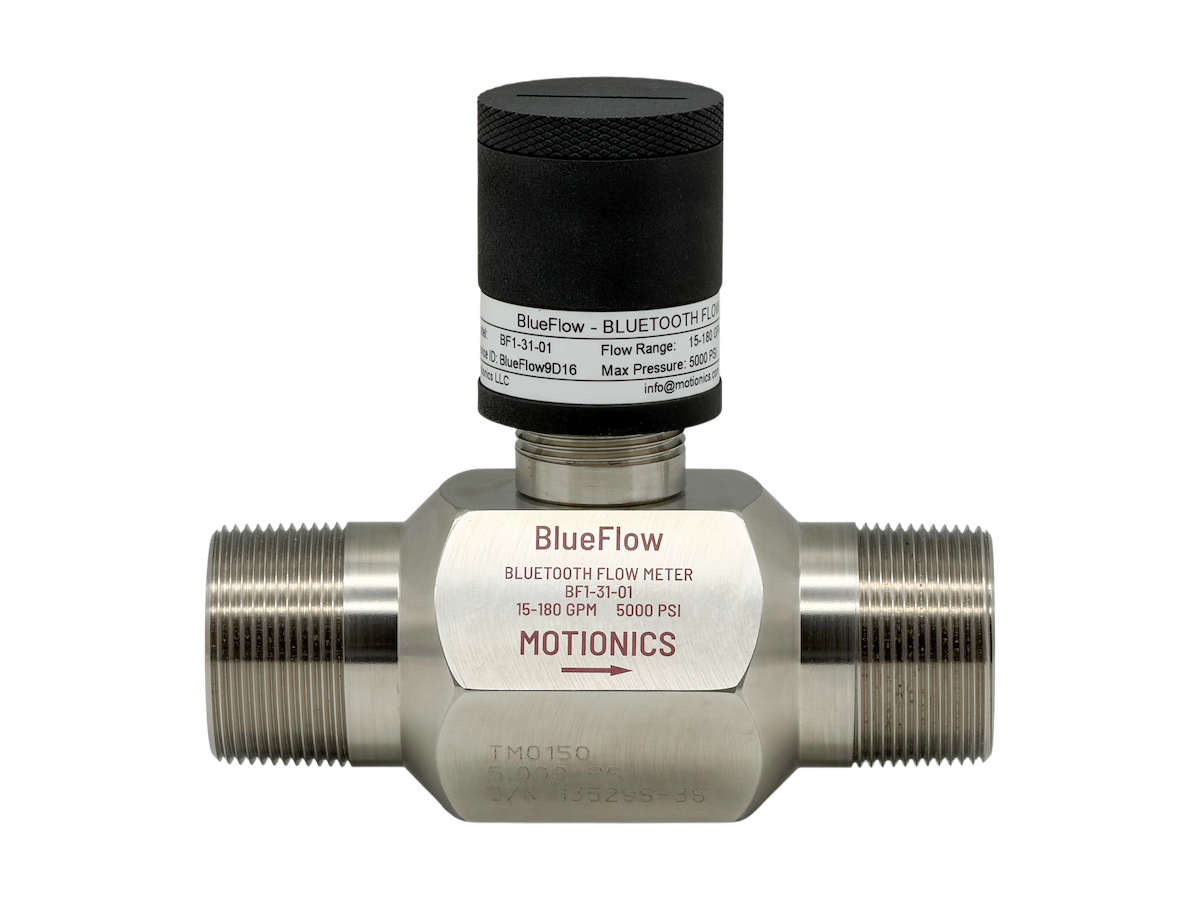

Experience unparalleled accuracy, efficiency, and safety with BlueFlow, the ultimate wireless inline turbine flow meter. Powered by a replaceable CR2477 battery and equipped with Bluetooth Low Energy technology, BlueFlow seamlessly connects to Motionics MultiGage software, allowing you to read and log flow data on a smart phone, tablet and Windows PC wirelessly with ease.
Available in multiple models to accommodate various flow pressure ranges, BlueFlow is your go-to solution for precise flow measurement. Elevate your workflow with the cutting-edge capabilities of BlueFlow.
| Model | BF1-11-01 | BF1-13-01 | BF1-25-01 | BF1-31-01 |
|---|---|---|---|---|
| Flow Range | 0.3 – 3 GPM | 2 – 15 GPM | 5 – 50 GPM | 15 – 180 GPM |
| Accuracy | ±2% FS | ±1% FS | ||
| Max Pressure | 5000 PSI | |||
| Wireless | Bluetooth Low Energy | |||
| Wireless Data Rate | Adjustable up to 10 samples/sec* | |||
| Wireless Transmission Range | Up to 100 ft / 30 m | |||
| Working Temperature | -4 to 185 °F / -20 to 85 °C | |||
| Battery | CR2477 | |||
| Battery Life | 1year (Idle) 250hrs (Connected, 10Hz Rate) 1600Hrs (Connected, 1Hz Rate) |
|||
| Material | ||||
| Meter Body | 316 Stainless Steel | |||
| Rotor Supports | 316 Stainless Steel | |||
| Meter Rotor | CD4MCu/416 Stainless Steel | |||
| Rotor Shaft | Tungsten Carbide | |||
| Sleeve Bearings | Tungsten Carbide | |||
| Dimensions | ||||
| A | 4” | 6” | ||
| B | 1.85 HEX | 2.47 HEX | ||
| C | 1.875” DIA | |||
| D | 2.4” | |||
| E – End Connection Size | ½” X ½” MNPT | ½” X ½” MNPT | 1” X 1” MNPT | 1½” X 1½” MNPT |
iOS
MultiGage allows the user to connect to multiple devices and read/record measurements wirelessly on your iPad or iPhone.
Apple Watch Compatible
- Companion Apple Watch app for MultiGage Reader on iPhone
- View wireless measurement device readings on your wrist.
- Start/stop continuous data recording or capture single reading by tapping on Apple Watch
Android
MultiGage Reader offers multiple device connectivity on Android devices. Click the app icon below to download for free on the Google Play Store or contact us for more information.
Windows
MultiGage Windows, along with this USB Bluetooth Dongle, allows you to stream readings from multiple devices wirelessly to any Windows PC running Win7 or later.
MultiGage Brochure (Software)
Full Product Catalog
- BlueFlow
- CR2477 Coin Battery
- User Manual
- Protective Carrying Case
- BLE Dongle (Optional)
*Required for PC use - Extended Warranty (Optional)
- BlueFlow
- CR2477 Coin Battery
- User Manual
- Protective Carrying Case
- BLE Dongle (Optional)
*Required for PC use - Extended Warranty (Optional)
- BlueFlow
- CR2477 Coin Battery
- User Manual
- Protective Carrying Case
- BLE Dongle (Optional)
*Required for PC use - Extended Warranty (Optional)
