ShakerWatch: Wireless Vibration Analyzer for Shakers

  • ShakerWatch by Motionics is an advanced iPad-based vibration measurement and analysis tool for vibratory screens and shale shakers.
  • ShakerWatch features a tri-axial accelerometer with magnetic base that can be attached to any test point on a shaker to measure and analyze vibration motion in three directions.
  • Wireless Bluetooth connectivity enables safer and more efficient motion and vibration tests for shakers. Innovative wireless technology eliminates wiring and connectors to increase safety, ease of use, and durability.
  • The ShakerWatch iPad app performs X-Y orbit tests with auto-calculated RPM, G-force, stroke and angle. Bump test, side displacement and support structure vibration tests can be also be performed within the app. These tests provide invaluable insights into the performance and condition of vibratory equipment, empowering users to make informed decisions swiftly without the need for a deep knowledge of vibration.

ShakerWatch: Wireless Vibration Analyzer for Shakers

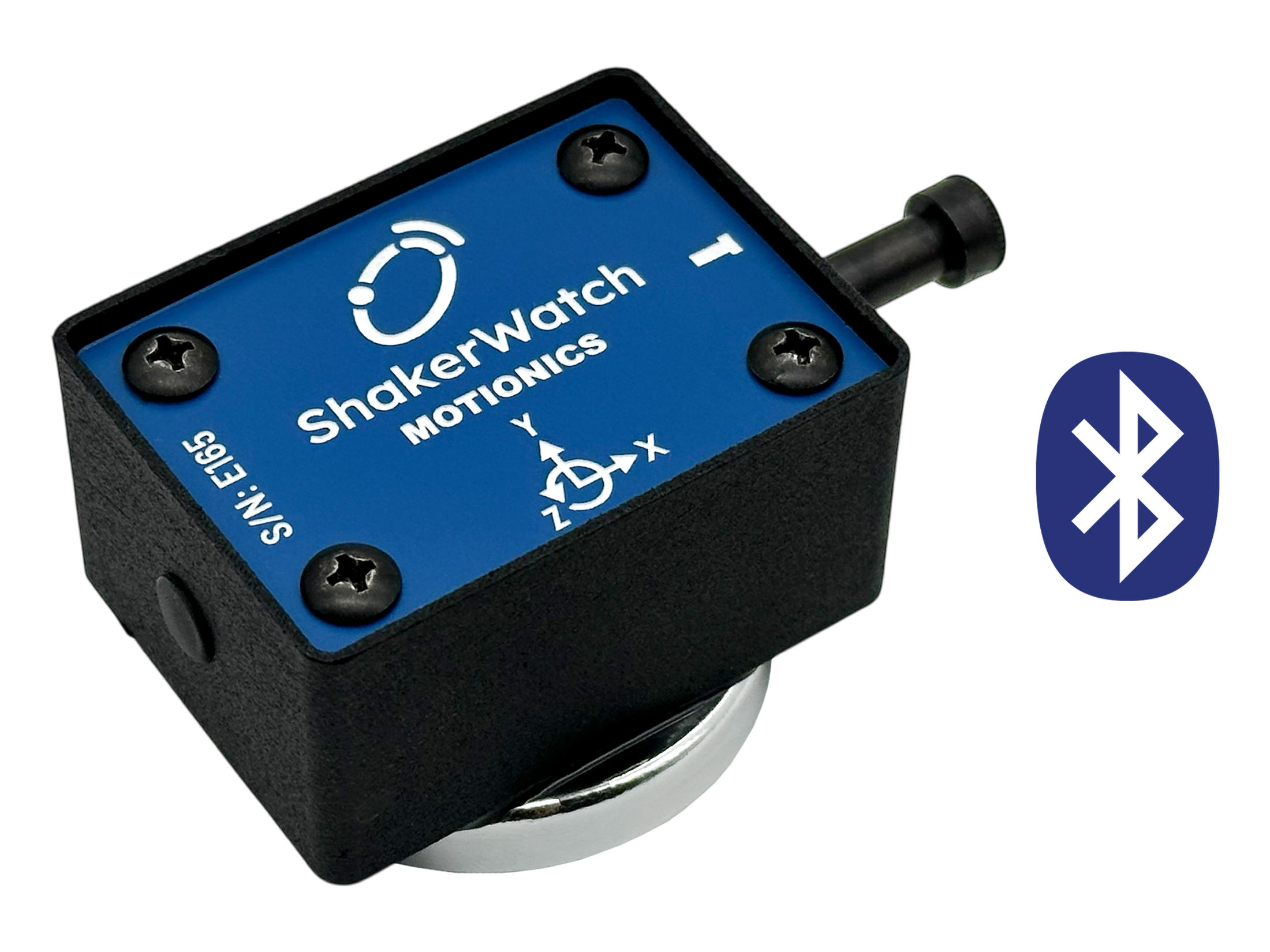

ShakerWatch Bluetooth-enabled tri-axial vibration sensor for wireless vibration analysis
  • ShakerWatch by Motionics is an advanced iPad-based vibration measurement and analysis tool for vibratory screens and shale shakers.
  • ShakerWatch features a tri-axial accelerometer with magnetic base that can be attached to any test point on a shaker to measure and analyze vibration motion in three directions.
  • Wireless Bluetooth connectivity enables safer and more efficient motion and vibration tests for shakers. Innovative wireless technology eliminates wiring and connectors to increase safety, ease of use, and durability.
  • The ShakerWatch iPad app performs X-Y orbit tests with auto-calculated RPM, G-force, stroke and angle. Bump test, side displacement and support structure vibration tests can be also be performed within the app.
  • These tests provide invaluable insights into the performance and condition of vibratory equipment, empowering users to make informed decisions swiftly without the need for a deep knowledge of vibration.

ShakerWatch: Wireless Vibration Analyzer for Shakers

  • ShakerWatch by Motionics is an advanced iPad-based vibration measurement and analysis tool for vibratory screens and shale shakers.
  • ShakerWatch features a tri-axial accelerometer with magnetic base that can be attached to any test point on a shaker to measure and analyze vibration motion in three directions.
  • Wireless Bluetooth connectivity enables safer and more efficient motion and vibration tests for shakers. Innovative wireless technology eliminates wiring and connectors to increase safety, ease of use, and durability.
  • The ShakerWatch iPad app performs X-Y orbit tests with auto-calculated RPM, G-force, stroke and angle. Bump test, side displacement and support structure vibration tests can be also be performed within the app. These tests provide invaluable insights into the performance and condition of vibratory equipment, empowering users to make informed decisions swiftly without the need for a deep knowledge of vibration.
  • WHY USE SHAKERWATCH?

COMPLETELY
WIRELESS

DURABLE &
COMPACT DESIGN

NO SET-UP
TIME NEEDED

INCREASE WOrKER
SAFETY

IMPROVE TEST
ACCURACY

EXPEDITE DATA
ANALYSIS

  • WHY USE SHAKERWATCH?

COMPLETELY
WIRELESS

DURABLE AND
COMPACT DESIGN

NO SET-UP
TIME NEEDED

INCREASE
WORKER SAFETY

IMPROVE
TEST ACCURACY

EXPEDITE DATA
ANALYSIS

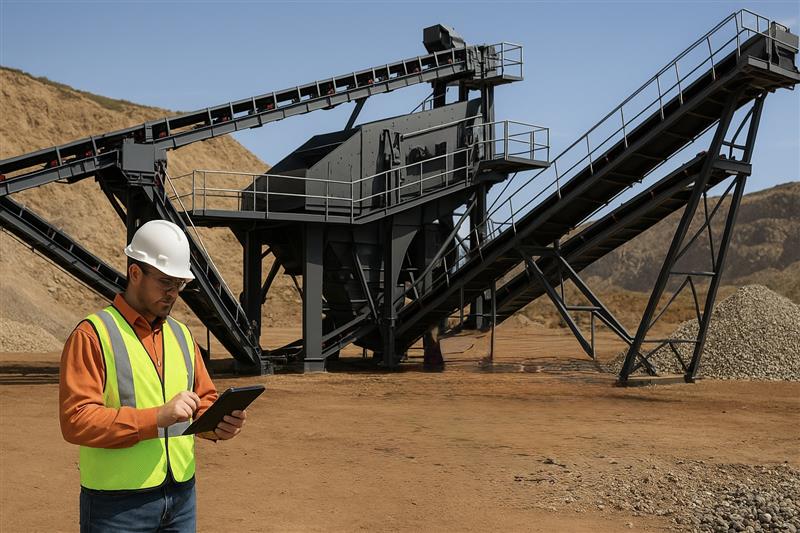

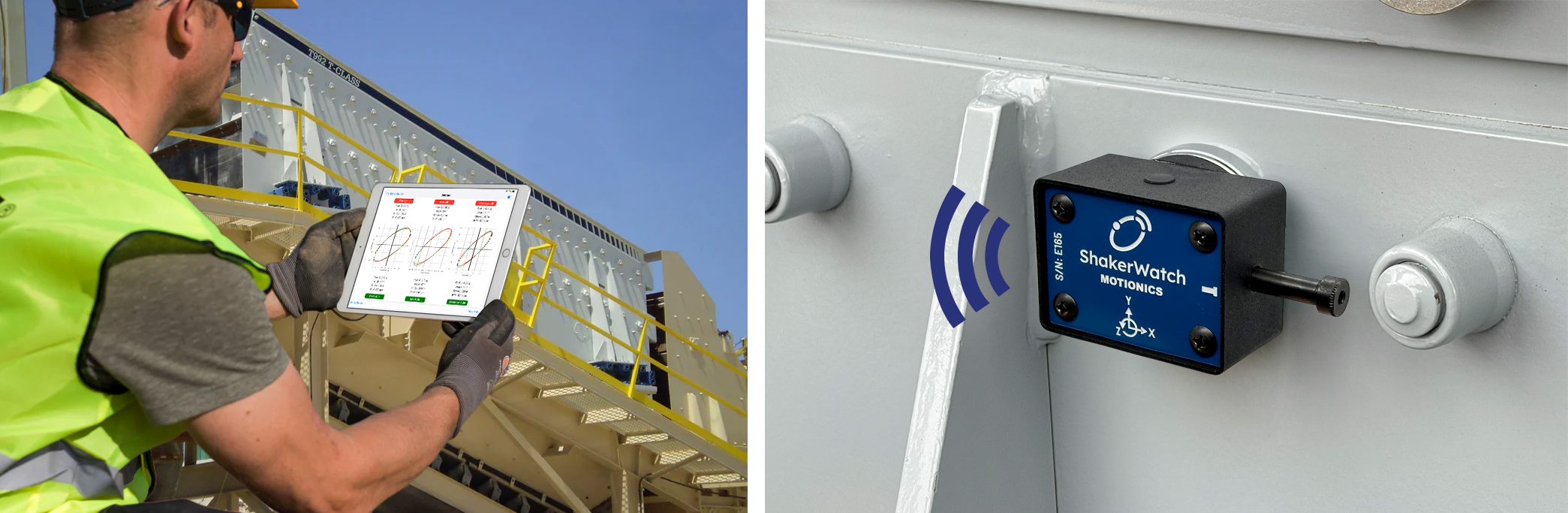

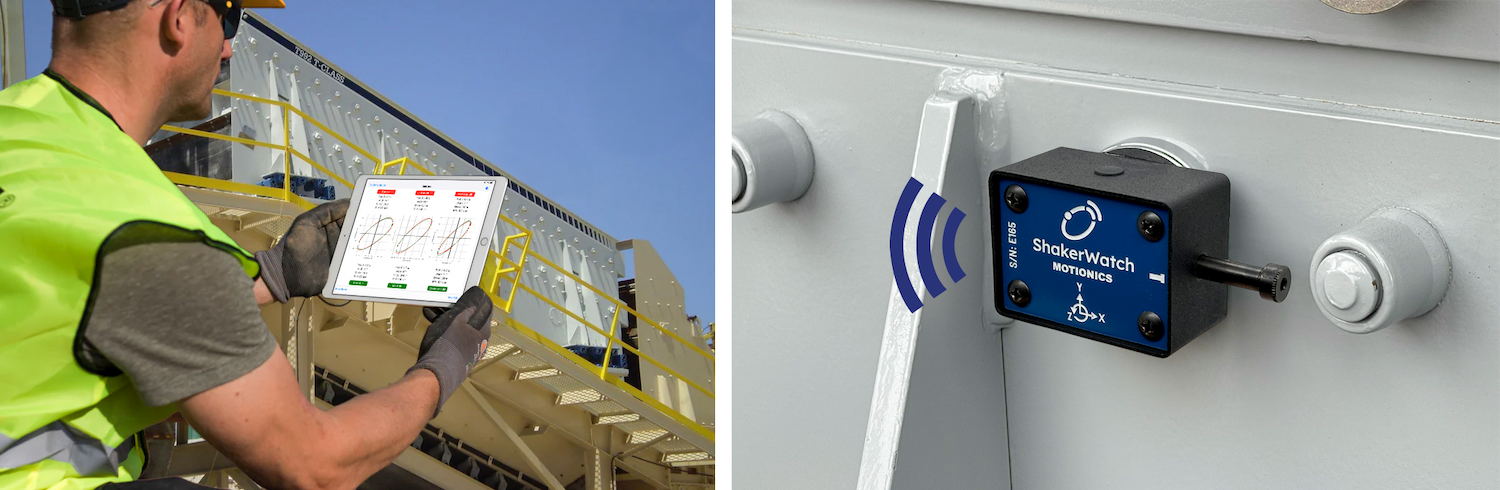

Technician using ShakerWatch app on iPad while wireless sensor measures shaker vibration in the field

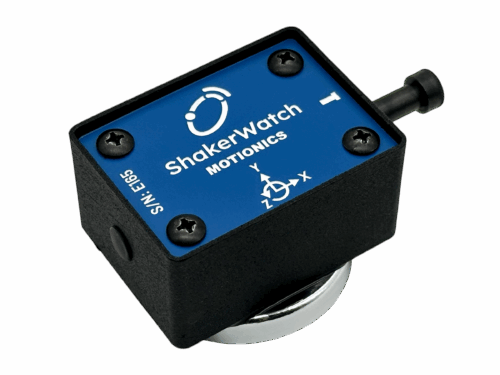

SHAKERWATCH SENSOR

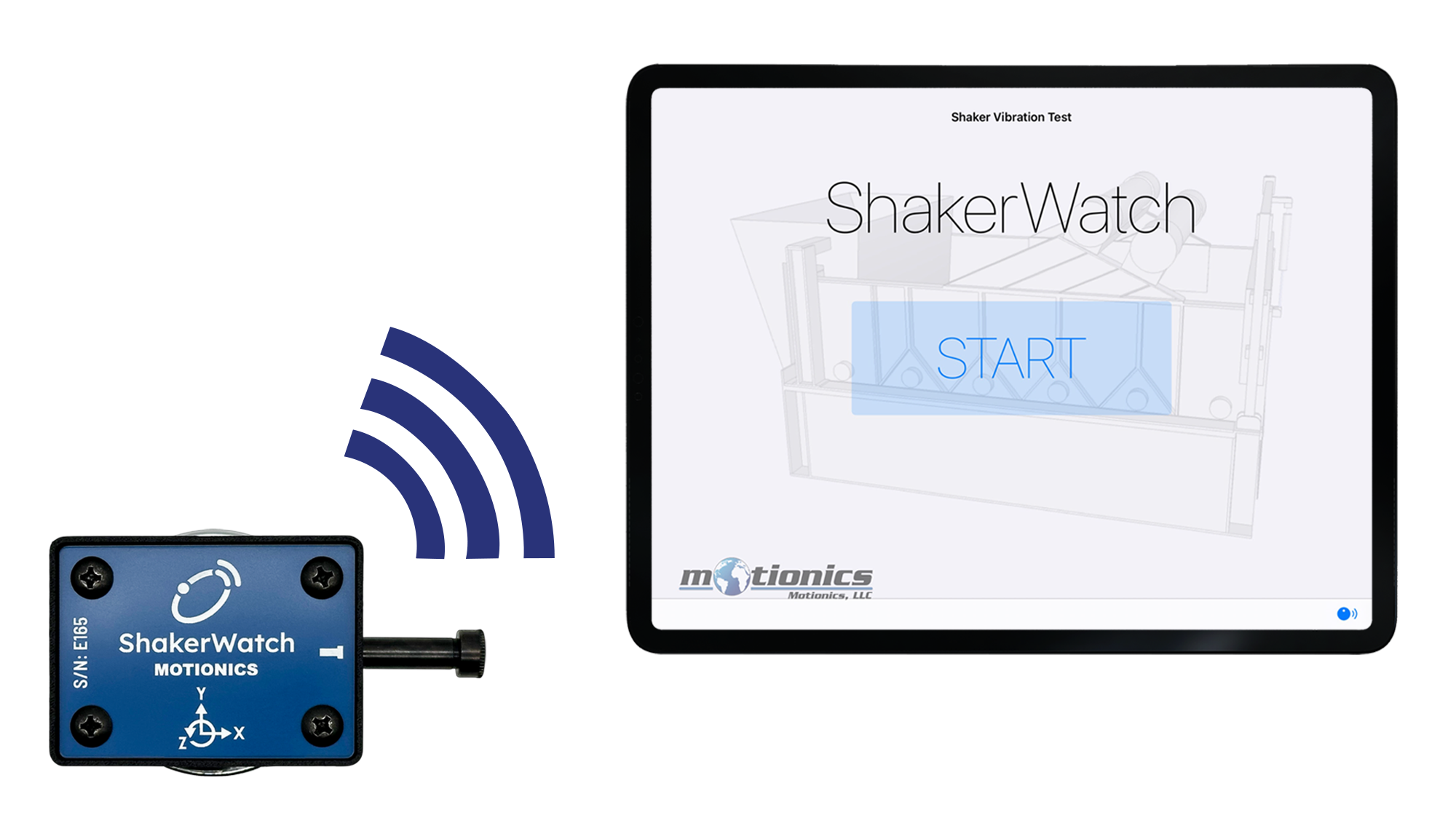

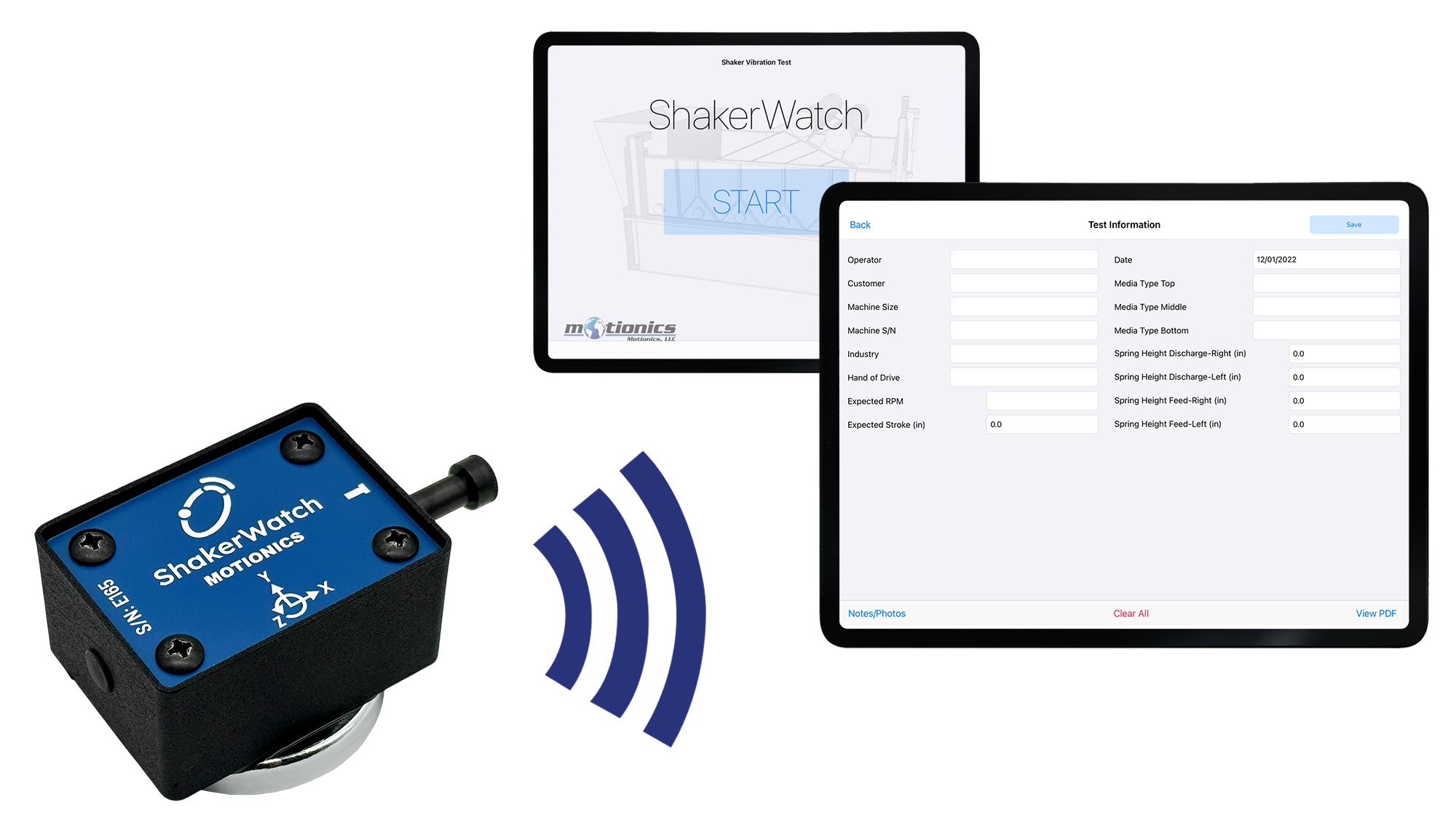

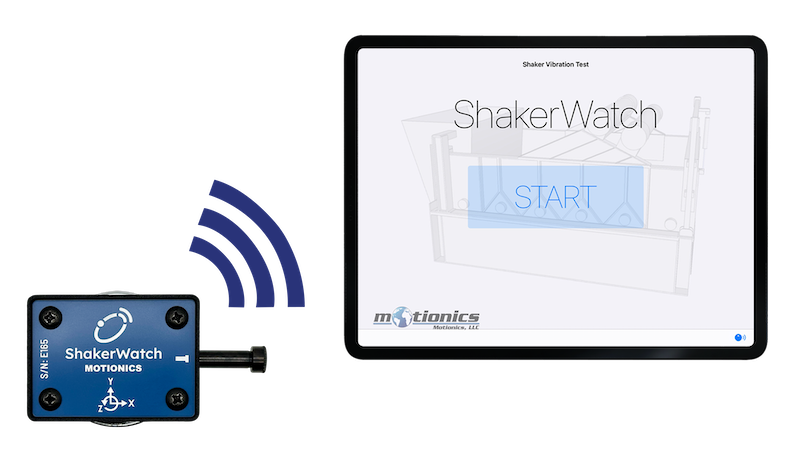

ShakerWatch wireless vibration sensor connected to iPad with start screen interface
  • BLUETOOTH CONNECTIVITY
  • The Bluetooth Low Energy (BLE) radio module enables fast pairing and data transmission between the accelerometer attached to the shaker machine and your iPad up to 98ft (30m) away.
  • TRI-AXIAL ACCELEROMETER
  • ShakerWatch features an onboard tri-axial accelerometer that measures vibration and motion in three directions simultaneously, streamlining data collection and enhancing testing efficiency.

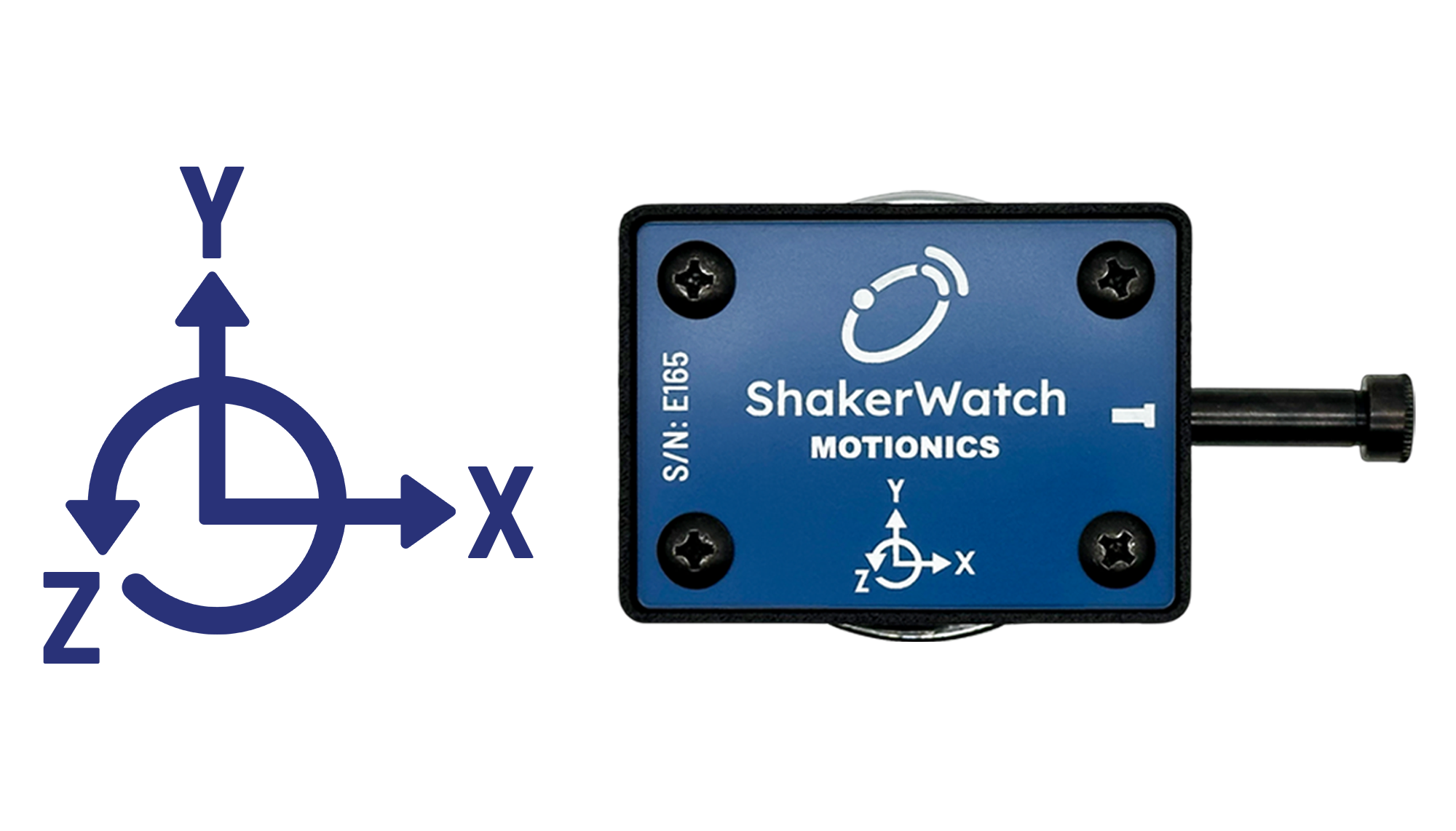

ShakerWatch triaxial accelerometer with XYZ axis orientation diagram

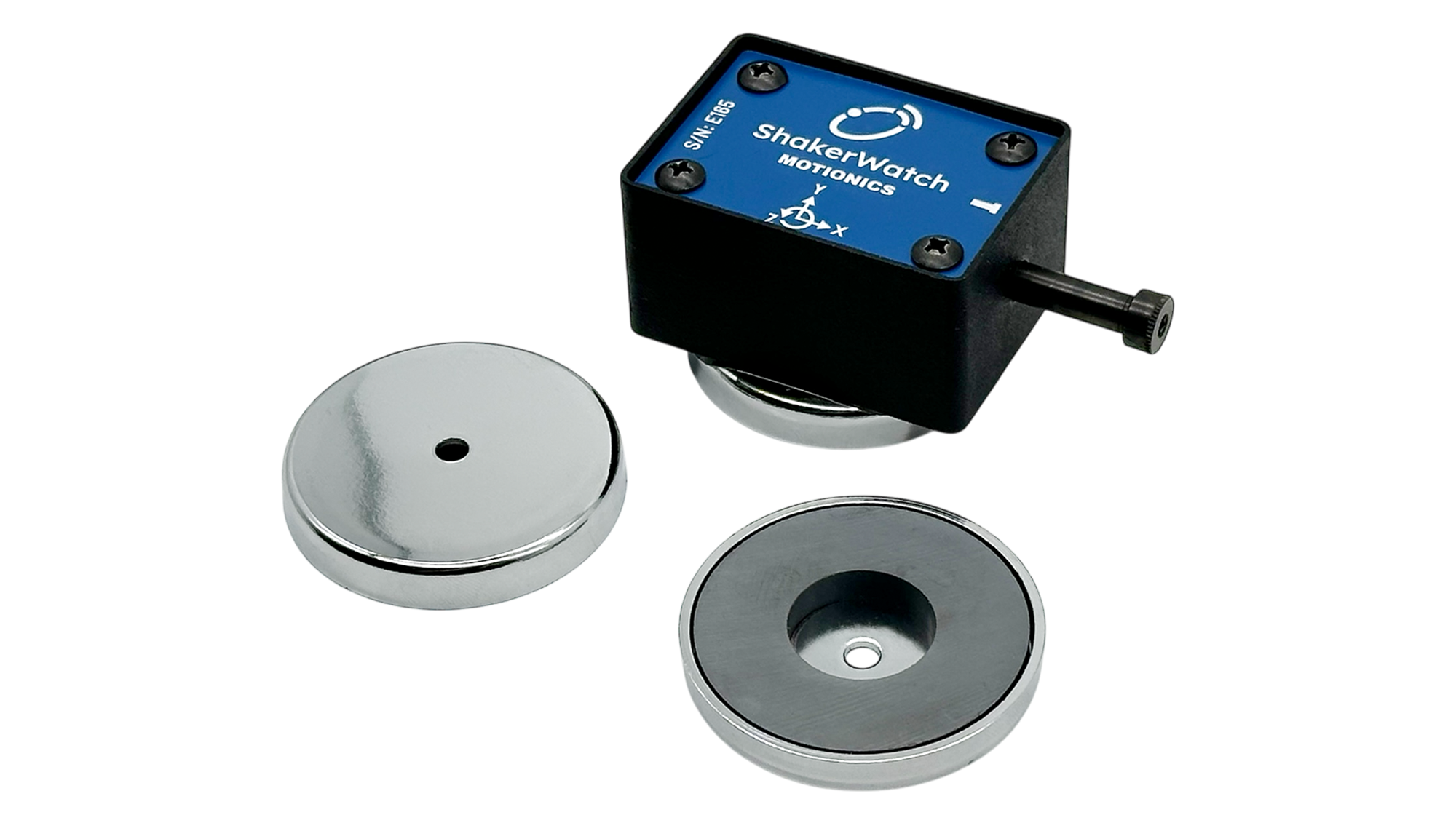

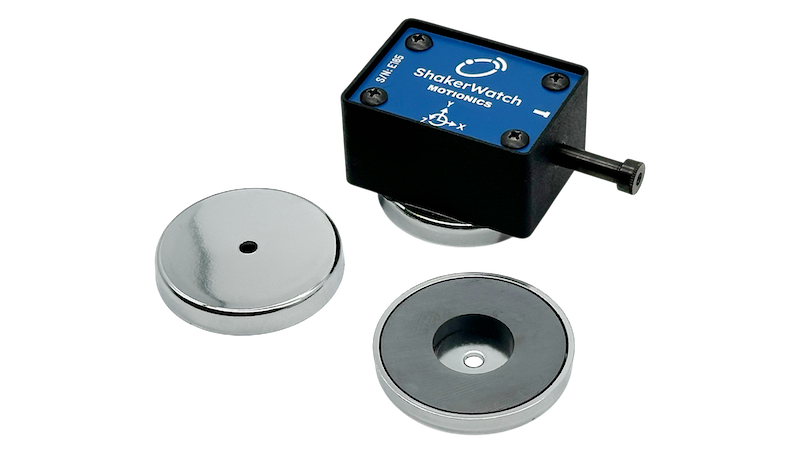

ShakerWatch wireless vibration sensor with interchangeable magnetic bases
  • HEAVY-DUTY MAGNETIC BASE
  • ShakerWatch features a high-strength magnetic base that reliably attaches the accelerometer to any test point on a shaker. The built-in handle grip on the side of the accelerometer enables for easy removal when the test is complete.
  • ADVANCED WATER & DUST RESISTANCE
  • ShakerWatch's IP66 rated wireless enclosure offers industrial-grade protection against dust and liquid ingress, enhancing its performance and reliability in a range of challenging environments.

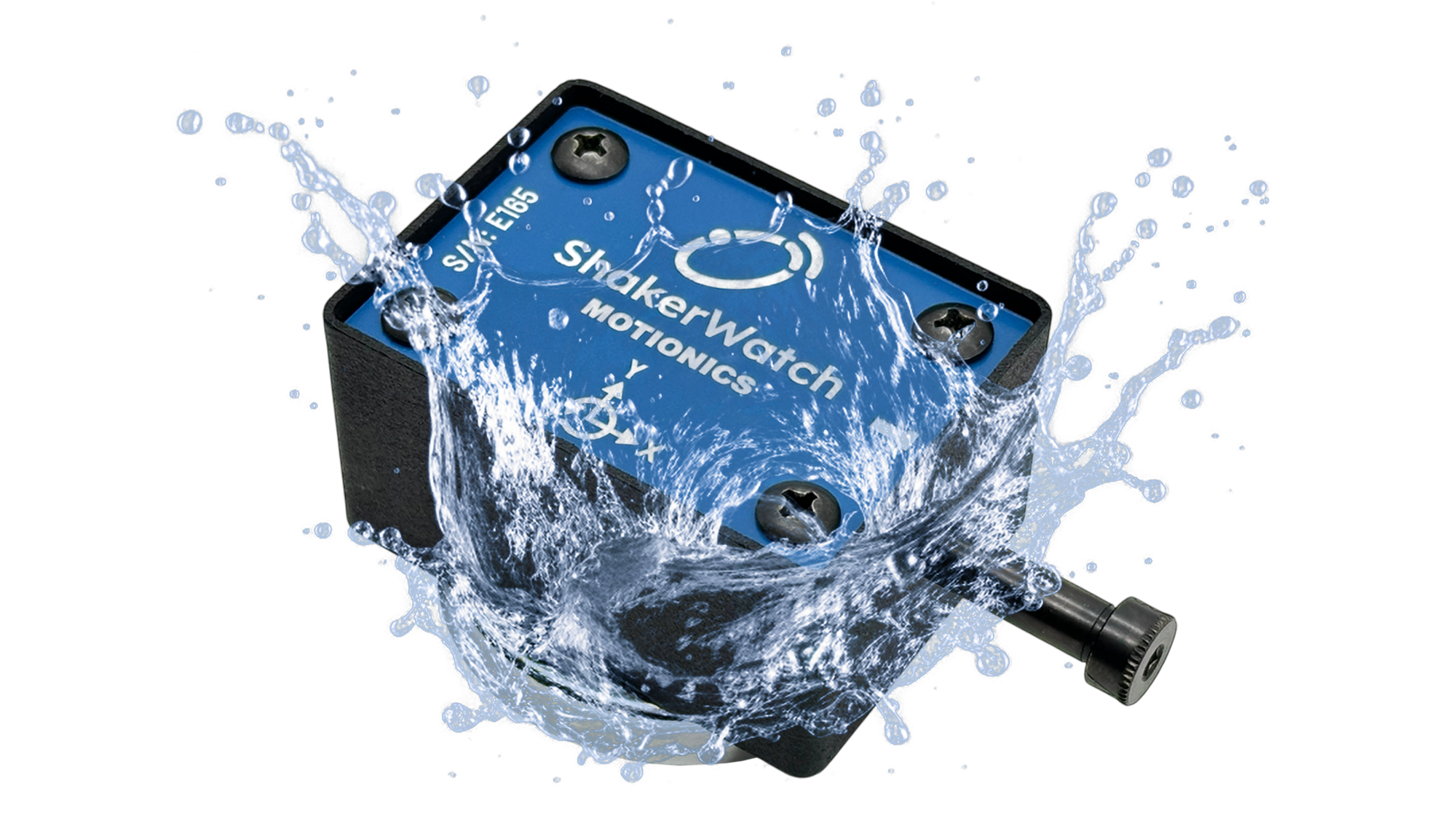

ShakerWatch IP67-rated waterproof and dust-proof wireless vibration sensor
ShakerWatch triaxial accelerometer with XYZ axis orientation diagram
  • TRI-AXIAL ACCELEROMETER
  • ShakerWatch features an onboard tri-axial accelerometer that measures vibration and motion in three directions simultaneously, streamlining data collection and enhancing testing efficiency.

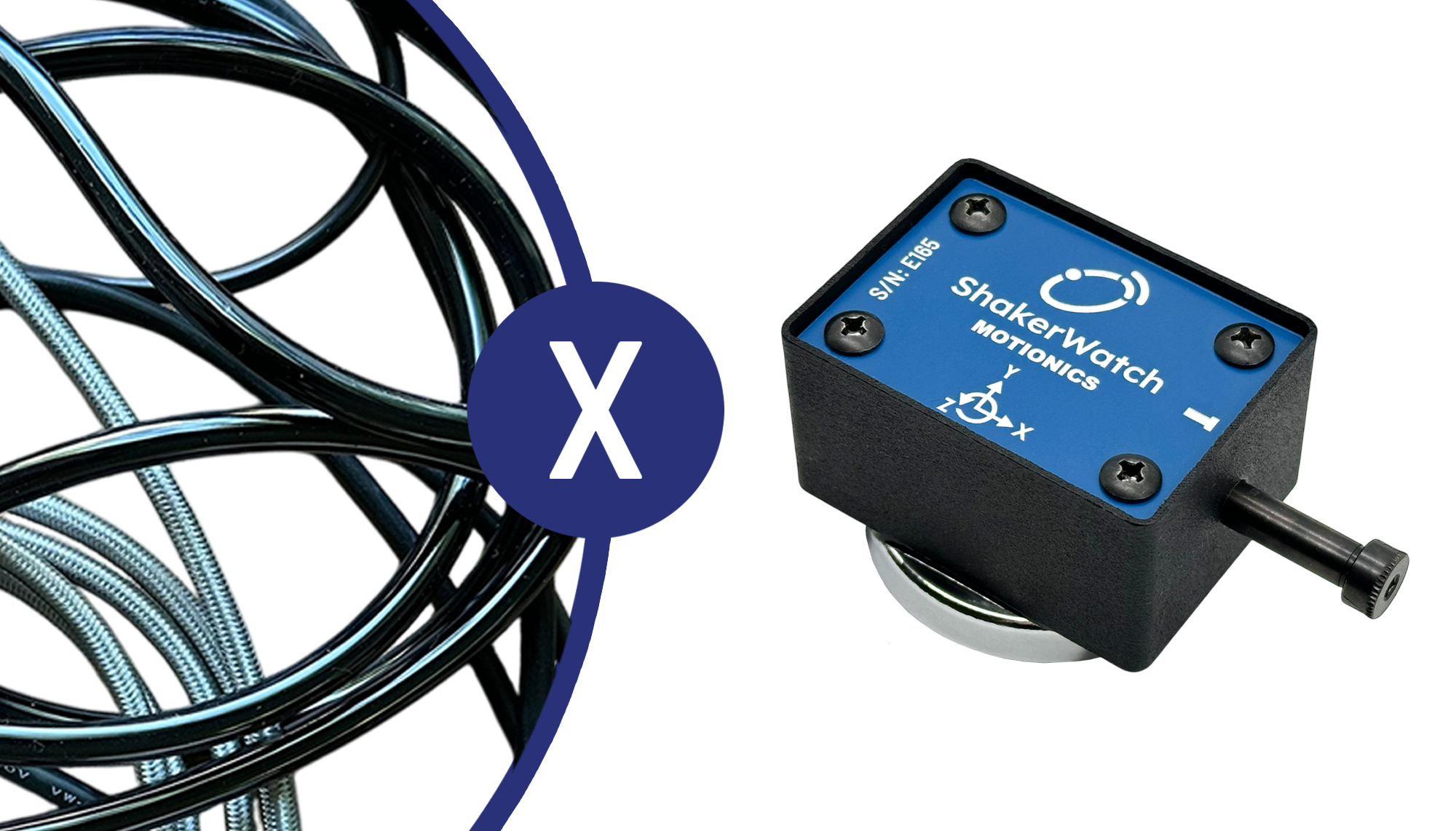

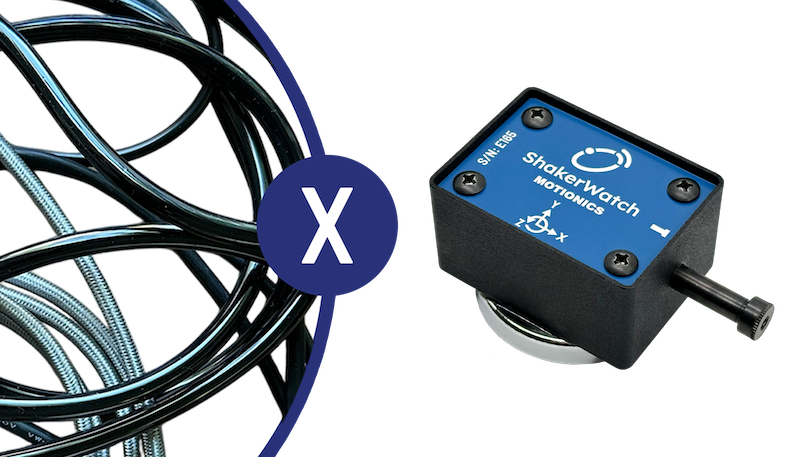

Wireless ShakerWatch sensor compared to cluttered wired vibration cables
  • COMPLETELY WIRELESS DESIGN
  • ShakerWatch's compact and durable design eliminates wires, connectors and other complications making this a safer, more efficient solution for vibration analysis tests. The kit also includes a protective carrying case for secure storage and transportation.
  • REPLACEABLE BATTERY
  • The ShakerWatch accelerometer uses Bluetooth Low Energy technology and operates on a single replaceable CR2477 coin battery. The battery lasts for up to 500 hours and is easy to replace.

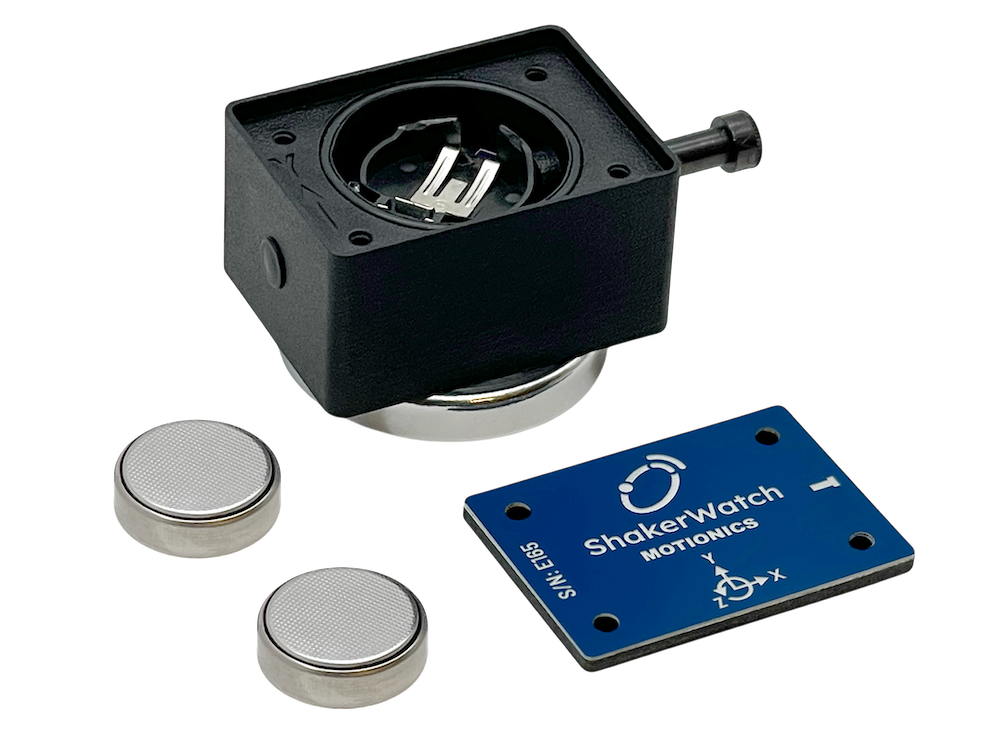

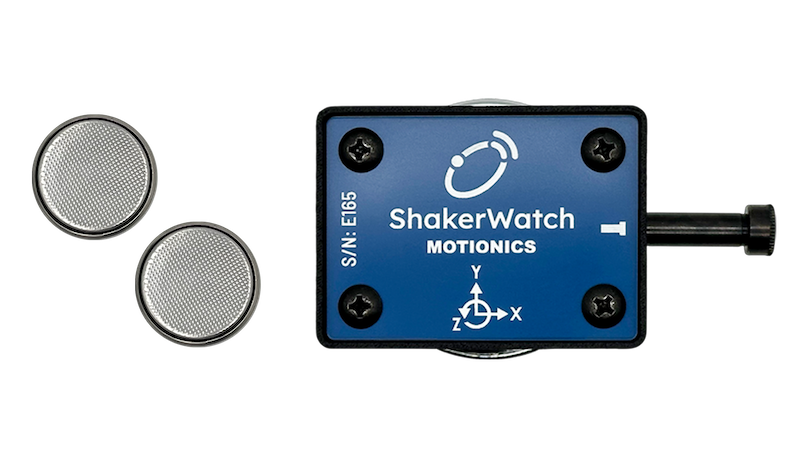

ShakerWatch wireless triaxial accelerometer with replaceable coin cell batteries
ShakerWatch wireless vibration sensor with interchangeable magnetic bases
  • HEAVY-DUTY MAGNETIC BASE
  • ShakerWatch features a high-strength magnetic base that reliably attaches the accelerometer to any test point on a shaker. The built-in handle grip on the side of the accelerometer enables for easy removal when the test is complete.
ShakerWatch IP67-rated waterproof and dust-proof wireless vibration sensor
  • ADVANCED WATER & DUST RESISTANCE
  • ShakerWatch's IP66 rated wireless enclosure offers industrial-grade protection against dust and liquid ingress, enhancing its performance and reliability in a range of challenging environments.
Wireless ShakerWatch sensor compared to cluttered wired vibration cables
  • COMPLETELY WIRELESS DESIGN
  • ShakerWatch's compact and durable design eliminates wires, connectors and other complications making this a safer, more efficient solution for vibration analysis tests. The kit also includes a protective carrying case for secure storage and transportation.
ShakerWatch wireless triaxial accelerometer with replaceable coin cell batteries
  • REPLACEABLE BATTERY
  • The ShakerWatch accelerometer uses Bluetooth Low Energy technology and operates on a single replaceable CR2477 coin battery. The battery lasts for up to 500 hours and is easy to replace.
  • DESIGNED FOR SAFETY, ACCURACY, EFFICIENCY AND COMPATIBILITY

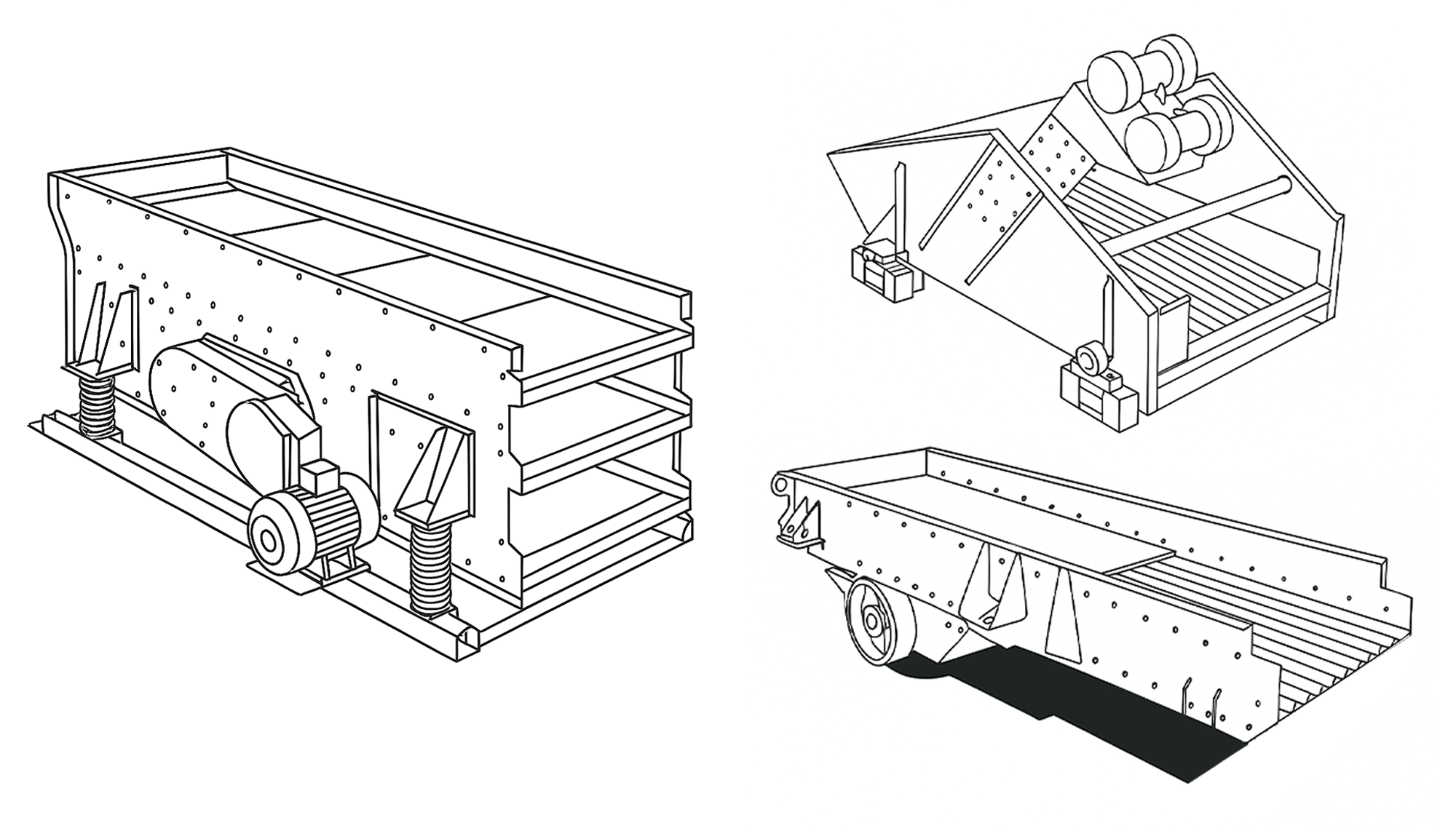

Line drawings of vibratory screens and shale shakers commonly used in industrial and oilfield applications
  • ShakerWatch can be used across various industries including aggregate, mining, oil and gas. The device is compatible with all types of shakers and brands including:
  • Superior Industries
  • Metso
  • Derrick
  • Schenck
  • Weir Minerals
  • DESIGNED FOR SAFETY, ACCURACY, EFFICIENCY AND COMPATIBILITY
  • ShakerWatch can be used across various industries including aggregate, mining, oil and gas. The device is compatible with all types of shakers and brands including:
  • Superior Industries
  • Metso
  • Derrick
  • Schenck
  • Weir Minerals
Line drawings of vibratory screens and shale shakers commonly used in industrial and oilfield applications

SHAKERWATCH KIT

  • Included in the Kit
  • ShakerWatch Wireless Accelerometer
  • CR2477 Coin Battery x2
  • User Guide
  • Protective ShakerWatch Case
  • Optional Extras
  • Extended 3 Year Warranty
  • iPad with Protective Case

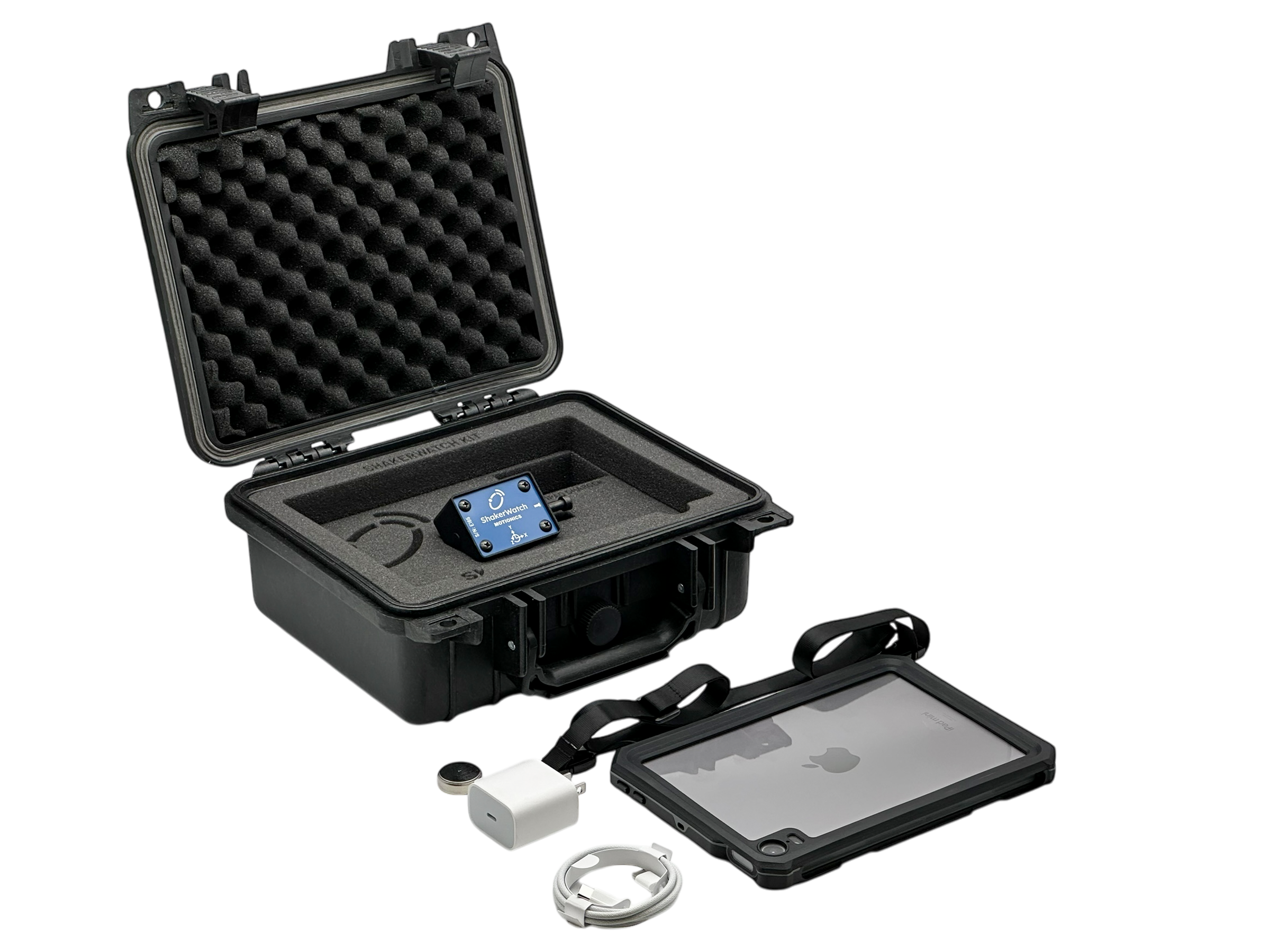

ShakerWatch vibration analysis kit with tri-axial sensor, iPad, charger, magnetic base, and protective case
  • Included in the Kit
  • ShakerWatch Wireless Accelerometer
  • CR2477 Coin Battery x2
  • User Guide
  • Protective ShakerWatch Case
  • Optional Extras
  • Extended 3 Year Warranty
  • iPad with Protective Case

Product Specification

  • Accelerometer Type
  • Tri-axial
  • Measurement Range
  • ±40g
  • Resonant Frequency
  • 5500Hz
  • Sampling Rate
  • 500-4000Hz (adjustable)
  • Data Block Size
  • 256 to 4096 samples (adjustable)
  • Connectivity
  • Bluetooth Low Energy
  • Data Transmission Range
  • 98ft (30m)
  • Weight
  • 0.380lb (172g)
  • Dimensions
  • 3.2" Width x 2.0" Depth x 1.6" Height (81mm W x 52mm D x 40mm H)
  • Working Temperature
  • -4 to 140°F (-20 to 60°C)
  • Dust/ Water Protection
  • IP66
  • Magnetic Base
  • Round 35lb (15.88kg)
  • Battery
  • Lithium CR2477 3VDC
  • Battery Life
  • 500hrs
  • Software Compatibility
  • iPadOS

SOFTWARE

ShakerWatch iPad app

  • ShakerWatch is an iPad application that connects to the ShakerWatch wireless tri-axial accelerometer and allows users to perform various tests for screen and shale shaker vibration measurement and analysis.
Download
  • Wireless Data Recording
  • Rotating Angle Indicator
  • Table Organized Results
  • Automatic Test Point Notifications
  • Automatic Vertical/ Horizontal Deflection Calculation
  • End Play Test Included
  • Test Report Generation
  • Tester Signature
  • Local Report Storage Manager
  • Email Reports
  • Wireless Print Reports
  • SHAKERWATCH SOFTWARE FEATURES
  • Wireless Tri-axial Vibration Signal Transmission
  • Orbit Test with Auto RPM, G-Force, Stroke and Angle Calculations
  • Color-Coded Side Displacement Tests
  • Attach Test Photos and Notes
  • Local Database and Test Record Manager
  • Automatic Sensor Tilt Angle Compensation
  • Interactive Vibration Waveform, FFT Spectrum, and X-Y Orbit Plot
  • Bump Test with Auto Major Frequency Detection
  • Auto PDF Test Report Generation
  • Export Test Data in Excel File and PDF Test Report
  • Wireless Tri-Axial Vibration Signal Transmission
  • Orbit Test with auto RPM, G-Force, Stroke and Angle Calculations
  • Color-Coded Side Displacement Tests
  • Attach Test Photos and Notes
  • Local Database and Test Record Manager
  • Automatic Sensor Tilt Angle Compensation
  • Interactive Vibration Waveform, FFT Spectrum, and X-Y Orbit Plot
  • Bump Test with Auto Major Frequency Detection
  • Auto PDF Test Report Generation
  • Export Test Data in Excel File and PDF Test Report

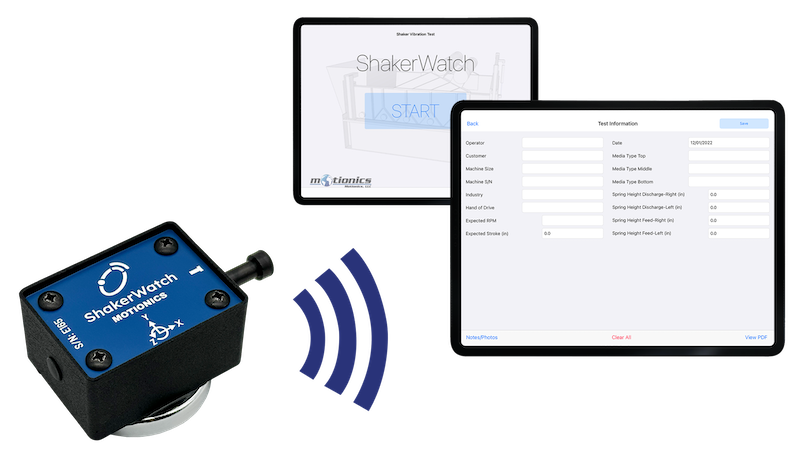

ShakerWatch wireless triaxial vibration analyzer with iPad app for shale shakers
  • WIRELESS DATA ACQUISITION & IPAD BASED ANALYZER
  • With ShakerWatch, vibration data is wirelessly transmitted from the accelerometer via Bluetooth and instantly analyzed on-site using an iPad.
ShakerWatch wireless triaxial vibration analyzer with iPad app for shale shakers
  • WIRELESS DATA ACQUISITION & IPAD BASED ANALYZER
  • With ShakerWatch, vibration data is wirelessly transmitted from the accelerometer via Bluetooth and instantly analyzed on-site using an iPad.
  • SMART ORBIT TEST
  • ShakerWatch simplifies orbit test with intelligent features:
  • • Automatic Sensor Angle Compensation: The system detects and compensates for sensor tilt angles automatically, streamlining setup and ensuring accurate measurements.
  • • Smart Data Analysis: Using vibration signals, the app automatically calculates key orbit test metrics such as machine RPM, G-force, stroke, and angle.
  • • Interactive Visualization: Users gain deeper insights with interactive vibration waveforms and FFT spectra generated for all test points.
  • • Enhanced Orbit Plots: X-Y (G Motion) orbit plots are intelligently smoothed for improved clarity, with overlaid plots from both sides of the same end to enable intuitive comparisons.

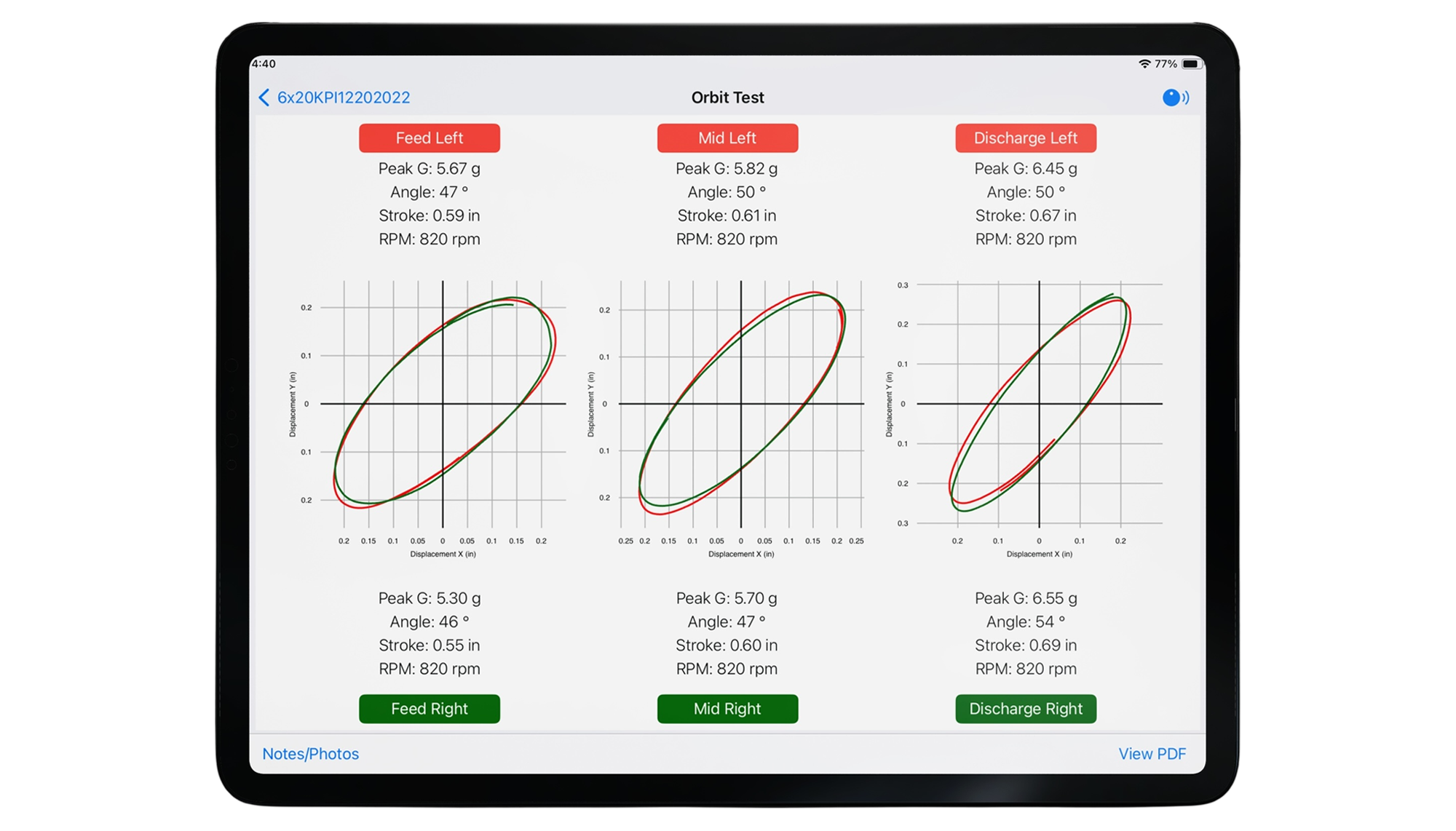

Orbit Test results in ShakerWatch app showing vibration stroke, angle, peak G-force, and RPM across shaker sections
Orbit Test results in ShakerWatch app showing vibration stroke, angle, peak G-force, and RPM across shaker sections
  • SMART ORBIT TEST
  • ShakerWatch simplifies orbit test with intelligent features:
  • • Automatic Sensor Angle Compensation: The system detects and compensates for sensor tilt angles automatically, streamlining setup and ensuring accurate measurements.
  • • Smart Data Analysis: Using vibration signals, the app automatically calculates key orbit test metrics such as machine RPM, G-force, stroke, and angle.
  • • Interactive Visualization: Users gain deeper insights with interactive vibration waveforms and FFT spectra generated for all test points.
  • • Enhanced Orbit Plots: X-Y (G Motion) orbit plots are intelligently smoothed for improved clarity, with overlaid plots from both sides of the same end to enable intuitive comparisons.

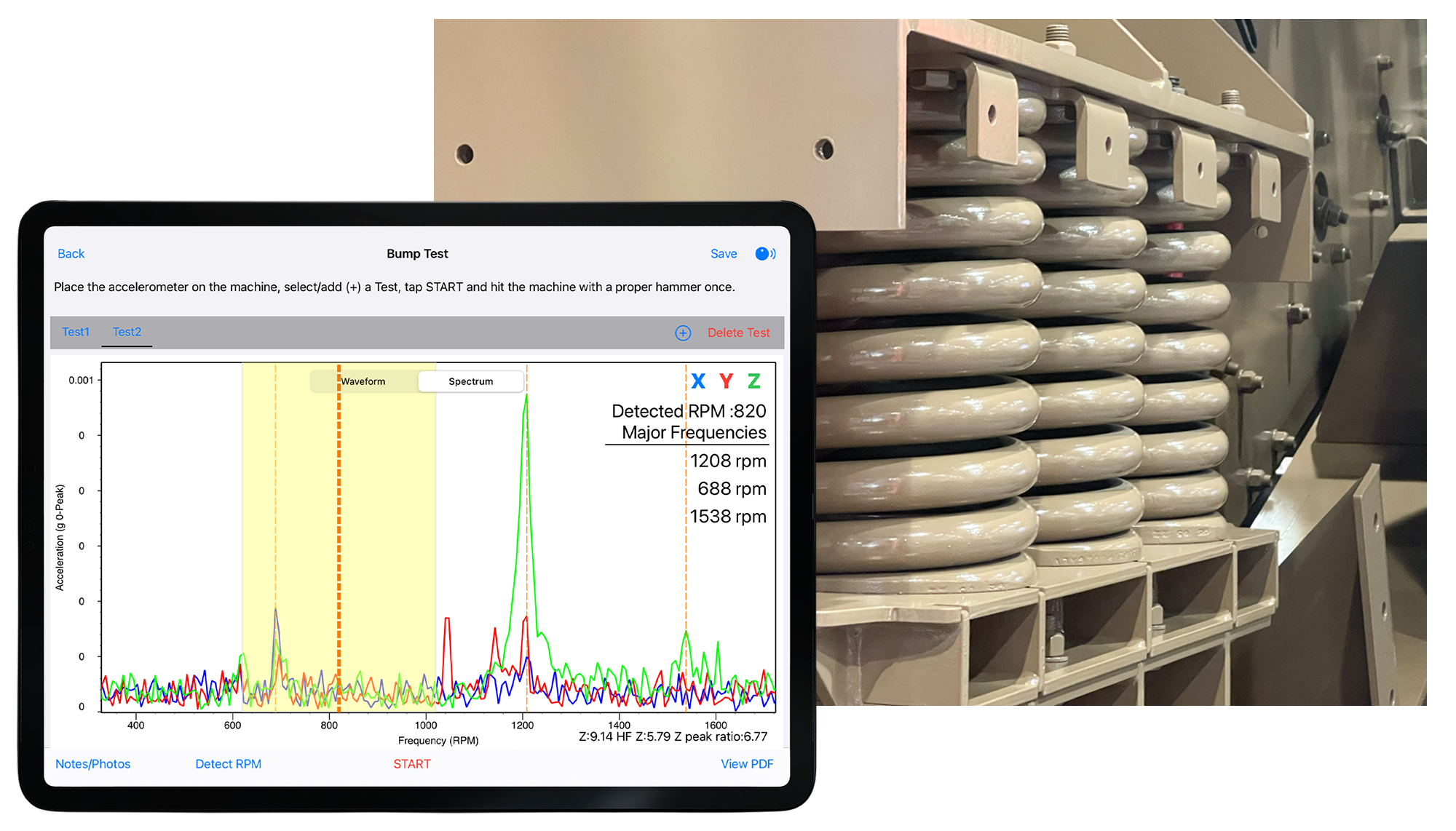

ShakerWatch performing bump test on a shale shaker with vibration spectrum and frequency data on iPad
  • BUMP TESTS
  • Users can perform multiple bump tests with ShakerWatch quickly, with the option to automatically detect or manually input the machine’s primary frequency. This frequency is highlighted on the FFT spectrum along with a user-defined safety band. The system also marks the machine's three major peaks, making it easy to see at a glance whether it's operating within a safe RPM range.
  • SIDE PLATE DISPLACEMENT TESTS
  • Nine test points on each side plate are designated for displacement testing. With a single tap, ShakerWatch calculates displacement values and compares them against user-defined thresholds. Results are color-coded for clear, instant interpretation.

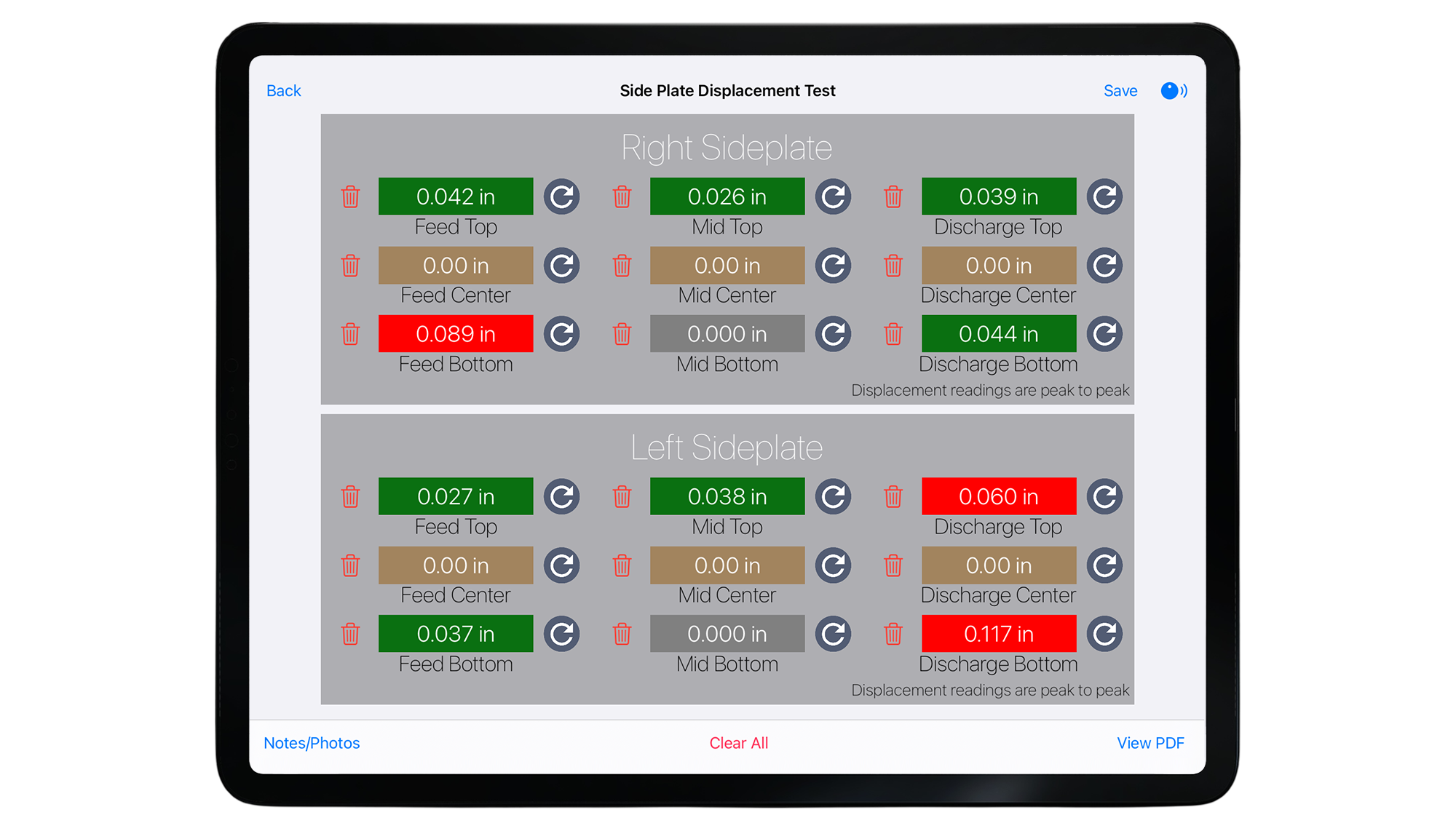

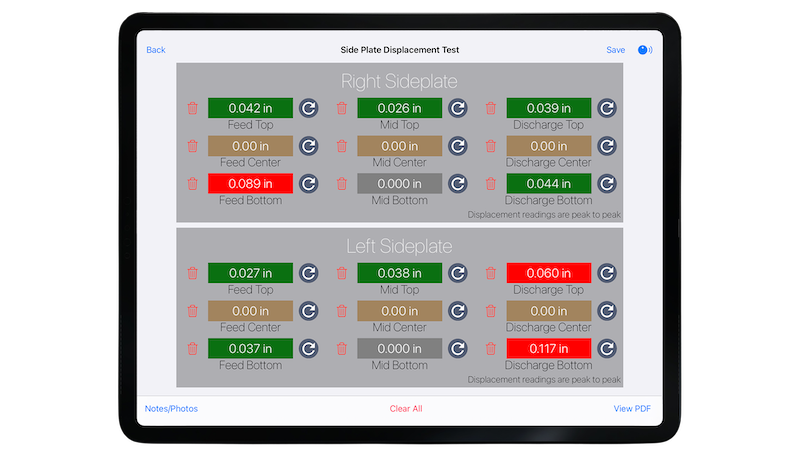

Side Plate Displacement Test results displayed in ShakerWatch app showing vibration data for right and left sideplates

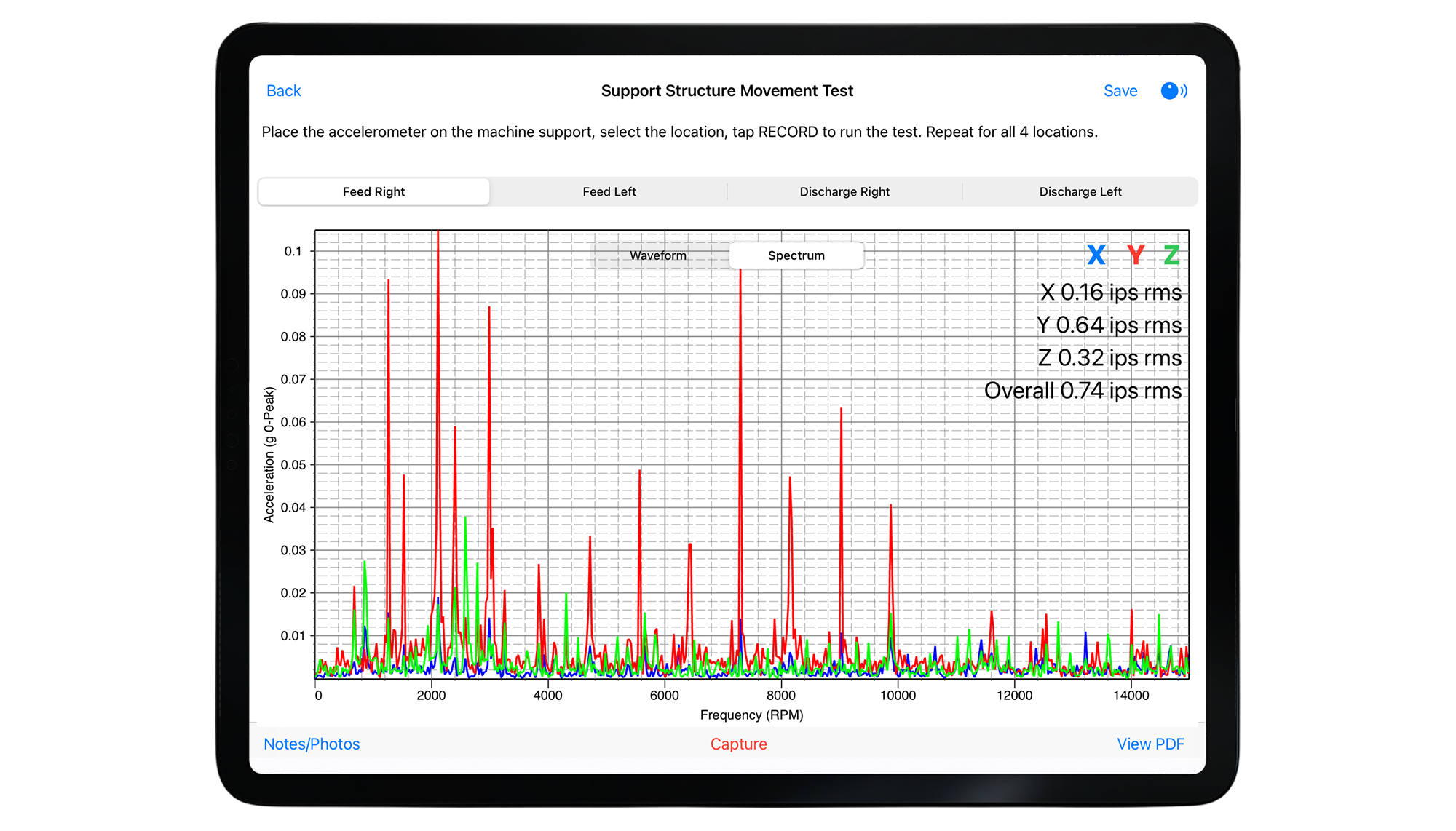

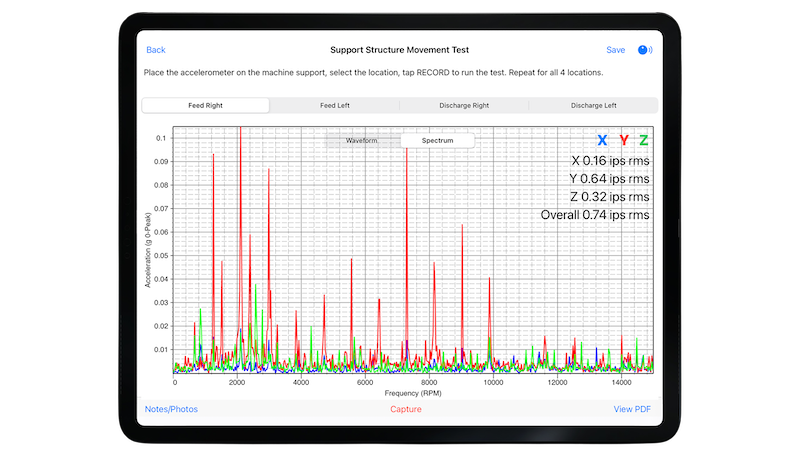

ShakerWatch iPad app showing support structure vibration spectrum test with X, Y, Z axis acceleration data
  • SUPPORT STRUCTURE MOVEMENT TESTS
  • ShakerWatch supports movement testing at four key points on the support structure. Results include vibration velocity spectra along with velocity RMS values for the X, Y, Z axes and overall measurement, providing a comprehensive view of structural behavior.
ShakerWatch performing bump test on a shale shaker with vibration spectrum and frequency data on iPad
  • BUMP TESTS
  • Users can perform multiple bump tests with ShakerWatch quickly, with the option to automatically detect or manually input the machine’s primary frequency. This frequency is highlighted on the FFT spectrum along with a user-defined safety band. The system also marks the machine's three major peaks, making it easy to see at a glance whether it's operating within a safe RPM range.
Side Plate Displacement Test results displayed in ShakerWatch app showing vibration data for right and left sideplates
  • SIDE PLATE DISPLACEMENT TESTS
  • Nine test points on each side plate are designated for displacement testing. With a single tap, ShakerWatch calculates displacement values and compares them against user-defined thresholds. Results are color-coded for clear, instant interpretation.
ShakerWatch iPad app showing support structure vibration spectrum test with X, Y, Z axis acceleration data
  • SUPPORT STRUCTURE MOVEMENT TESTS
  • ShakerWatch supports movement testing at four key points on the support structure. Results include vibration velocity spectra along with velocity RMS values for the X, Y, Z axes and overall measurement, providing a comprehensive view of structural behavior.
  • AUTO PDF TEST REPORTS
  • No more need for manual report generation. The ShakerWatch app automatically generates PDF test reports with just a tap of a button, streamlining the documentation process and saving valuable time and effort.

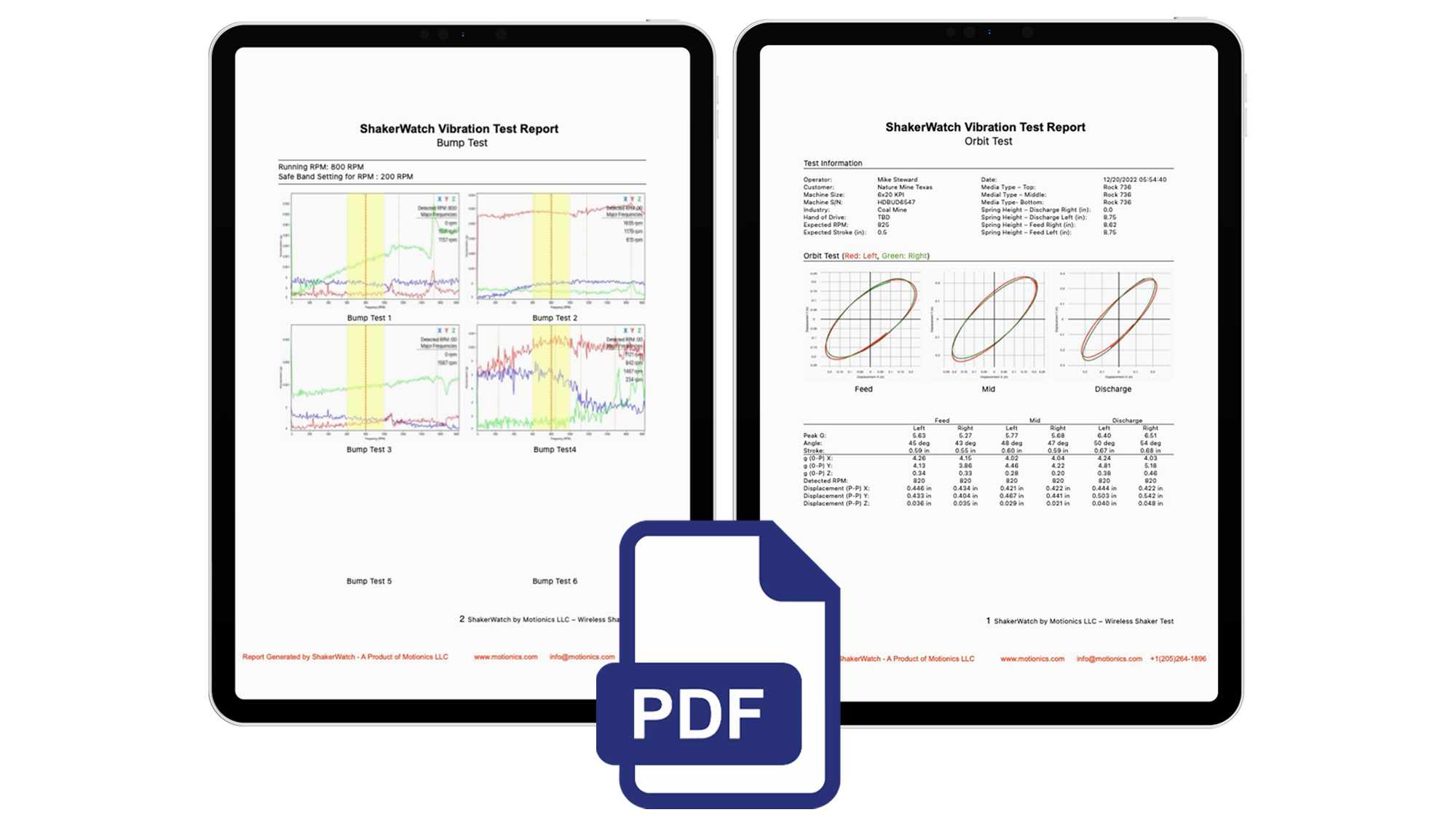

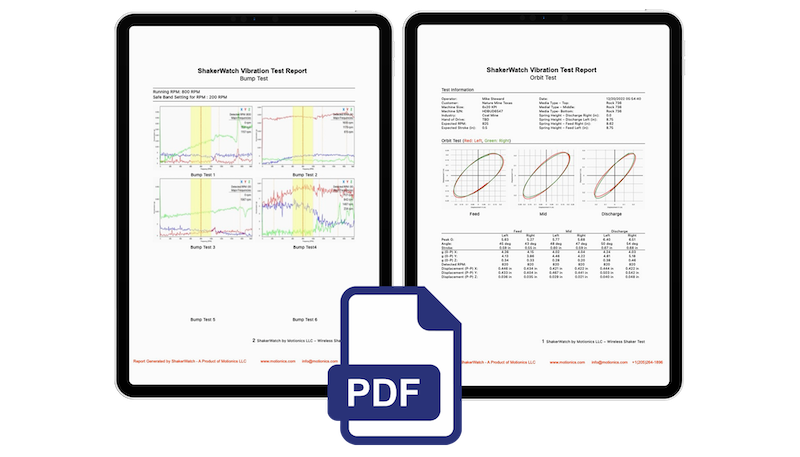

PDF reports generated by ShakerWatch for shaker vibration and orbit test analysis
PDF reports generated by ShakerWatch for shaker vibration and orbit test analysis
  • AUTO PDF TEST REPORTS
  • No more need for manual report generation. The ShakerWatch app automatically generates PDF test reports with just a tap of a button, streamlining the documentation process and saving valuable time and effort.

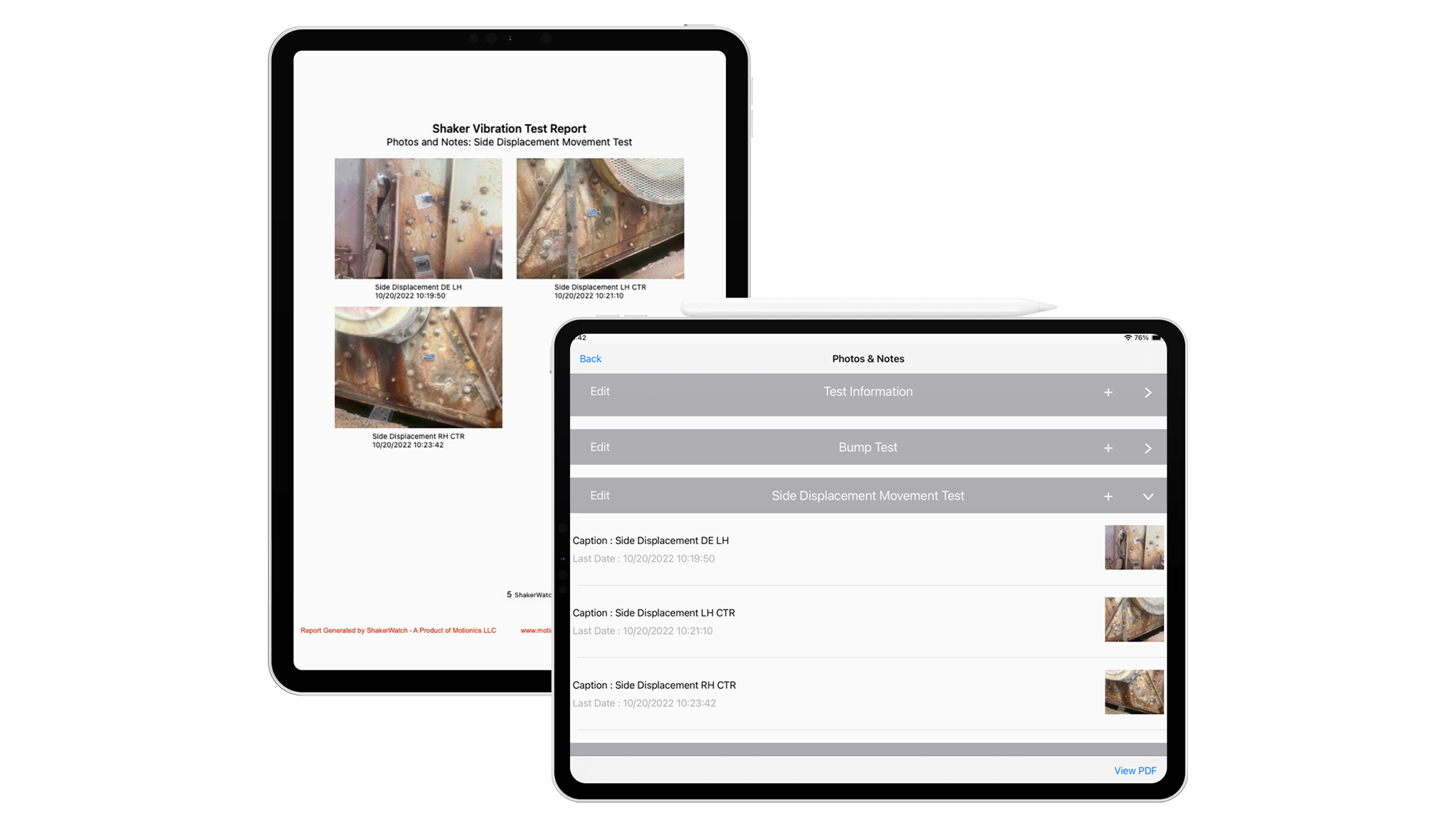

Photos and operator notes included in ShakerWatch vibration test report for side displacement measurements
  • ATTACH PHOTOS AND NOTES DURING THE TEST
  • Enhancing documentation, this feature allows users to attach photos and notes during testing, which are then incorporated into the automatically generated PDF report.
Photos and operator notes included in ShakerWatch vibration test report for side displacement measurements
  • ATTACH PHOTOS AND NOTES DURING THE TEST
  • Enhancing documentation, this feature allows users to attach photos and notes during testing, which are then incorporated into the automatically generated PDF report.

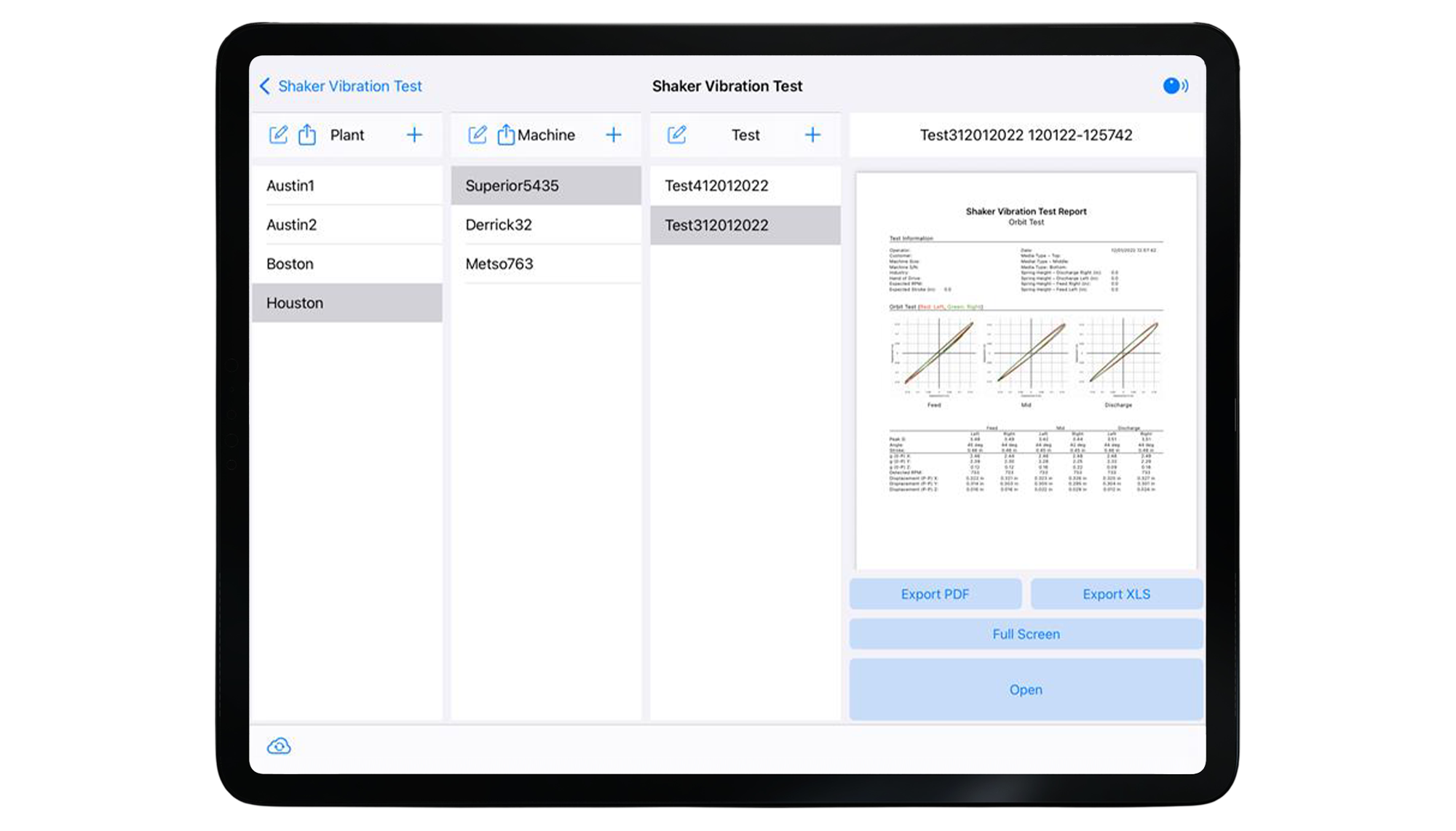

  • LOCAL RECORD MANAGER
  • Test records are saved locally on the iPad with the Plant - Machine - Test structure. Users can resume a test, review test report and share test data at any time.

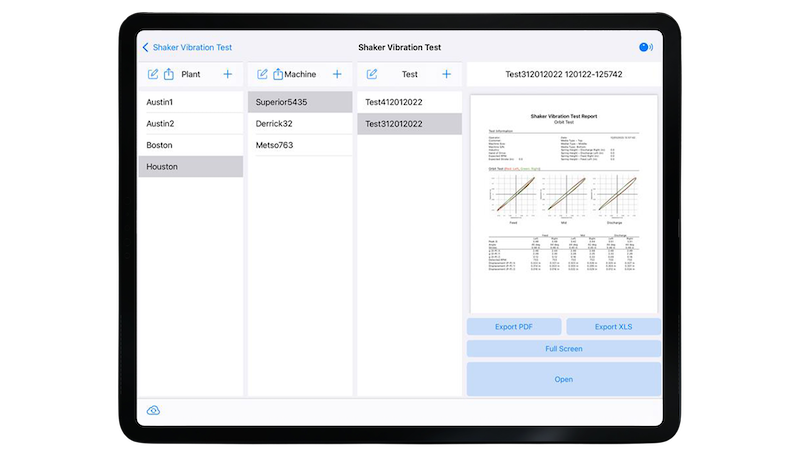

ShakerWatch iPad interface showing vibration test report organization and export options
ShakerWatch iPad interface showing vibration test report organization and export options
  • LOCAL RECORD MANAGER
  • Test records are saved locally on the iPad with the Plant - Machine - Test structure. Users can resume a test, review test report and share test data at any time.

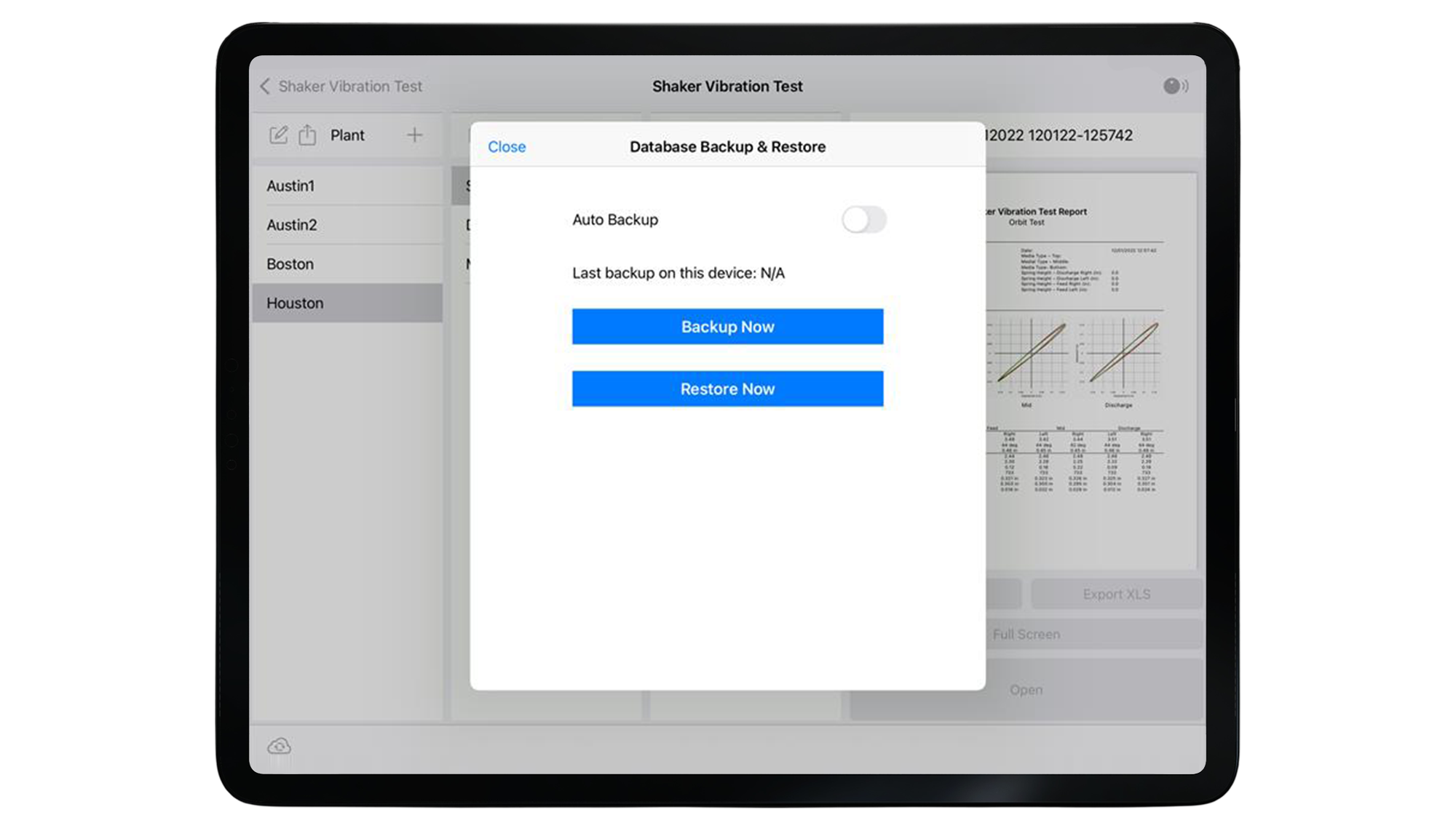

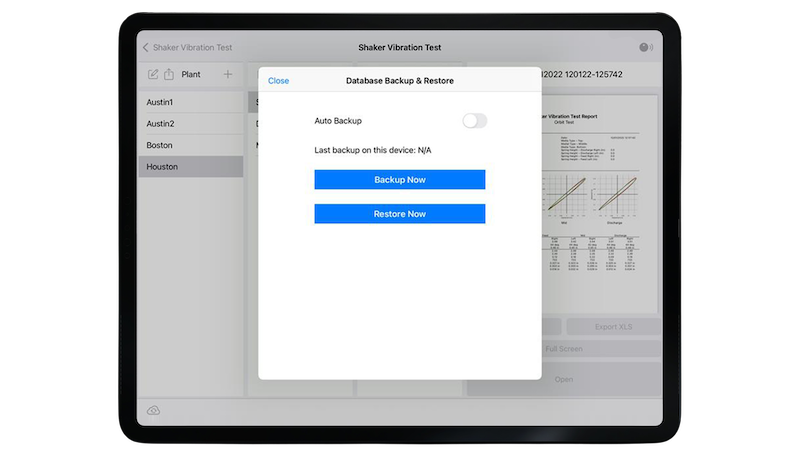

  • CLOUD BACKUP AND RESTORE
  • The entire test database can be backed up to iCloud either manually or automatically at user-defined intervals. These online backups can be used to restore data to any iPad linked to the same Apple ID.
  • CLOUD BACKUP AND STORAGE
  • The entire test database can be backed up to iCloud either manually or automatically at user-defined intervals. These online backups can be used to restore data to any iPad linked to the same Apple ID.
  • EXPORT AND SHARE TEST DATA
  • Individual test records can be shared as PDF reports or Excel files containing test data. Multiple records can also be exported together as a database file, organized by plant and machine, and imported onto another iPad.

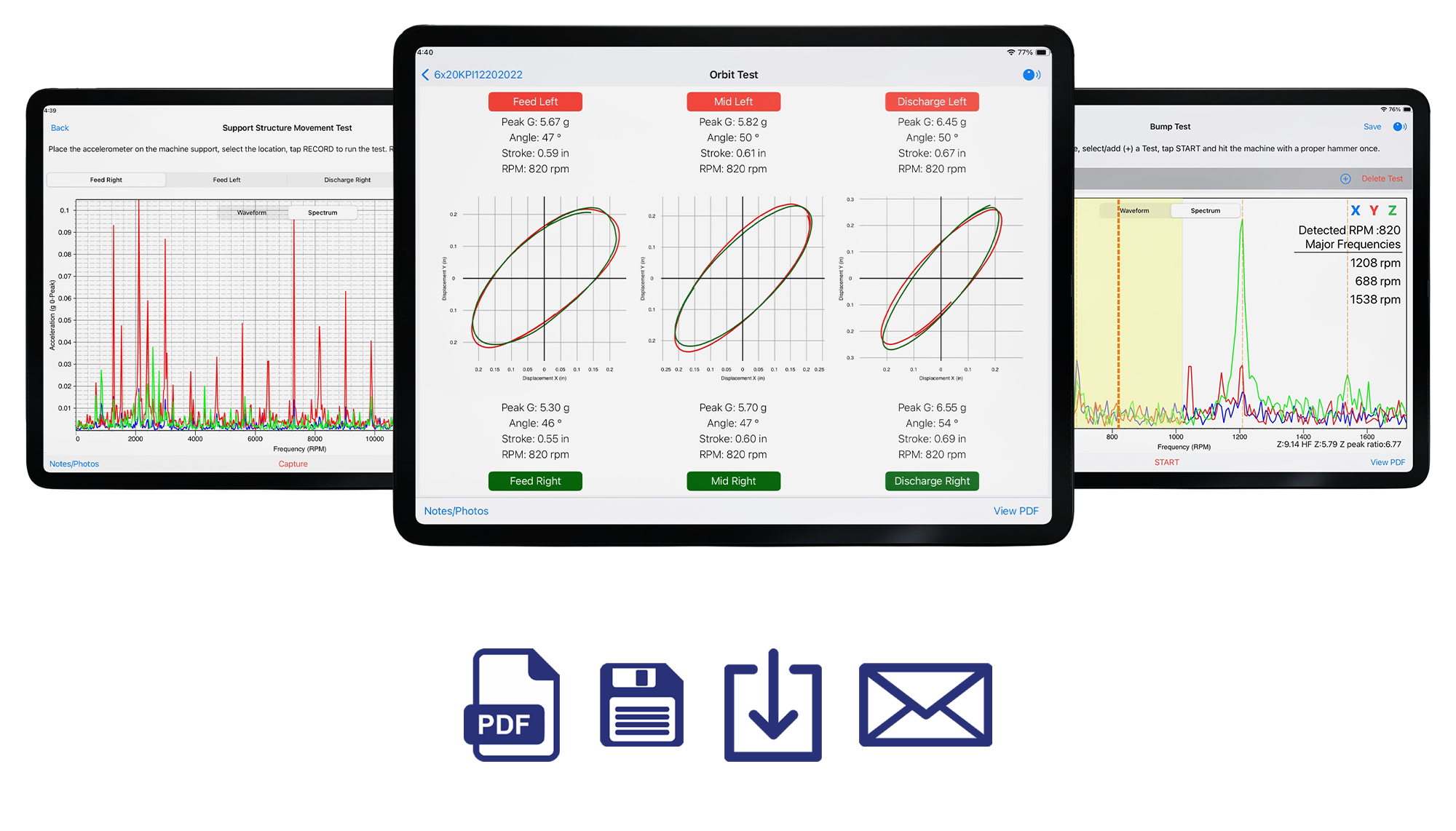

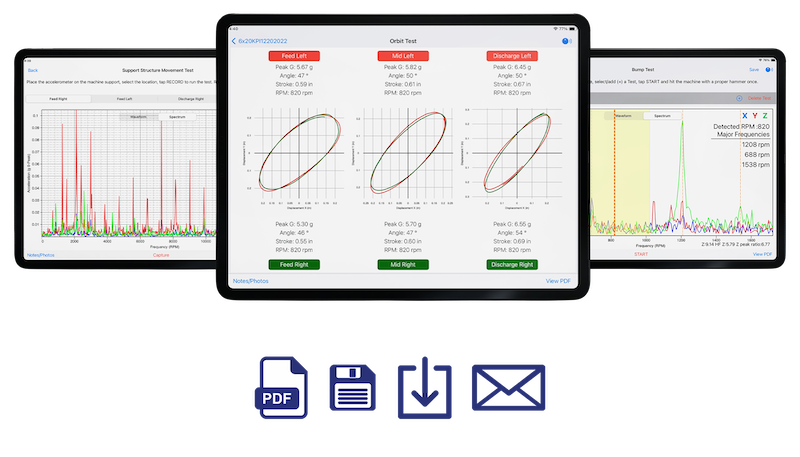

ShakerWatch iPad app showing orbit test, bump test, support vibration data with export options
ShakerWatch iPad app showing orbit test, bump test, support vibration data with export options
  • EXPORT AND SHARE TEST DATA
  • Individual test records can be shared as PDF reports or Excel files containing test data. Multiple records can also be exported together as a database file, organized by plant and machine, and imported onto another iPad.

PRODUCT Support Videos

CrankSense: Wireless Crankshaft Deflection Test Kit
PRODUCT OVERVIEW & DEMO
CrankSense: Wireless Crankshaft Deflection Test Kit
REPLACING THE BATTERY
Explore 100+ similar tutorials and product support videos on the Motionics YouTube channel.
WATCH NOW

FAQs

  • PRODUCT

The device works constantly in a low energy mode and is always ready to connect to your iPad. This means there is no need to turn the sensor on/off every time you use it.

ShakerWatch is powered by a CR2477 battery.

ShakerWatch’s battery life is 500hrs including standby time. If the device is not being used for more than a week, we recommend taking out the CR2477 battery.

Loose the 4 screws on top of ShakerWatch and take off the cover, you will have access to the battery compartment. Replace the battery, reinstall the cover and tighten the screws.

Click here to watch a demo video.

ShakerWatch is pre-calibrated before being shipped for an order. Calibration factors are stored in the internal memory of the device.

We do recommend calibrating the device every 12 months.

If you need to calibrate a ShakerWatch accelerometer, please contact us at info@motionics.com.

  • SOFTWARE

The ShakerWatch app is only available to download on iPad.

The ShakerWatch app is a paid app but is already included in the kit purchase.

Please refer to the enclosed user guide in the kit for app download and installation.

Make sure you enter a low pass filter cutoff RPM value in the test setting page. You can start with a number that is a few hundred RPM higher than the machine running speed. Feel free to adjust the value to see which number gives you the better result.

In ShakerWatch app, RPM is calculated as the 1x peak frequency from vibration signal. Due to frequency resolution, there might be a minor difference between the calculated RPM and the actual set RPM. You may adjust ShakerWatch sampling frequency and data length to change its frequency resolution and compare the results.

  • WARRANTY

ShakerWatch’s Limited Warranty is included for free with purchase and provides 1 year of coverage for all defects in material and workmanship from the date of shipment to buyer. For more information visit: www.motionics.com/warranty.

With ShakerWatch’s Extended Warranty, your coverage will extend to 3 years from original shipment date of the device and adds coverage for up to two accidental damages (each subject to a service fee plus applicable tax). The warranty prices and service fees vary upon each individual device. For full details visit www.motionics.com/warranty.

  • FURTHER SUPPORT

Make sure there is no nearby iPad or another app on your iPad connecting to ShakerWatch. You may also take out ShakerWatch battery and reinstall it. If the issue persists, please contact us at info@motionics.com.

We are able to offer repairs for damage and can provide spare parts. Please contact us for more details.

If you require further technical support, please click here.

You can get in touch with us directly by using our contact page.

  • SOFTWARE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

  • WARRANTY

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

WHAT IS INCLUDED IN THE STANDARD WARRANTY?
Answer goes here...
WHAT IS INCLUDED IN THE EXTENDED WARRANTY?
Answer goes here...

PRODUCT DOCUMENTS

  • Brochure
  • User Guide
  • Spec Sheet
  • Sample Report
  • Sample Data
  • Full Motionics Product Catalog

PRODUCT DOCUMENTS

  • Brochure
  • User Guide
  • Spec Sheet
  • Sample Report
  • Sample Data
  • Full Motionics Product Catalog
  • BUY SHAKERWATCH

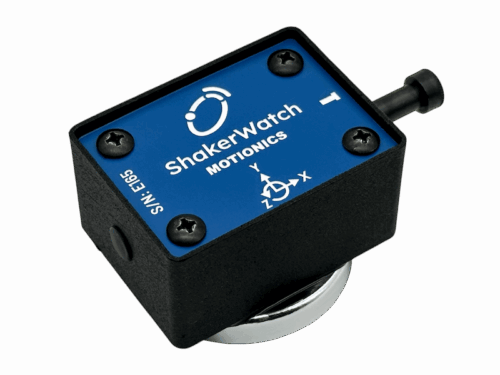

Close-up of ShakerWatch wireless triaxial vibration sensor for shale shakers and screens

ShakerWatch: Wireless Vibration Analyzer for Shakers

ShakerWatch by Motionics is an advanced iPad-based vibration measurement and analysis tool for vibratory screens and shale shakers.​

To request a quote, click the button below.

CONTACT FOR QUOTE

You may also like...

Wireless Rotor Runout Kit

The Wireless Rotor Runout Kit from Motionics is a novel tool for rotor runout measurement. It consists of a Bluetooth dial indicator, a Bluetooth angle sensor and an iPad application.

LEARN MORE

Wireless Hydraulic Pressure Test Kit

The Wireless Hydraulic Pressure Test Kit from Motionics is your solution for safe, efficient pressure testing with heavy machinery.

LEARN MORE

Wireless Pile Load Test Kit

The Wireless Pile Load Test Kit measures pile deflection under different load conditions on an iPad/ PC with Bluetooth dial indicators and either a Bluetooth pressure sensor or a wireless force gauge.

LEARN MORE
© Copyright 2025 | Motionics, LLC | All rights reserved.
ShakerWatch logo – wireless vibration analyzer for shale shakers
  • (205) 264-1896
